Chapter 5. GUI Operation

Desktop Scaling

The CM0264’s innovative desktop scaling feature offers the options of a full-

screen or sizable (by ratio) matrix window. By default, the matrix windows

maintain the original resolution of the computer screens and appear on the full

screen desktop in a 1:1 aspect ratio. To match the resolution of the matrix

windows to that of the current full screen computer display, click on the

Desktop Scaling icon in the GUI main page toolbar (see The Toolbar, page 37).

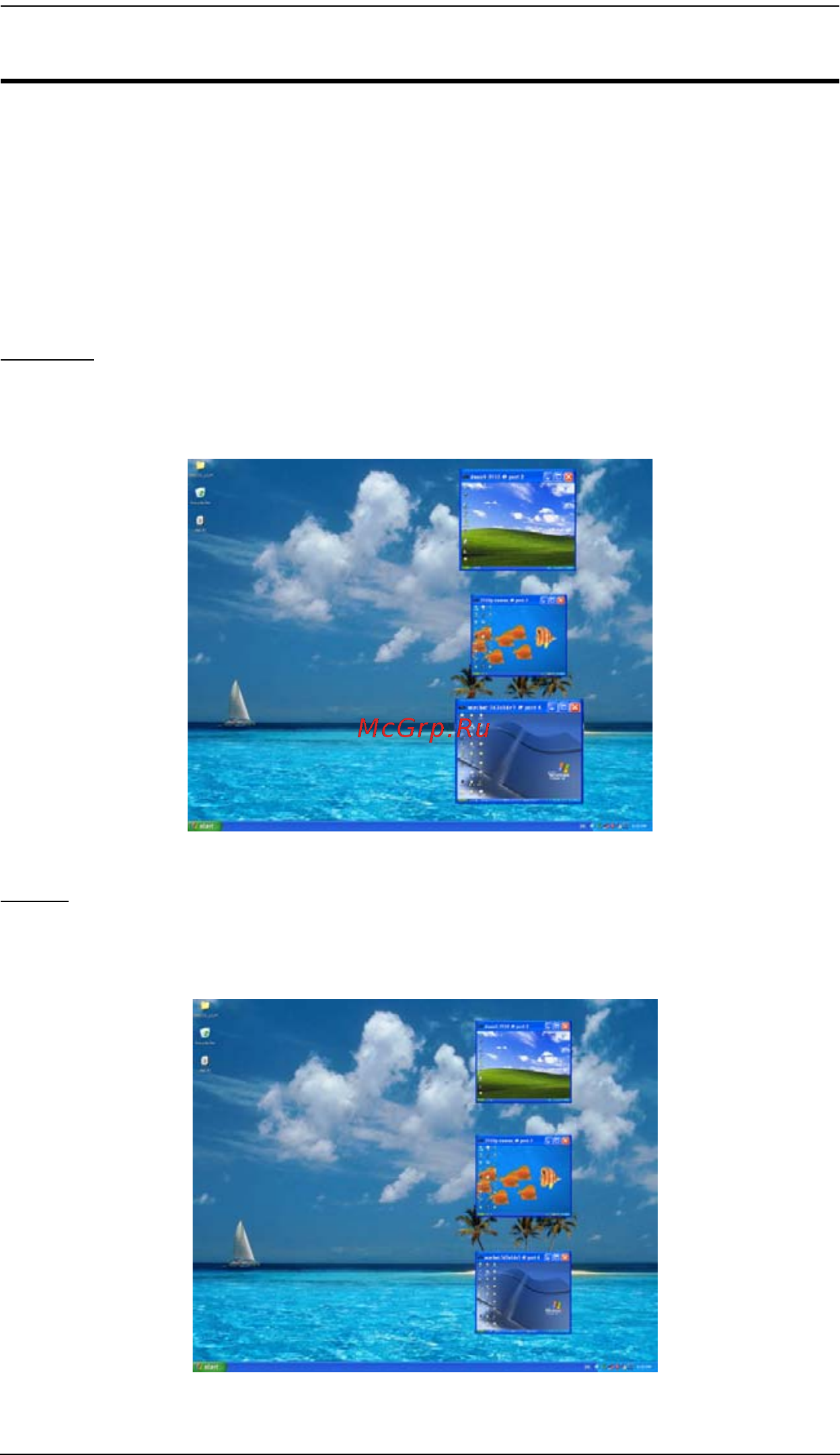

Before

Before desktop scaling is invoked, the matrix windows appear in ratio to the

resolution of the original screen, as below:

After

After desktop scaling is invoked, the ratio of the matrix windows match, as

below:
