KVM Reset / Reinstallation

The CM0264 can be reset using the front panel pushbuttons (see KVM Reset,

page 19) and by reinstalling the setup software. To perform a KVM reset via

software, or reinstall the CM0264 on your computers, do the following:

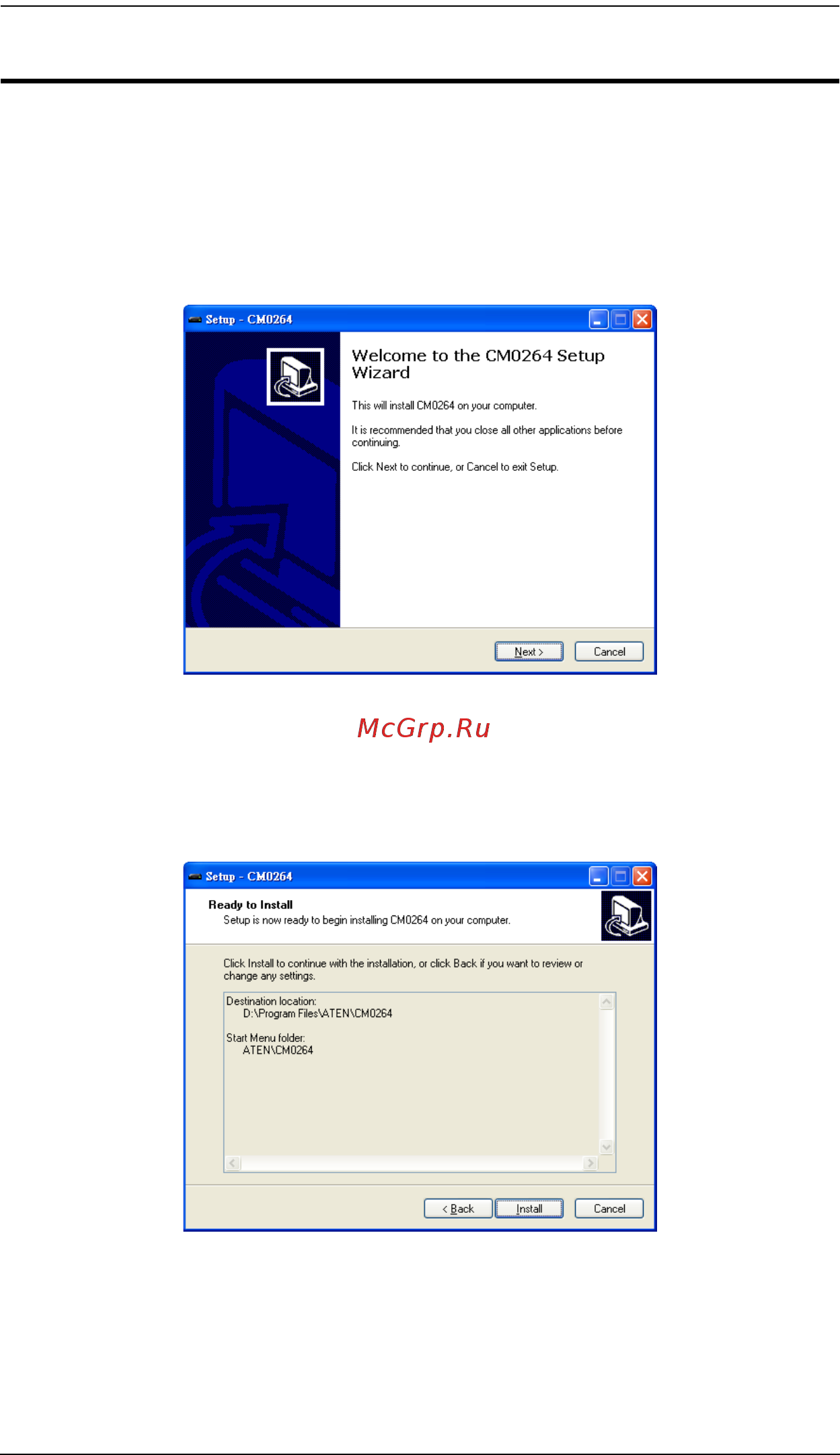

1. Double click on the remote_setup.exe file. When the Welcome screen

appears, click Next.

2. Follow the on-screen instructions to select a destination and select/edit the

Start Menu Folder. When the Ready to Install screen appears, click Install

to execute the installation:

(Continues on next page.)
