Chapter 6. The Firmware Upgrade Utility
53
Upgrade Succeeded

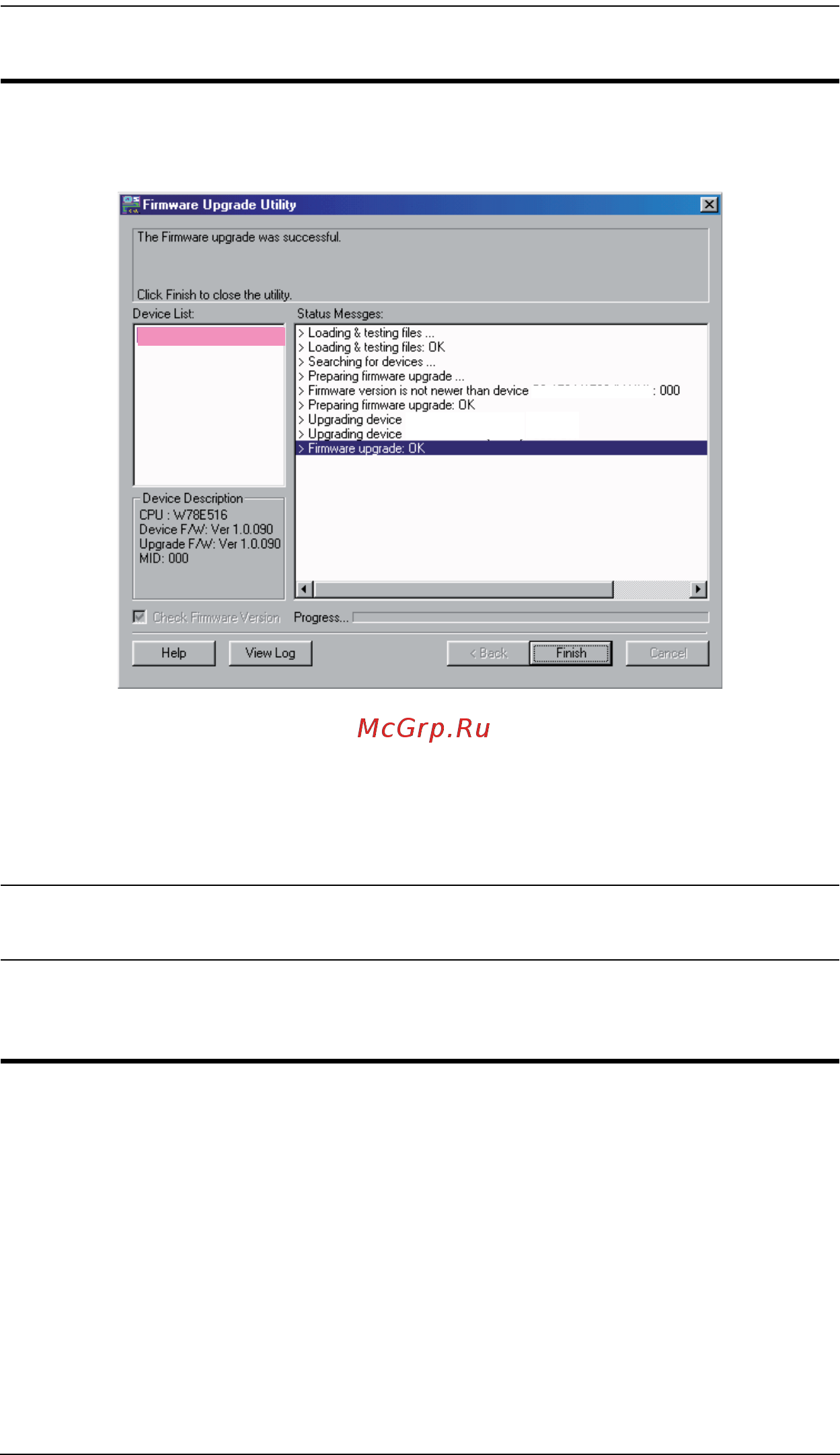

After the upgrade has completed, a screen appears to inform you that the
procedure was successful:
Click Finish to close the Firmware Upgrade Utility.
After a successful completion, the CM0264 exits Firmware Upgrade Mode,
and resets itself.
Note: To remove the USBXpress AP driver, use Control Panel → Add/
Remove files.
Upgrade Failed
If the Upgrade Succeeded screen doesn’t appear, it means that the upgrade
failed to complete successfully, in which case you should do the following:
1. Power off the CM0264 by removing the power jack.
2. Invoke Firmware Upgrade Mode by holding down the front panel Mode
Selection pushbutton (see Components, page 5) and power on the
CM0264. The KVM LEDs flash orange together.
3. Do the firmware upgrade procedure again.
CM0264 [MAIN]..
CM0262 [MAIN]
CMO264 [MAIN] 000...
CM0264 [MAIN] 000: UK
