CM0264 User Manual

The File Management Utility

The CM0264 provides a complete file management utility that makes it quick

and easy to transfer files between your computers. In addition to file transfer,

the CM0264 file management utility also offers a full range of file system

management features, such as creating, renaming, and deleting files and folders

on all of the connected computers from one easy-to-use interface.

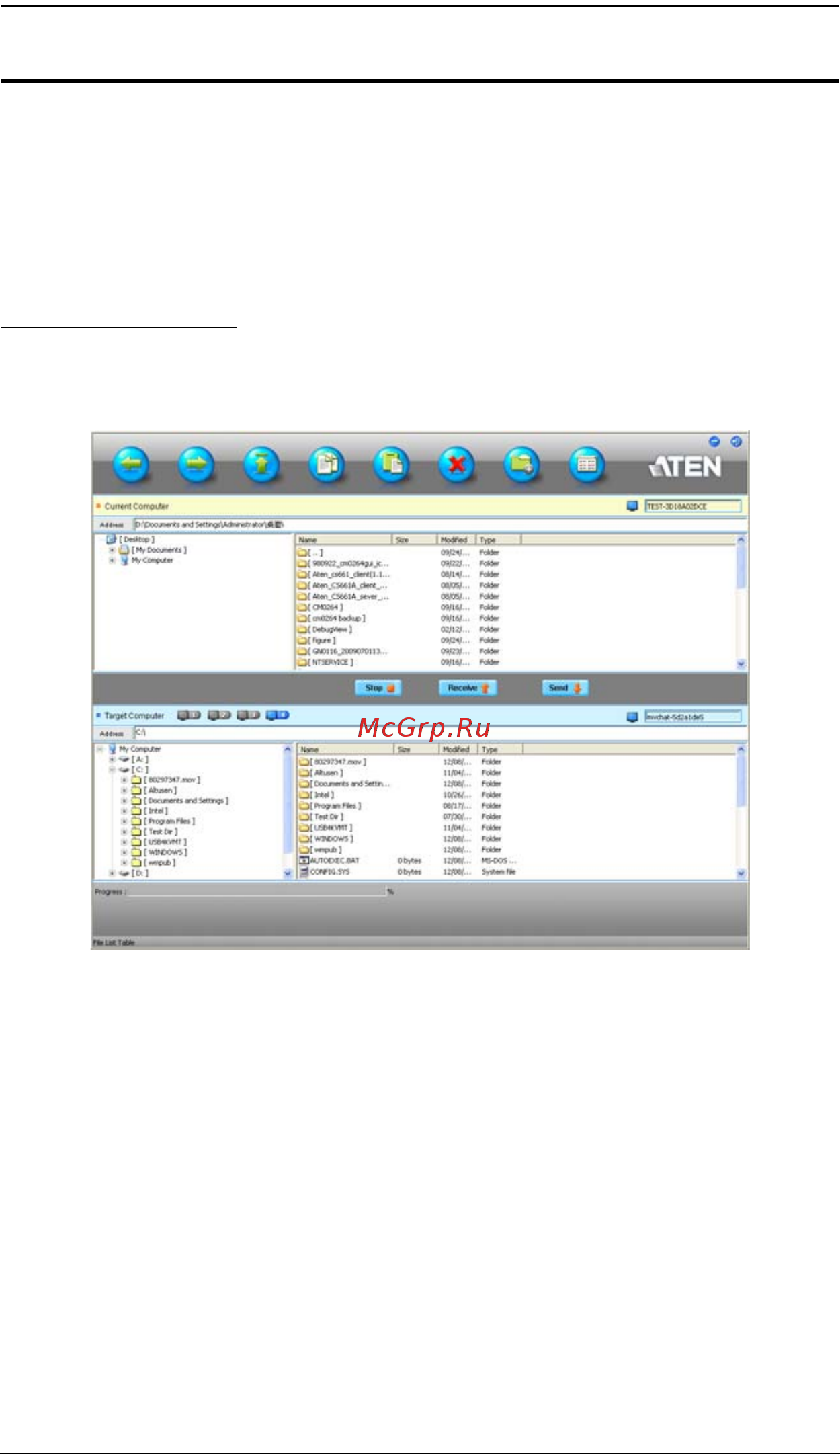

File Transfer GUI

When you click on the File Transfer icon in the CM0264’s toolbar (see The

Toolbar, page 37), the utility’s main page appears:

There are four main elements to the File Transfer GUI main page, as described

on the following pages.
