Chapter 6. The Firmware Upgrade Utility

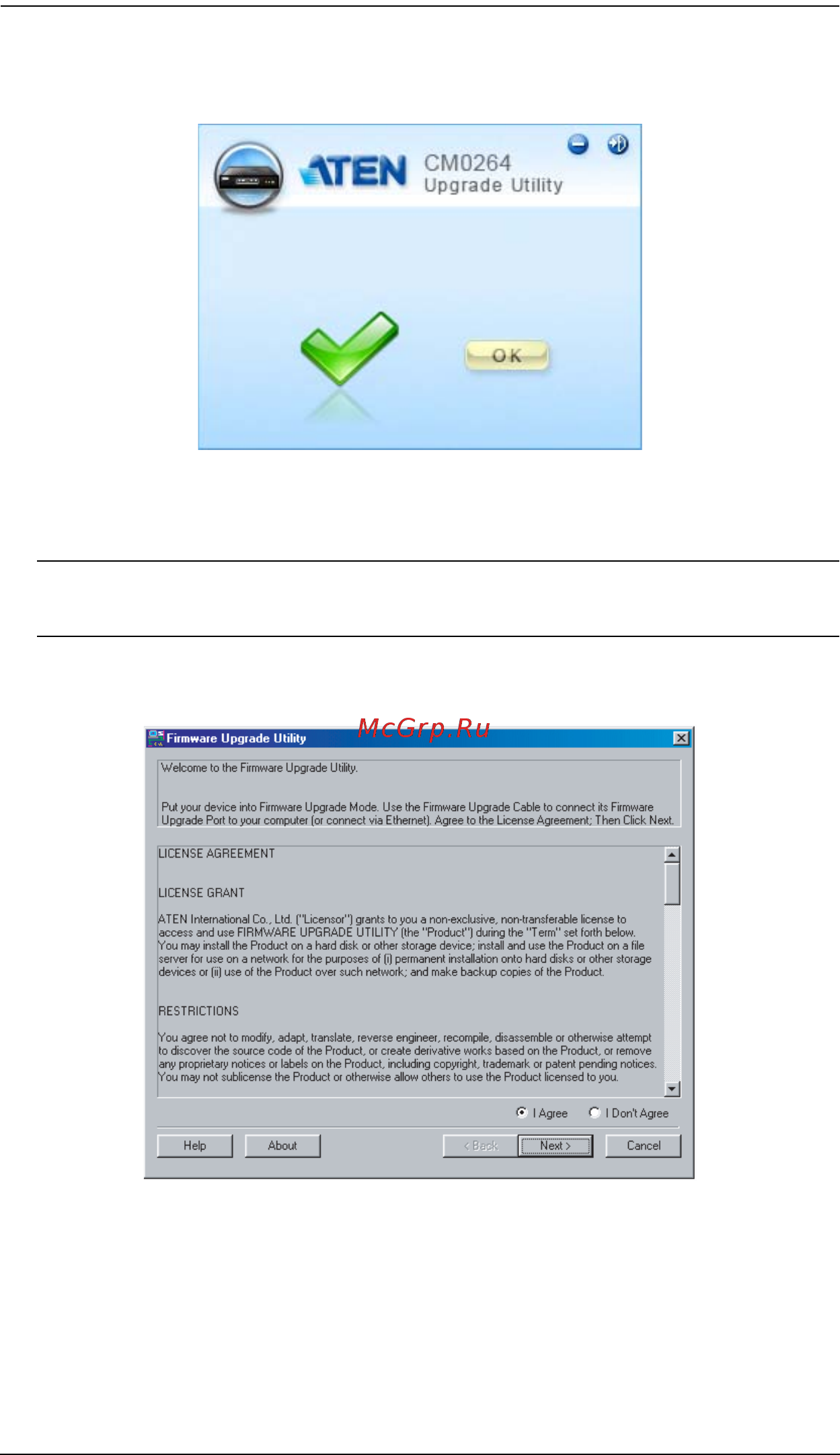

3. When the AP upgrade has completed successfully; the following window

appears:

4. Click OK to continue.

Note: The CM0264 GUI window appears. There is no need to click

Connect – minimize this window.

The Firmware Upgrade Utility Welcome screen appears:

5. Read the License Agreement (enable the I Agree radio button), and click

Next.
