CM0264 User Manual

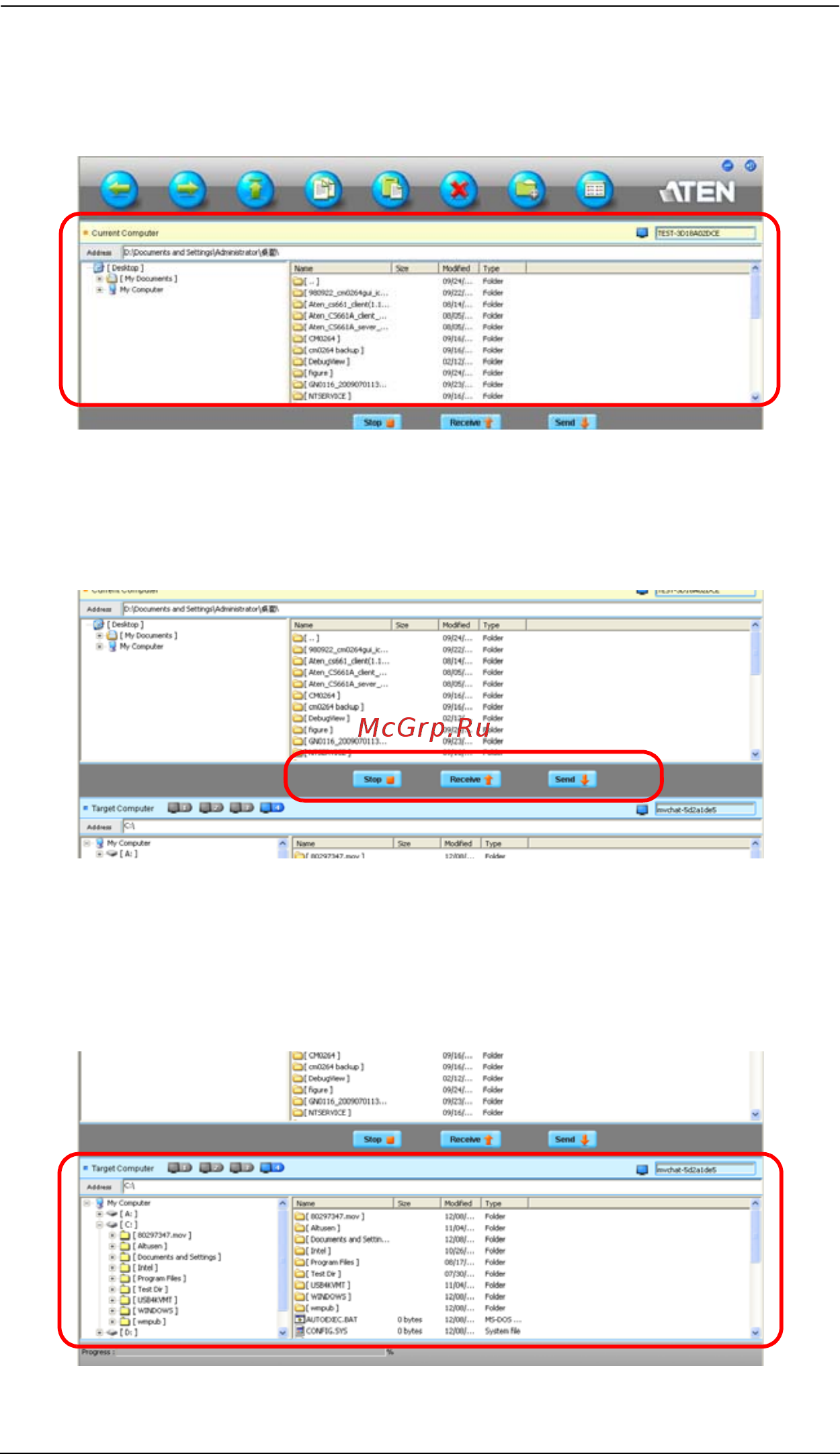

Current Computer Section

This section displays the file system of the computer with the current KVM

focus.

File Transfer Buttons

This section displays the three file transfer function buttons: Send, Receive,

and Stop. See Transferring Files, page 41, for full details.

Target Computer Section

This section displays the file system of the computer that is currently selected

as the target computer. It can be any of three computers that are not the current

one, and is selected using the Target Computer buttons 1–4.
