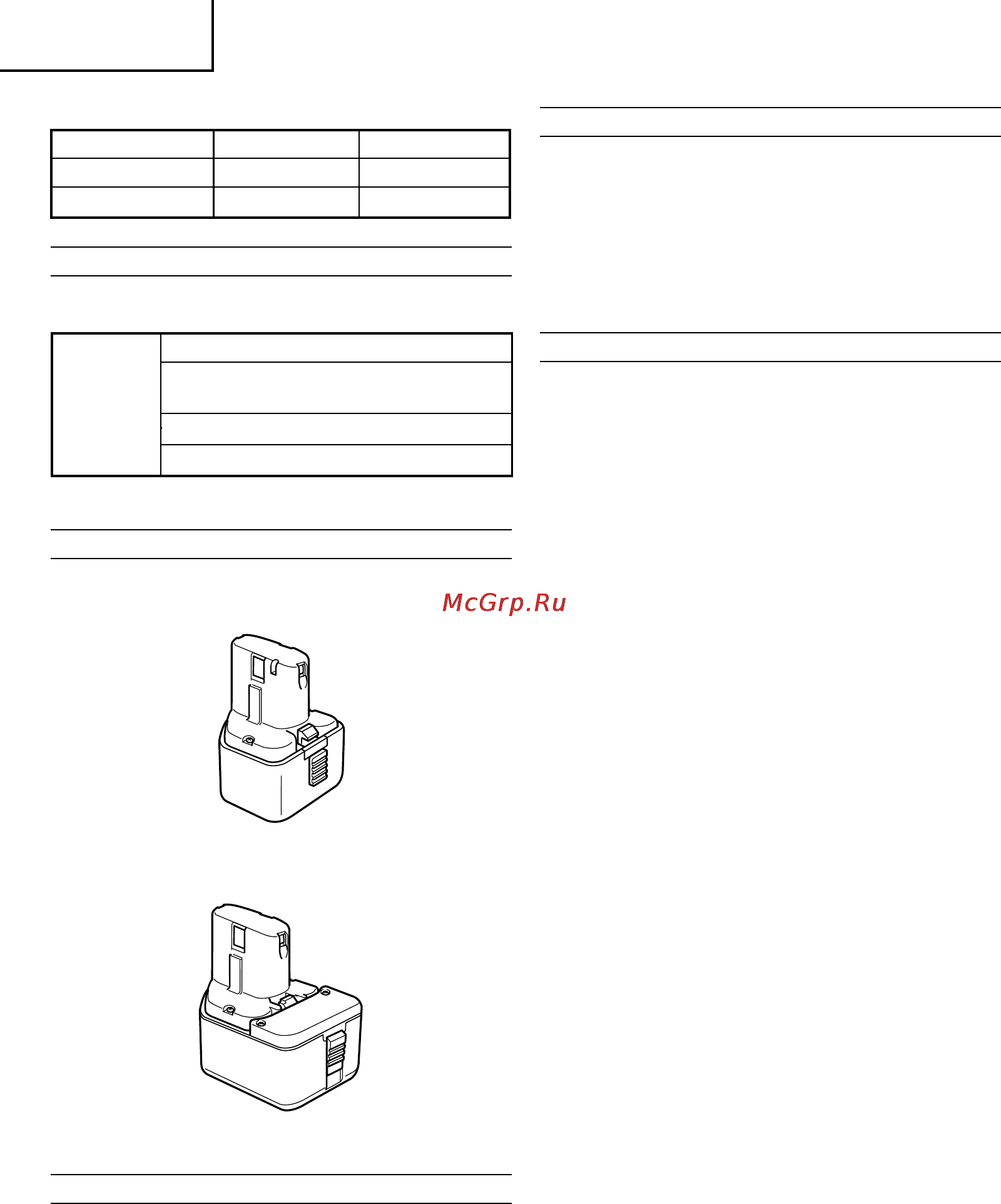

BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latch
to remove the battery (See Figs. 1 and 2).
CAUTION
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (See
Fig. 2).
CHARGING
〈UC14YFA
〉
Before using the driver drill, charge the battery as follows.
1. Connect the charger’s power cord to a receptacle
When the power cord is connected, the charger’s
pilot lamp will blink in red (At 1-second intervals).
2. Insert the battery into the charger
Firmly insert the battery into the charger till it
contacts the bottom of the charger and checking
the polarities as shown in Fig. 3.
CAUTION
If the batteries are inserted in the reverse direction,
not only recharging will become impossible, but it
may also cause problems in the charger such as
a deformed recharging terminal.
3. Charging
When inserting a battery in the charger, charging
will commence and the pilot lamp will light
continuously in red.
When the battery becomes fully recharged, the pilot
lamp will blink in red (At 1-second intervals.) (See
Table 1).
(1) Pilot lamp indication
The indications of the pilot lamp will be as shown
in Table 1, according to the condition of the charger
or the rechargeable battery.
STANDARD ACCESSORIES
In addition to the main unit (1), the package contains the
accessories listed in the table below.
Standard accessories are subject to change without notice.
OPTIONAL ACCESSORIES (sold separately)
1. Battery (EB914, EB9B, EB9H, EB926H, EB930H)
(For DS9DM)
2. Battery (EB1214L, EB1220BL, EB1222HL, EB1226HL,
EB1230HL) (For DS12DM)
Optional accessories are subject to change without notice.
APPLICATIONS
䡬 Driving and removing of machine screws, wood
screws, tapping screws, etc.
䡬 Drilling of various metals.
䡬 Drilling of various woods.
1 Plus driver bit (No. 2) .................. 1
2 Charger
(UC14YFA or UC18YG) .........................
1
3 Battery .............................................. 2
4 Plastic case ....................................... 1
CHARGER
Model UC14YFA UC18YG
Charging voltage 7.2
–
14.4
V 7.2
–
18
V
Weight 0.6
kg 0.3
kg
DS9DM
DS12DM
