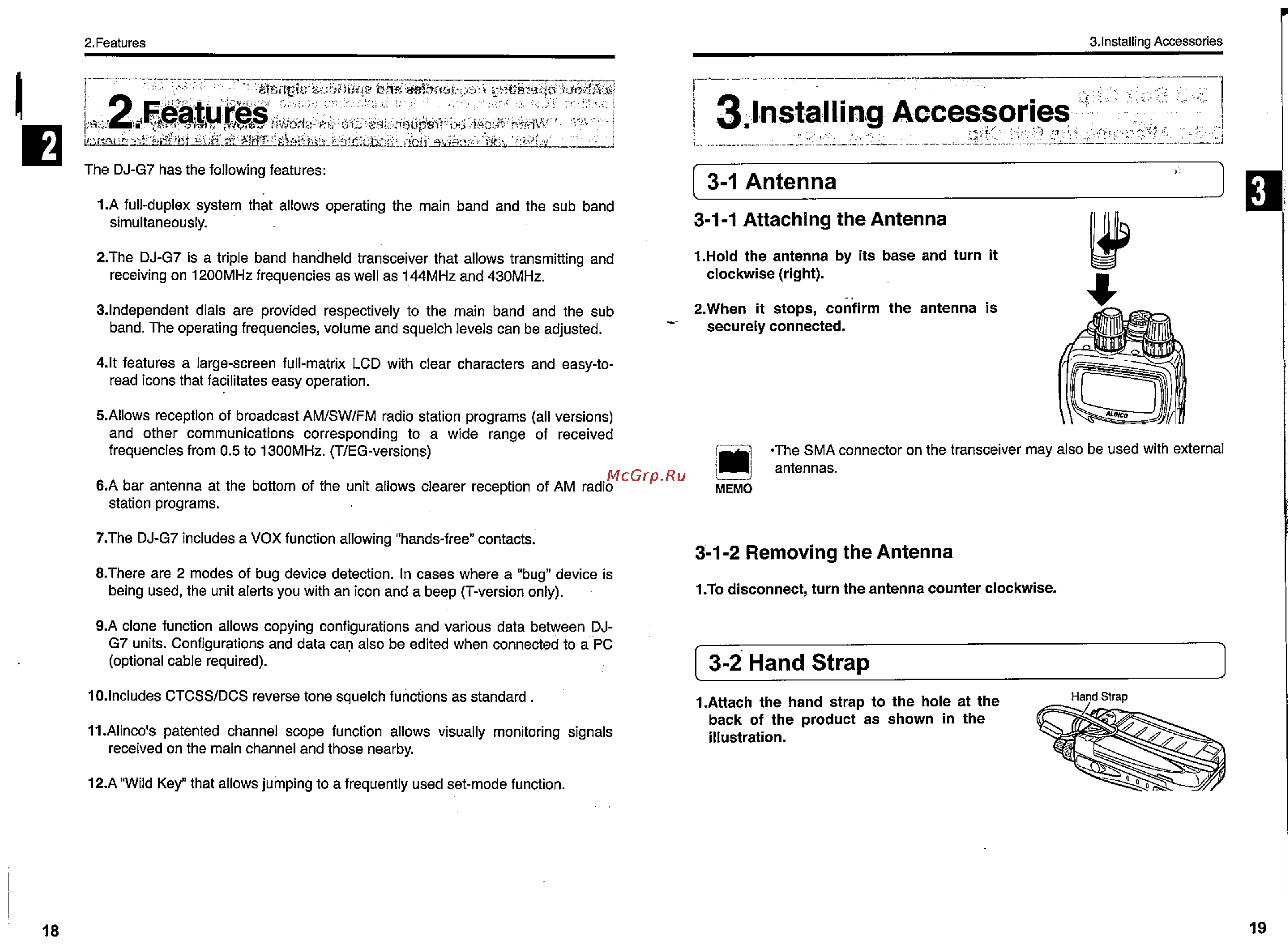

3 Installing Accessories 2 Features bdvtèù LQL 1S2L1 W 3 Installing Accessories J ùLLddiJàlLi The DJ G7 has the following features 3 1 Antenna 1 A full duplex system that allows operating the main band and the sub band simultaneously 3 1 1 Attaching the Antenna 2 The DJ G7 is a triple band handheld transceiver that allows transmitting and receiving on 1200MHz frequencies as well as 144MHz and 430MHz I Hold the antenna by its base and turn it clockwise right 3 lndependent dials are provided respectively to the main band and the sub band The operating frequencies volume and squelch levels can be adjusted 2 When it stops confirm the antenna is securely connected 4 lt features a large screen full matrix LCD with clear characters and easy toread icons that facilitates easy operation 5 AI10WS reception of broadcast AM SW FM radio station programs all versions and other communications corresponding to a wide range of received frequencies from 0 5 to 1300MHz T EG versions 6 A bar antenna at the bottom of the unit allows clearer reception of AM radio station programs 7 The DJ G7 includes a VOX function allowing hands free contacts 8 There are 2 modes of bug device detection In cases where a bug device is being used the unit alerts you with an icon and a beep T version only 9 A clone function allows copying configurations and various data between DJG7 units Configurations and data can also be edited when connected to a PC optional cable required 10 lncludes CTCSS DCS reverse tone squelch functions as standard H AIinco s patented channel scope function allows visually monitoring signals received on the main channel and those nearby The SMA connector on the transceiver may also be used with external antennas MEMO 3 1 2 Removing the Antenna 1 To disconnect turn the antenna counter clockwise 3 2 Hand Strap 1 Attach the hand strap to the hole at the back of the product as shown in the illustration 12 A Wild Key that allows jumping to a frequently used set mode function 18 19
