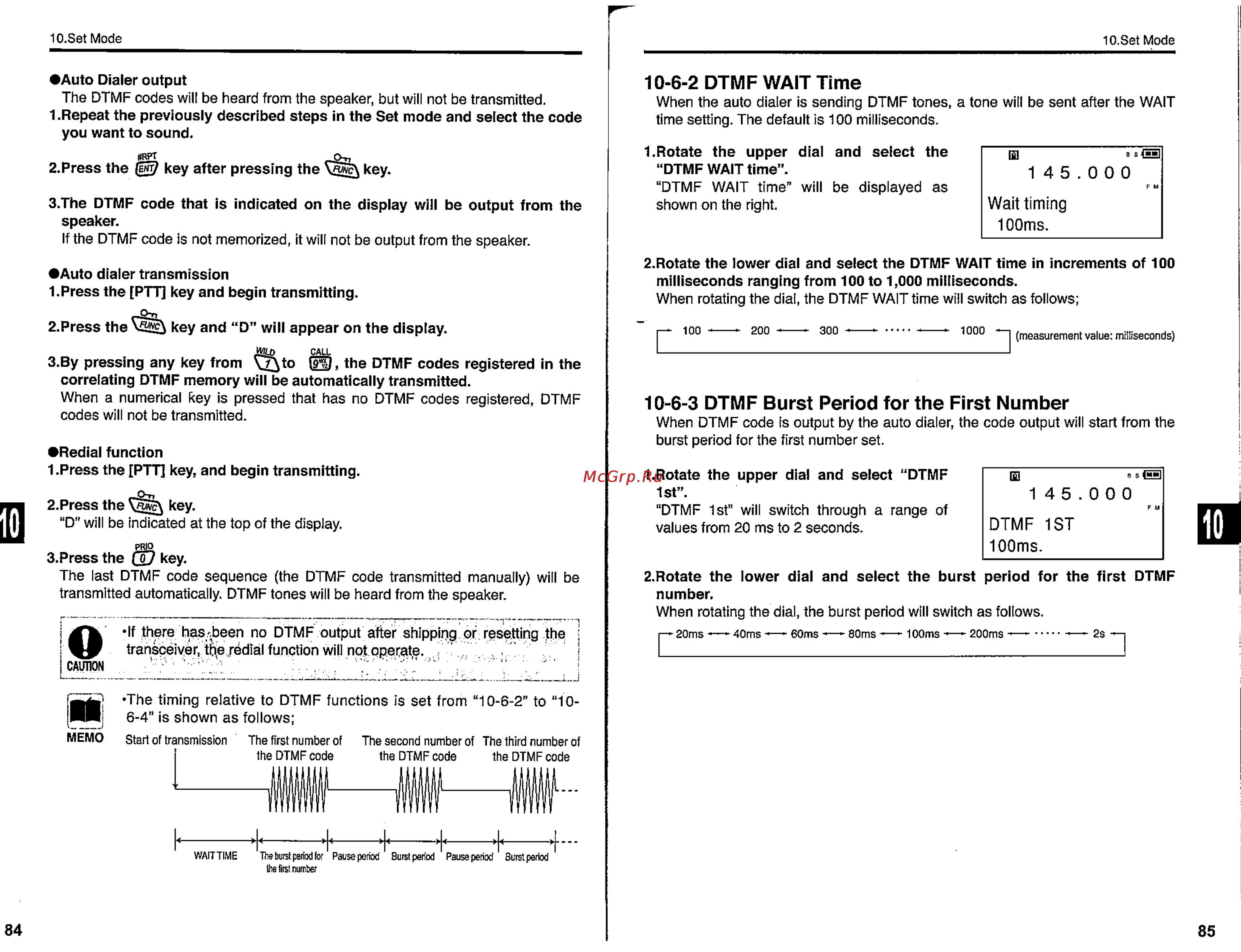

10 Set Mode 1O Set Mode Auto Dialer output The DTMF codes will be heard from the speaker but will not be transmitted 1 Repeat the previously described steps in the Set mode and select the code you want to sound RPT Or 2 Press the key after pressing the key 3 The DTMF code that is indicated on the display will be output from the speaker If the DTMF code is not memorized it will not be output from the speaker Auto dialer transmission 1 Press the PTT key and begin transmitting 2 Press the key and D will appear on the display 10 6 2 DTMF WAIT Time When the auto dialer is sending DTMF tones a tone will be sent after the WAIT time setting The default is 100 milliseconds 1 Rotate the upper dial and select the DTMF WAIT time DTMF WAIT time will be displayed shown on the right EJ a s SB 145 000 as FM Wait timing 100ms 2 Rotate the lower dial and select the DTMF WAIT time in increments of 100 milliseconds ranging from 100 to 1 000 milliseconds When rotating the dial the DTMF WAIT time will switch as follows 100 200 300 1000 measurement value milliseconds Mo CALL 3 By pressing any key from y to the DTMF codes registered in the correlating DTMF memory will be automatically transmitted When a numerical key is pressed that has no DTMF codes registered DTMF codes will not be transmitted Redial function 1 Press the PTT key and begin transmitting 2 Press the a key D will be indicated at the top of the display 10 6 3 DTMF Burst Period for the First Number When DTMF code is output by the auto dialer the code output will start from the burst period for the first number set 1 Rotate the upper dial and select DTMF 1st DTMF 1st will switch through a range of values from 20 ms to 2 seconds PRIO 3 Press the ol key The last DTMF code sequence the DTMF code transmitted manually will be transmitted automatically DTMF tones will be heard from the speaker If there has been no DTMF output after shipping or resetting the transceiver the redial function will not operate Y i B s Wl E 1 45 000 FM DTMF 1ST 100ms 2 Rotate the lower dial and select the burst period for the first DTMF number When rotating the dial the burst period will switch as follows 20ms 40ms 60ms 80ms 100ms 200ms 2s The timing relative to DTMF functions is set from 10 6 2 to 106 4 is shown as follows MEMO Start of transmission The first number of The second number of The third number of the DTMF code the DTMF code the DTMF code HMI WAITTIME Pie burst period for Pauseperiod Burstperiod Pauseperiod Burstperiod the first number 84 85
