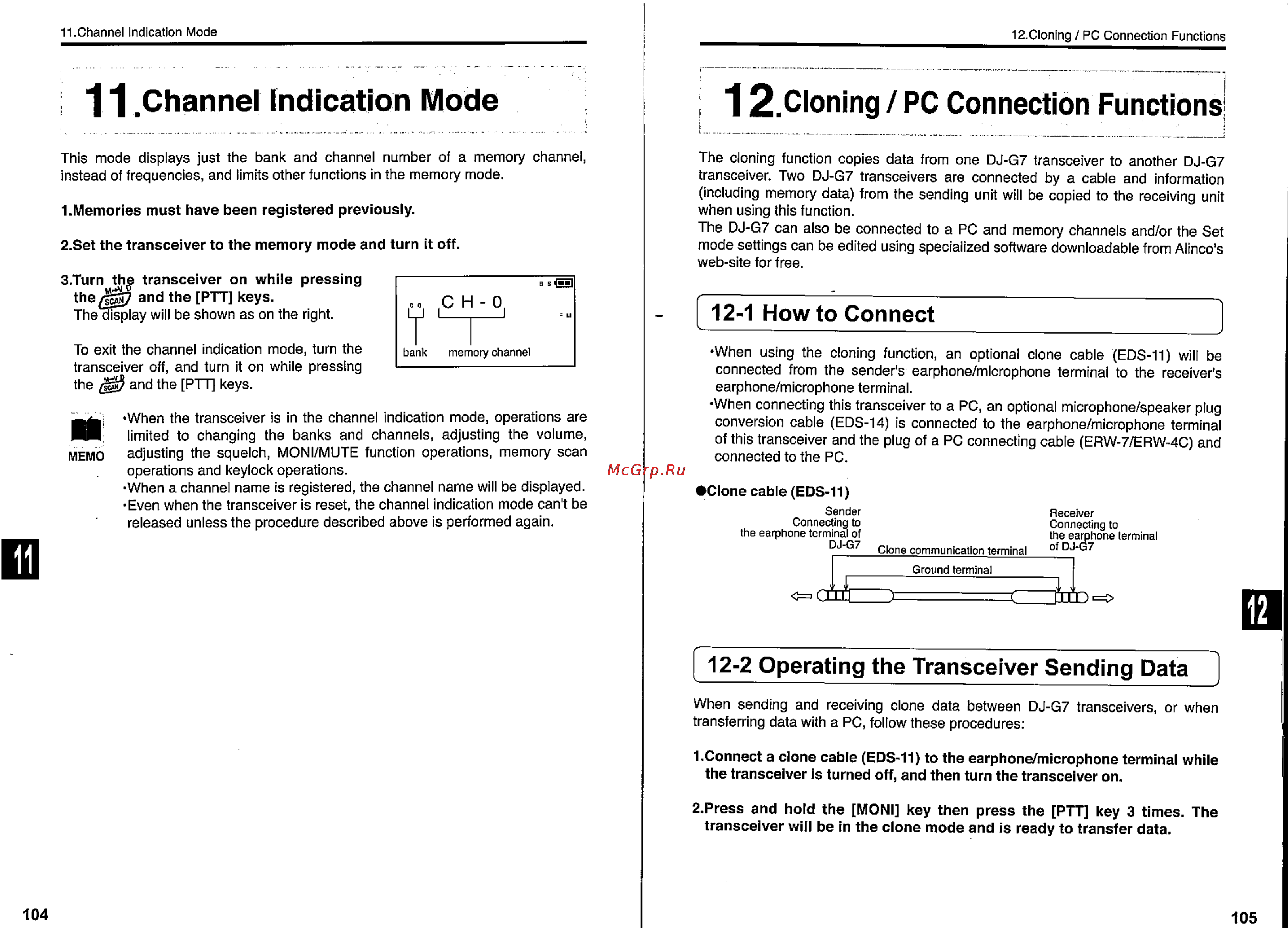

11 Channel Indication Mode 12 Cloning PC Connection Functions 1 Channel Indication Mode 12 Cloning PC Connection Functions This mode displays just the bank and channel number of a memory channel instead of frequencies and limits other functions in the memory mode The cloning function copies data from one DJ G7 transceiver to another DJ G7 transceiver Two DJ G7 transceivers are connected by a cable and information including memory data from the sending unit will be copied to the receiving unit when using this function 1 Memories must have been registered previously The DJ G7 can also be connected to a PC and memory channels and or the Set mode settings can be edited using specialized software downloadable from Alinco s web site for free 2 Set the transceiver to the memory mode and turn it off 3 Turn the transceiver on while pressing the 7 and the PTT keys The cfisplay will be shown as on the right To exit the channel indication mode turn the transceiver off and turn it on while pressing the 7 and the PTT keys MEMO FM bank memory channel When the transceiver is in the channel indication mode operations are limited to changing the banks and channels adjusting the volume adjusting the squelch MONI MUTE function operations memory scan operations and keylock operations When a channel name is registered the channel name will be displayed Even when the transceiver is reset the channel indication mode can t be released unless the procedure described above is performed again 12 1 Howto Connect When using the cloning function an optional clone cable EDS 11 will be connected from the sender s earphone microphone terminal to the receiver s earphone microphone terminal When connecting this transceiver to a PC an optional microphone speaker plug conversion cable EDS 14 is connected to the earphone microphone terminal of this transceiver and the plug of a PC connecting cable ERW 7 ERW 4C and connected to the PC Clone cable EDS 11 Sender Connecting to the earphone terminal of DJ G7 Clone communication terminal Receiver Connecting to the earphone terminal of DJ G7 ______ Ground terminal X 12 2 Operating the Transceiver Sending Data When sending and receiving clone data between DJ G7 transceivers or when transferring data with a PC follow these procedures 1 Connect a clone cable EDS 11 to the earphone microphone terminal while the transceiver is turned off and then turn the transceiver on 2 Press and hold the MONI key then press the PTT key 3 times The transceiver will be in the clone mode and is ready to transfer data 104 105
