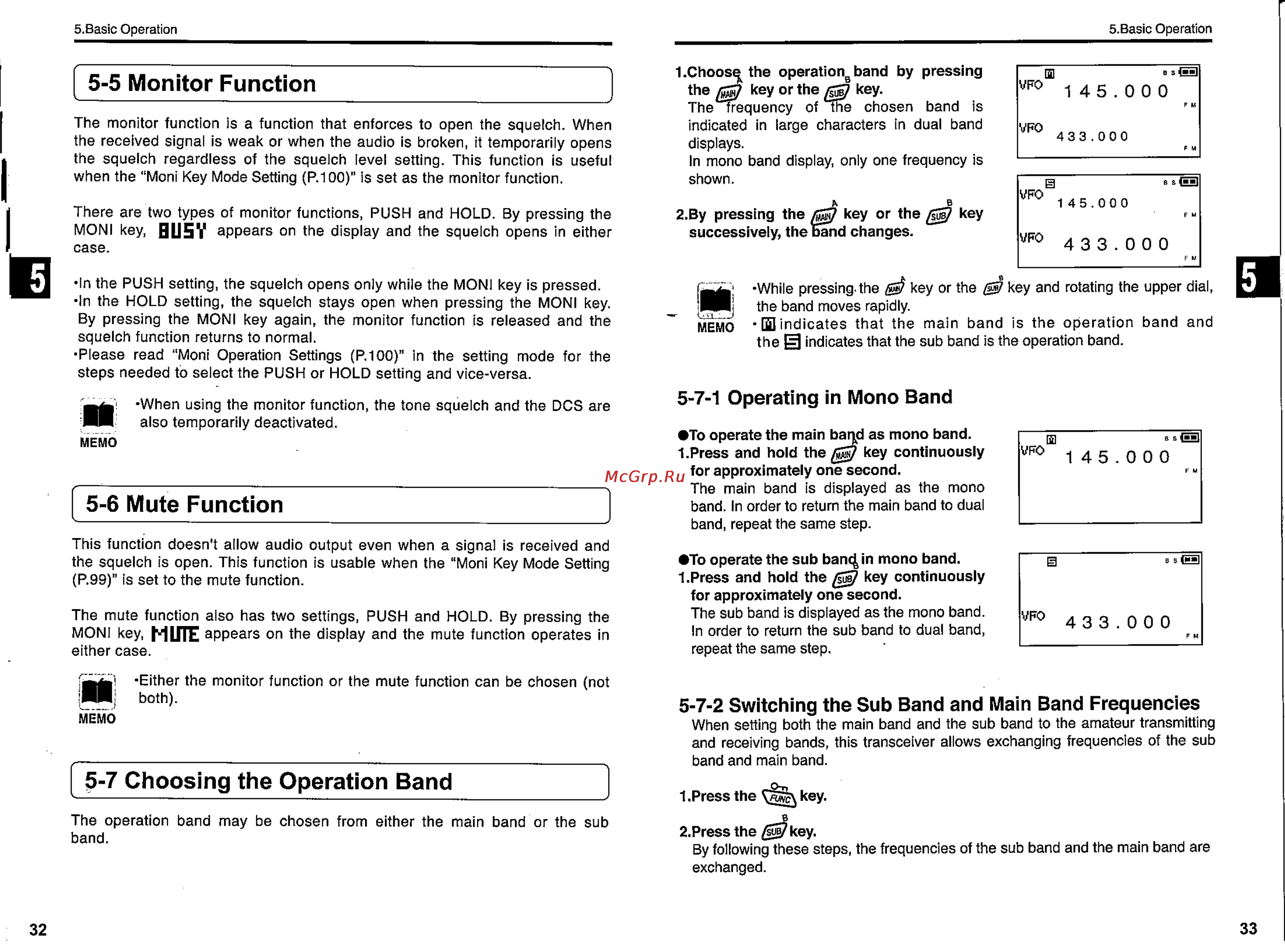

S Basic Operation 5 Basic Operation 5 5 Monitor Function The monitor function is a function that enforces to open the squelch When the received signal is weak or when the audio is broken it temporarily opens the squelch regardless of the squelch level setting This function is useful when the Moni Key Mode Setting P 100 is set as the monitor function There are two types of monitor functions PUSH and HOLD By pressing the MONI key BUSY appears on the display and the squelch opens in either case In the PUSH setting the squelch opens only while the MONI key is pressed In the HOLD setting the squelch stays open when pressing the MONI key By pressing the MONI key again the monitor function is released and the squelch function returns to normal Please read Moni Operation Settings P 100 in the setting mode for the steps needed to select the PUSH or HOLD setting and vice versa When using the monitor function the tone squelch and the DCS are also temporarily deactivated MÉMO 5 6 Mute Function This function doesn t allow audio output even when a signal is received and the squelch is open This function is usable when the Moni Key Mode Setting P 99 is set to the mute function The mute function also has two settings PUSH and HOLD By pressing the MONI key MUTE appears on the display and the mute function operates in either case 1 Choosy the operation band by pressing the g key or the key The frequency of the chosen band is indicated in large characters in dual band displays In mono band display only one frequency is shown 2 By pressing the key or the successively the Band changes es E3 1 4 5 0 0 0 VFG __B SUE Ш VF0 в S J 1 45 00 0 key FM VF0 4 3 3 0 0 0 FM While pressing the key or the 7 key and rotating the upper dial IHR the band moves rapidly MEMO EIindicates that the main band is the operation band and the indicates that the sub band is the operation band 5 7 1 Operating in Mono Band To operate the main barjd as mono band 1 Press and hold the 7 key continuously for approximately one second The main band is displayed as the mono band In order to return the main band to dual band repeat the same step To operate the sub banc in mono band 1 Press and hold the key continuously for approximately one second The sub band is displayed as the mono band In order to return the sub band to dual band repeat the same step ш в VF0 1 4 5 0 0 0 VF0 4 3 3 0 0 0 FM Either the monitor function or the mute function can be chosen not iMlj both MÉMO 5 7 Choosing the Operation Band The operation band may be chosen from either the main band or the sub band 32 5 7 2 Switching the Sub Band and Main Band Frequencies When setting both the main band and the sub band to the amateur transmitting and receiving bands this transceiver allows exchanging frequencies of the sub band and main band 1 Press the key B 2 Press the s7key By following these steps the frequencies of the sub band and the main band are exchanged 33
