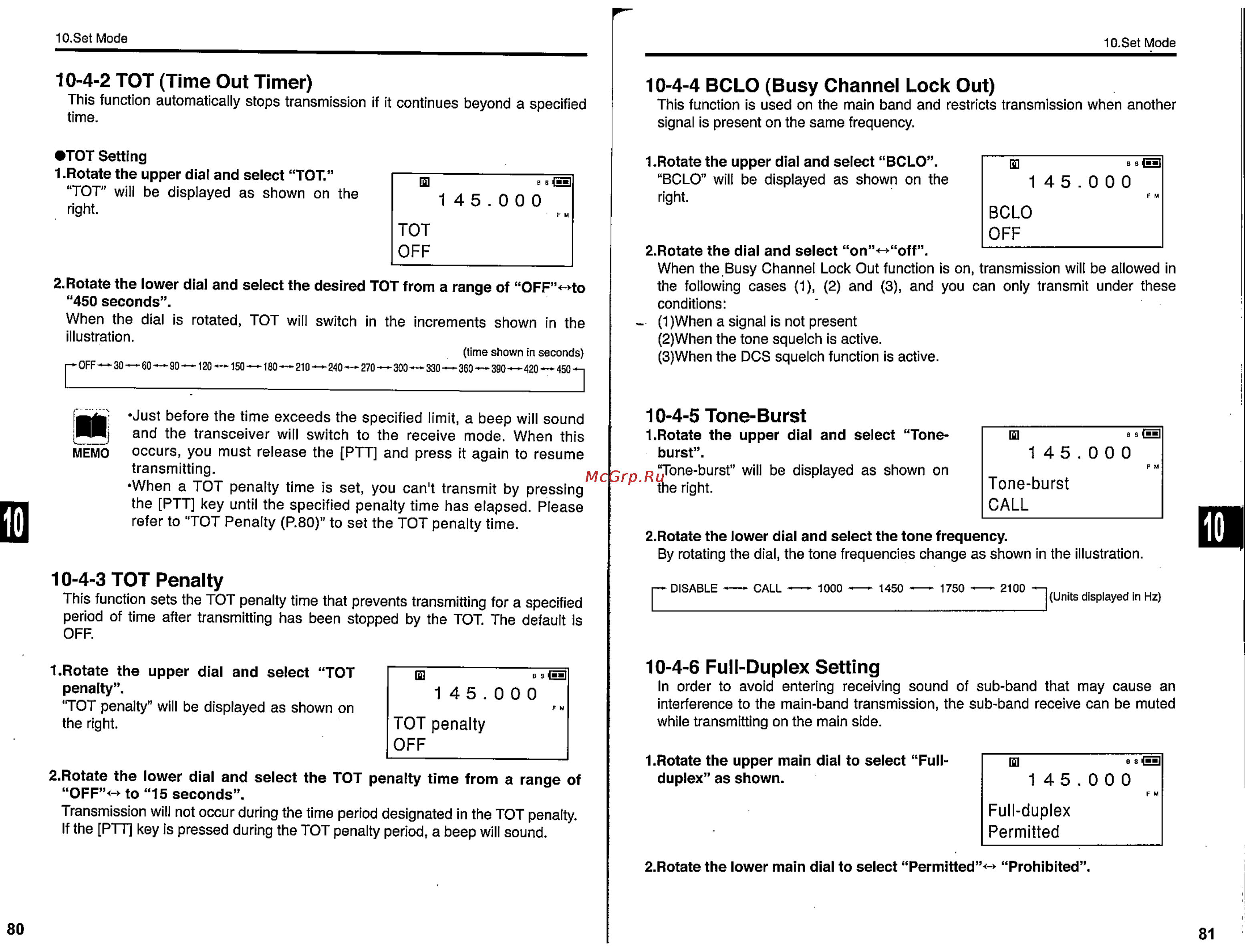

1O Set Mode 1O Set Mode 10 4 2 TOT Time Out Timer 10 4 4 BCLO Busy Channel Lock Out This function automatically stops transmission if it continues beyond a specified time TOT Setting 1 Rotate the upper dial and select TOT TOT will be displayed as shown on the right Q as i 1 145 000 This function is used on the main band and restricts transmission when another signal is present on the same frequency 1 Rotate the upper dial and select BCLO BCLO will be displayed as shown on the right FM TOT OFF 2 Rotate the lower dial and select the desired TOT from a range of OFF to 450 seconds When the dial is rotated TOT will switch in the increments shown in the illustration time shown in seconds l OFF 30 60 90 120 150 180 210 240 270 300 330 360 390 420 450 i hfa Just before the time exceeds the specified limit a beep will sound Mj and the transceiver will switch to the receive mode When this MEMO occurs you must release the PTT and press it again to resume transmitting When a TOT penalty time is set you can t transmit by pressing the PTT key until the specified penalty time has elapsed Please refer to TOT Penalty P 80 to set the TOT penalty time BO S 9Ë3 145 000 FM BCLO OFF 2 Rotate the dial and select on off When the Busy Channel Lock Out function is on transmission will be allowed in the following cases 1 2 and 3 and you can only transmit under these conditions 1 When a signal is not present 2 When the tone squelch is active 3 When the DCS squelch function is active 10 4 5 Tone Burst 1 Rotate the upper dial and select Tone burst Tone burst will be displayed as shown on the right BO B s I 145 000 FM Tone burst CALL 2 Rotate the lower dial and select the tone frequency By rotating the dial the tone frequencies change as shown in the illustration 10 4 3 TOT Penalty p DISABLE CALL 1000 1450 1750 2100 i This function sets the TOT penalty time that prevents transmitting for a specified period of time after transmitting has been stopped by the TOT The default is OFF 1 Rotate the upper dial and select TOT penalty TOT penalty will be displayed as shown on the right 5 B s 3 145 000 M TOT penalty OFF 2 Rotate the lower dial and select the TOT penalty time from a range of OFF to 15 seconds Transmission will not occur during the time period designated in the TOT penalty If the PTT key is pressed during the TOT penalty period a beep will sound us Units displayed in Hz 10 4 6 Full Duplex Setting In order to avoid entering receiving sound of sub band that may cause an interference to the main band transmission the sub band receive can be muted while transmitting on the main side 1 Rotate the upper main dial to select Fullduplex as shown a es SB 145 000 FM Full duplex Permitted 2 Rotate the lower main dial to select Permitted Prohibited 80 81
