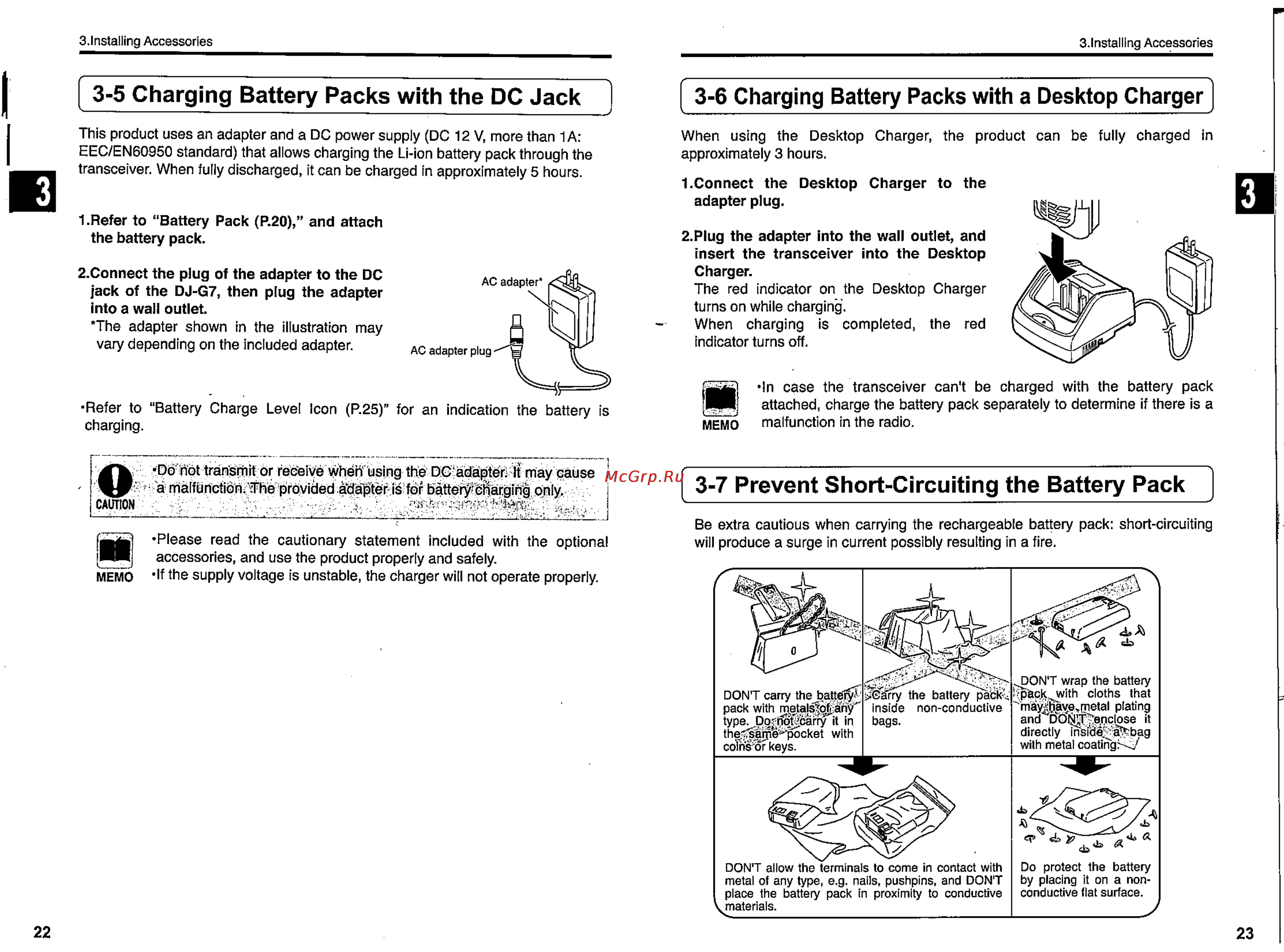

3 Installing Accessories 3 5 Charging Battery Packs with the DC Jack This product uses an adapter and a DC power supply DC 12 V more than 1 A EEC EN60950 standard that allows charging the Li ion battery pack through the transceiver When fully discharged it can be charged in approximately 5 hours 3 lnstalllng Accessories 3 6 Charging Battery Packs with a Desktop Charger When using the Desktop Charger the product can be fully charged in approximately 3 hours 1 Connect the adapter plug 1 Refer to Battery Pack P 20 and attach the battery pack 2 Connect the plug of the adapter to the DC jack of the DJ G7 then plug the adapter into a wall outlet The adapter shown in the illustration may vary depending on the included adapter Refer to Battery Charge Level Icon P 25 for an indication the battery is charging XX Do not transmit or receive when using the DC ädä 3terJt may cause r a malfüncfiÖh The provided àflaptëNS for batted CAUTION please read the cautionary statement included with the optional accessories and use the product properly and safely MEMO If the supply voltage is unstable the charger will not operate properly Desktop Charger to the 2 Plug the adapter into the wall outlet and insert the transceiver into the Desktop Charger The red indicator on the Desktop Charger turns on while charging When charging is completed the red indicator turns off MEMO In case the transceiver can t be charged with the battery pack attached charge the battery pack separately to determine if there is a malfunction in the radio 3 7 Prevent Short Circuiting the Battery Pack Be extra cautious when carrying the rechargeable battery pack short circuiting will produce a surge in current possibly resulting in a fire DON T carry the batte pack with metals ofiiahy type Do carry it in the i nn bocket with coTns or keys DON T allow the terminals to come in contact with metal of any type e g nails pushpins and DON T place the battery pack in proximity to conductive materials 22 DON T wrap the battery l ac k with cloths that mayihav e metal plating and D Ot fy e nclose it directly insicie bag with metal coating Do protect the battery by placing it on a nonconductive flat surface 23
