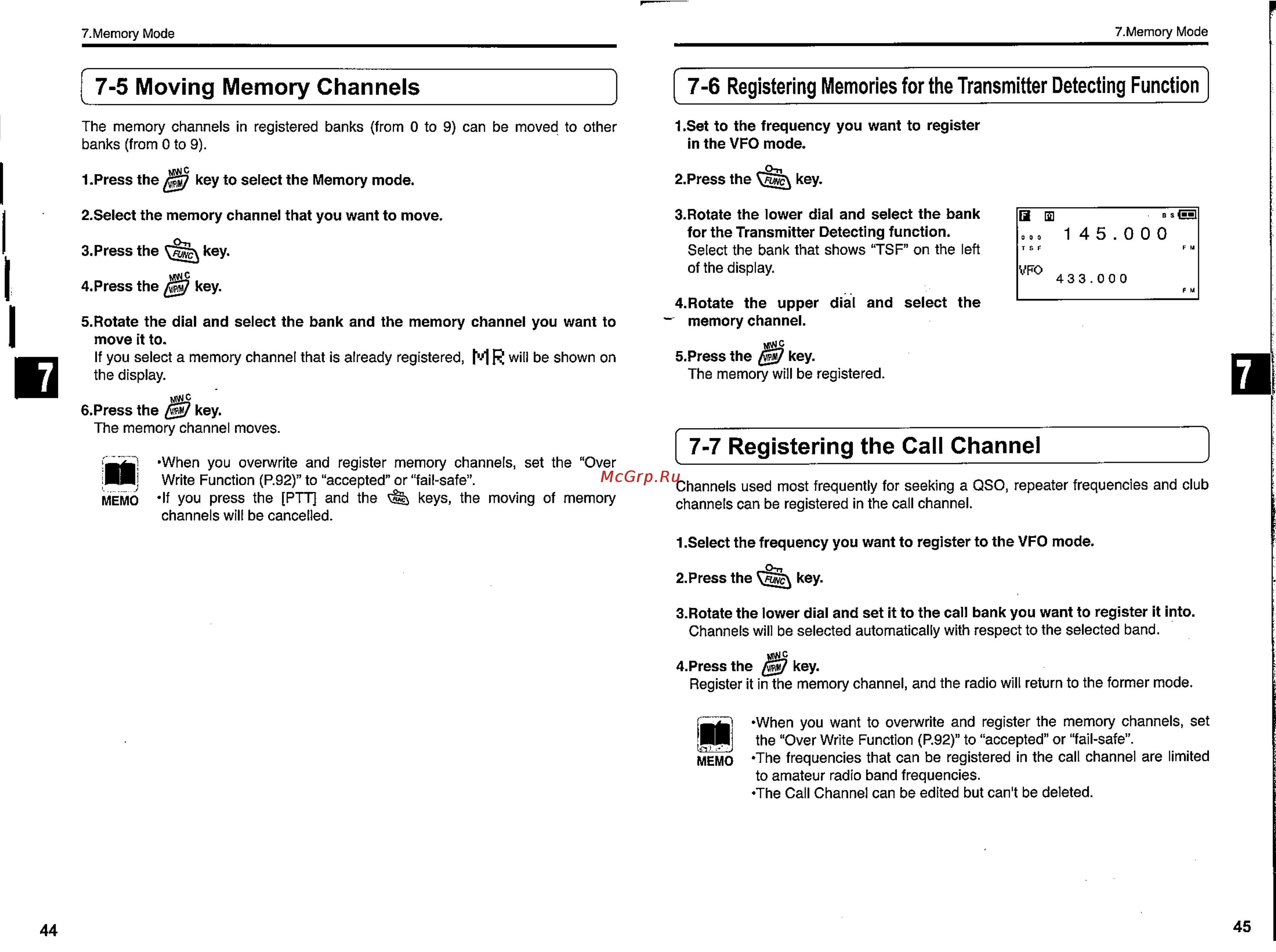

7 Memory Mode 7 Memory Mode 7 5 Moving Memory Channels 7 6 Registering Memories for the Transmitter Detecting Function The memory channels in registered banks from 0 to 9 can be moved to other banks from 0 to 9 I Set to the frequency you want to register in the VFO mode 1 Press the 2 Press the key key to select the Memory mode 2 Select the memory channel that you want to move 3 Press the key 3 Rotate the lower dial and select the bank for the Transmitter Detecting function Select the bank that shows TSF on the left of the display 000 TSF VFO 4 Press the 7 key 5 Rotate the dial and select the bank and the memory channel you want to move it to If you select a memory channel that is already registered M R will be shown on the display B s BSl Q ID 145 000 FM 433 000 FM 4 Rotate the upper dial and select the memory channel S Press the 7 key The memory will be registered 6 Press the 7 key The memory channel moves MEMO When you overwrite and register memory channels set the Over Write Function P 92 to accepted or fail safe If you press the PTTJ and the keys the moving of memory channels will be cancelled 7 7 Registering the Call Channel Channels used most frequently for seeking a QSO repeater frequencies and club channels can be registered in the call channel 1 Select the frequency you want to register to the VFO mode 2 Press the key 3 Rotate the lower dial and set it to the call bank you want to register it Into Channels will be selected automatically with respect to the selected band 4 Press the 7 key Register it in the memory channel and the radio will return to the former mode CjjS yyhen you want to overwrite and register the memory channels set Mil the Over Write Function P 92 to accepted or fail safe MEMO The frequencies that can be registered in the call channel are limited to amateur radio band frequencies The Call Channel can be edited but can t be deleted 44 45
