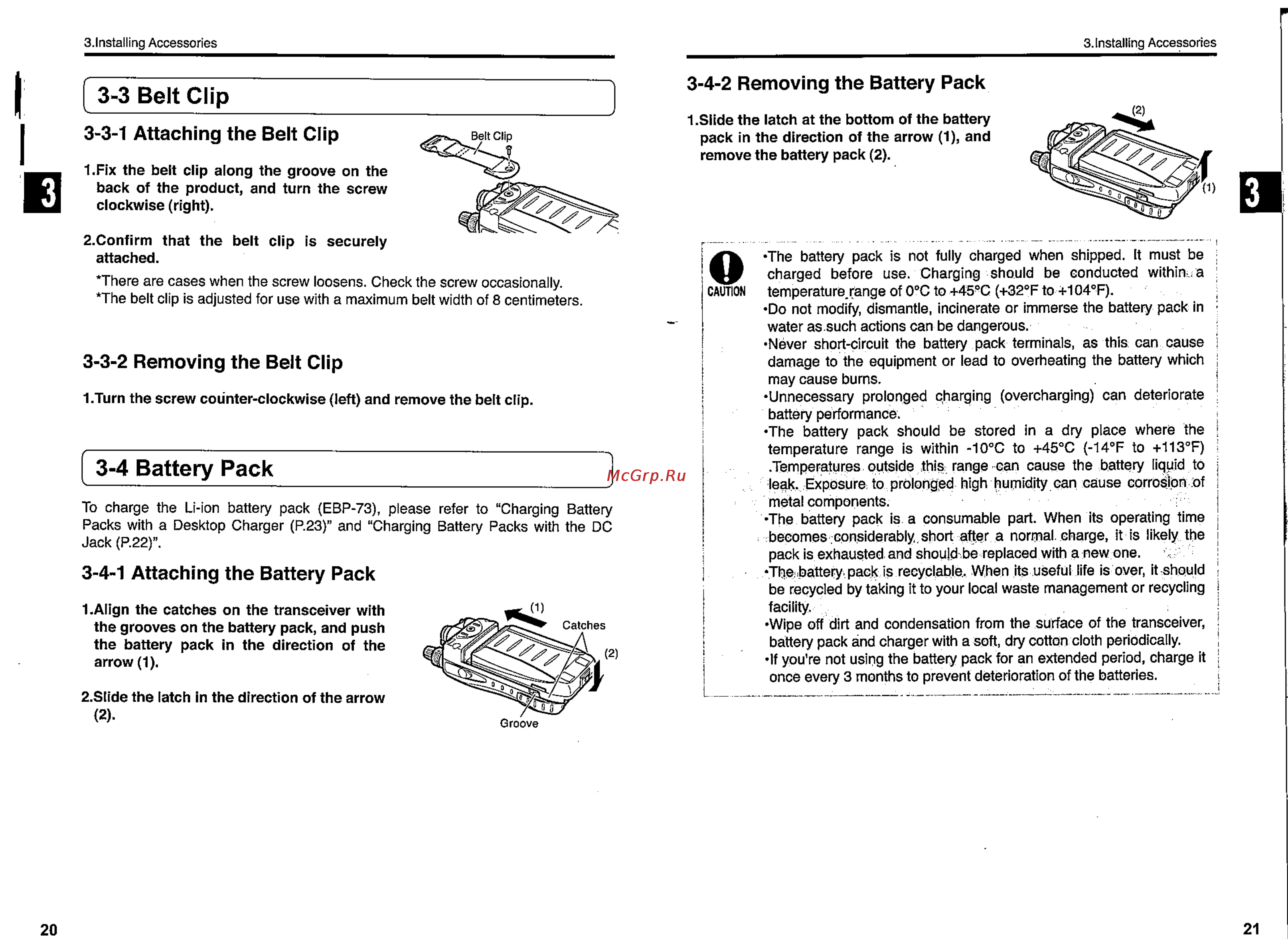

3 lnstalling Accessories 3 Installing Accessories 3 4 2 Removing the Battery Pack 3 3 Belt Clip 1 Slide the latch at the bottom of the battery pack in the direction of the arrow 1 and remove the battery pack 2 3 3 1 Attaching the Belt Clip I Fix the belt clip along the groove on the back of the product and turn the screw clockwise right 2 Confirm that attached the belt clip is securely There are cases when the screw loosens Check the screw occasionally The belt clip is adjusted for use with a maximum belt width of 8 centimeters 3 3 2 Removing the Belt Clip I Turn the screw counter clockwise left and remove the belt clip 3 4 Battery Pack To charge the Li ion battery pack EBP 73 please refer to Charging Battery Packs with a Desktop Charger P 23 and Charging Battery Packs with the DC Jack P 22 3 4 1 Attaching the Battery Pack 1 Align the catches on the transceiver with the grooves on the battery pack and push the battery pack in the direction of the arrow 1 The battery pack is not fully charged when shipped It must be charged before use Charging should be conducted within a CAUTION temperature range of 0 C to 45PC 32oFto 104 F Do not modify dismantle incinerate or immerse the battery pack in water as such actions can be dangerous Never short circuit the battery pack terminals as this can cause i damage to the equipment or lead to overheating the battery which i I may cause burns Unnecessary prolonged charging overcharging can deteriorate I battery performance The battery pack should be stored in a dry place where the temperature range is within 10 C to 45 C 14 F to 113 F Temperatures outside this range can cause the battery liquid to leak Exposure to prolonged high humidity can cause corrosion of metal components The battery pack is a consumable part When its operating time becomes considerably short after a normal charge it is likely the i i pack is exhausted and should be replaced with a new one i The battery pack is recyclable When its useful life is over it should be recycled by taking it to your local waste management or recycling facility Wipe off dirt and condensation from the surface of the transceiver battery pack and charger with a soft dry cotton cloth periodically lf you re not using the battery pack for an extended period charge it j once every 3 months to prevent deterioration of the batteries s O I I j i i i J i 2 Slide the latch In the direction of the arrow 2 20 Groove 21
