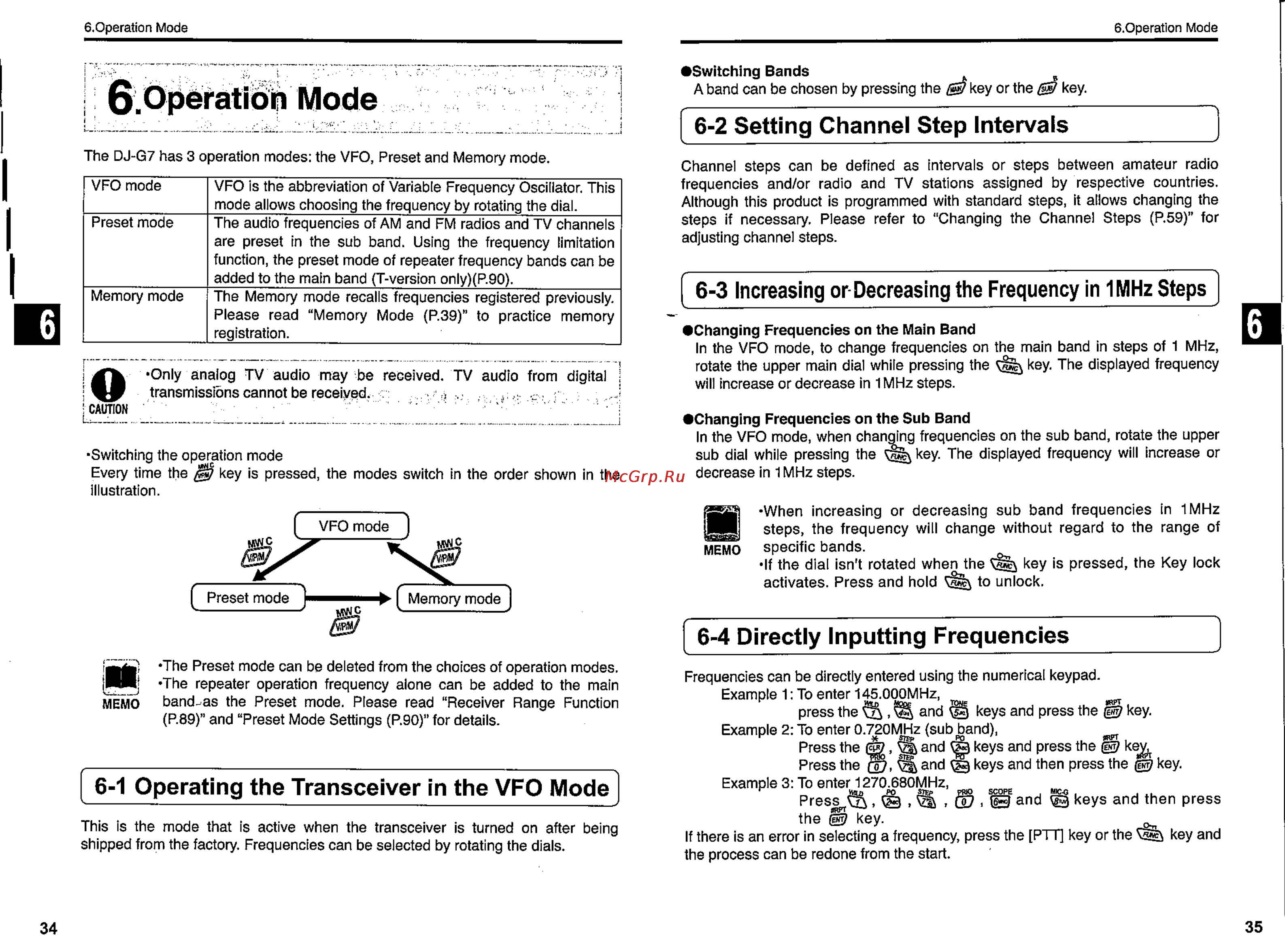

6 Operation Mode 6 Operation Mode 6 Operation Mode Switching Bands A band can be chosen by pressing the g key or the key B 6 2 Setting Channel Step Intervals The DJ G7 has 3 operation modes the VFO Preset and Memory mode VFO mode Preset mode Memory mode VFO is the abbreviation of Variable Frequency Oscillator This mode allows choosing the frequency by rotating the dial The audio frequencies of AM and FM radios and TV channels are preset in the sub band Using the frequency limitation function the preset mode of repeater frequency bands can be added to the main band T version only P 90 The Memory mode recalls frequencies registered previously Please read Memory Mode P 39 to practice memory registration Only analog TV audio may be received TV audio from digital transmissions cannot be received c CAUTION L _____ ________ _________ ______ _____ ______ _ _ ___________________ O Switching the operation mode Every time the 7 key is pressed the modes switch in the order shown in the illustration Channel steps can be defined as intervals or steps between amateur radio frequencies and or radio and TV stations assigned by respective countries Although this product is programmed with standard steps it allows changing the steps if necessary Please refer to Changing the Channel Steps P 59 for adjusting channel steps 6 3 Increasing or Decreasing the Frequency in 1MHz Steps Changing Frequencies on the Main Band In the VFO mode to change frequencies on the main band in steps of 1 MHz rotate the upper main dial while pressing the key The displayed frequency will increase or decrease in 1 MHz steps Changing Frequencies on the Sub Band In the VFO mode when changing frequencies on the sub band rotate the upper sub dial while pressing the key The displayed frequency will increase or decrease in 1 MHz steps MEMO When increasing or decreasing sub band frequencies in 1MHz steps the frequency will change without regard to the range of specific bands If the dial isn t rotated when the key is pressed the Key lock activates Press and hold to unlock 6 4 Directly Inputting Frequencies MEMO The Preset mode can be deleted from the choices of operation modes The repeater operation frequency alone can be added to the main band as the Preset mode Please read Receiver Range Function P 89 and Preset Mode Settings P 90 for details 6 1 Operating the Transceiver in the VFO Mode This is the mode that is active when the transceiver is turned on after being shipped from the factory Frequencies can be selected by rotating the dials 34 Frequencies can be directly entered using the numerical keypad Example 1 To enter 145 000MHz press the and keys and press the key Example 2 To enter 0 720MHz sub band Press the and keys and press the ke Press the and keys and then press the key Example 3 To enter 1270 680MHz Press va and keys and then press the key If there is an error in selecting a frequency press the PTT key or the key and the process can be redone from the start 35
