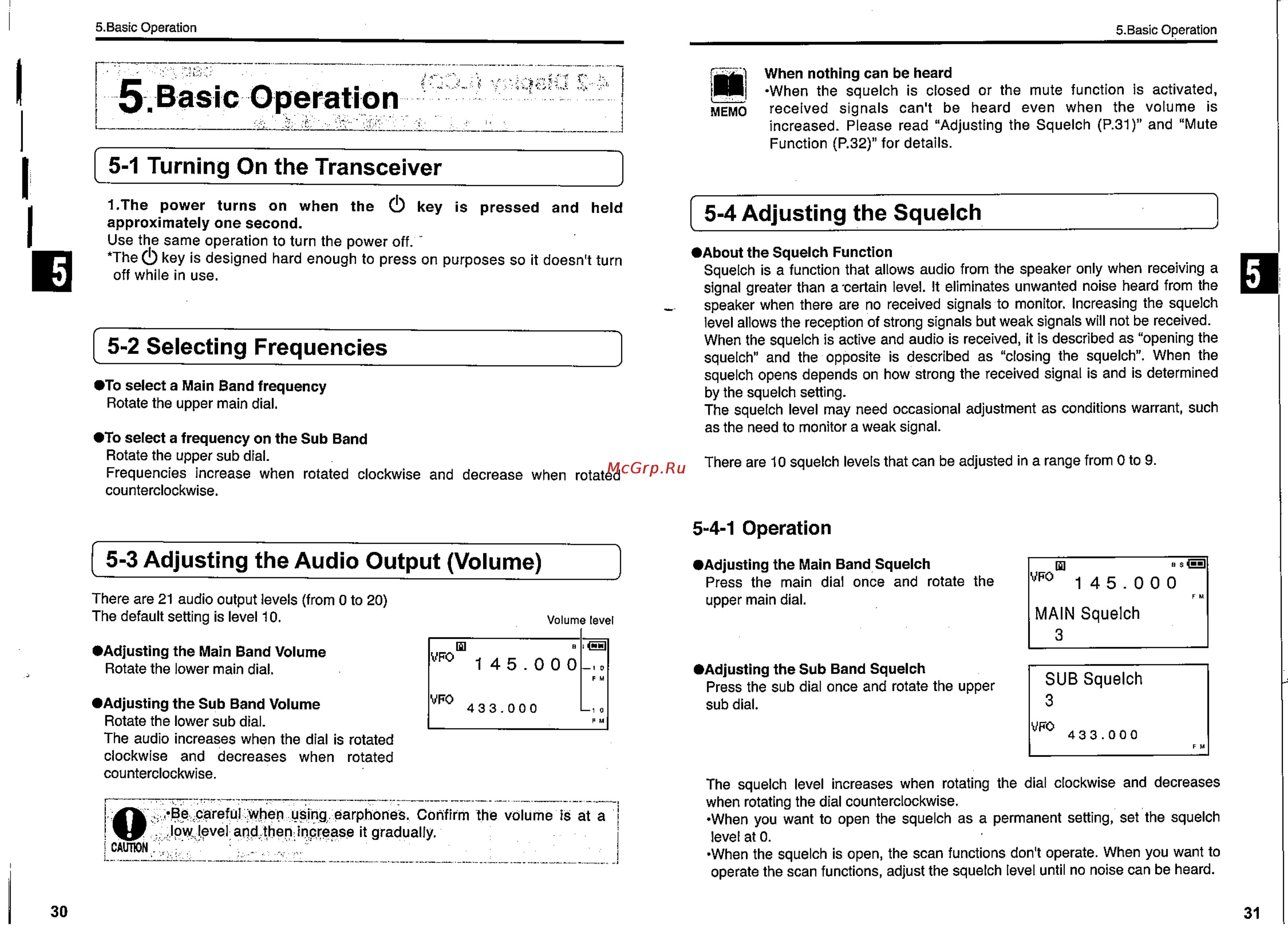

ö Bastc Operation 5 Basic Operation 5 Basic Operation MEMO When nothing can be heard When the squelch is closed or the mute function is activated received signals can t be heard even when the volume is increased Please read Adjusting the Squelch P 31 and Mute Function P 32 for details 5 1 Turning On the Transceiver I The power turns on when the 0 key is pressed and held approximately one second Use the same operation to turn the power off The 0 key is designed hard enough to press on purposes so it doesn t turn off while in use 5 4 Adjusting the Squelch About the Squelch Function Squelch is a function that allows audio from the speaker only when receiving a signal greater than a certain level It eliminates unwanted noise heard from the speaker when there are no received signals to monitor Increasing the squelch level allows the reception of strong signals but weak signals will not be received When the squelch is active and audio is received it is described as opening the squelch and the opposite is described as closing the squelch When the squelch opens depends on how strong the received signal is and is determined by the squelch setting The squelch level may need occasional adjustment as conditions warrant such as the need to monitor a weak signal 5 2 Selecting Frequencies To select a Main Band frequency Rotate the upper main dial To select a frequency on the Sub Band Rotate the upper sub dial Frequencies increase when rotated clockwise and decrease when rotated counterclockwise There are 10 squelch levels that can be adjusted in a range from 0 to 9 5 4 1 Operation 5 3 Adjusting the Audio Output Volume There are 21 audio output levels from 0 to 20 The default setting is level 10 Adjusting the Main Band Volume Rotate the lower main dial Adjusting the Sub Band Volume Rotate the lower sub dial The audio increases when the dial is rotated clockwise and decreases when rotated counterclockwise Ы VF0 VF 1 4 5 0 0 0 4 3 3 000 в 10 FM 10 FM цд VF0 в s S3 1 4 5 0 0 0 FM MAIN Squelch 3 Volume level X Be careful When using earphones Confirm the volume is at a low level and then increase it gradually CAUTION i 30 Adjusting the Main Band Squelch Press the main dial once and rotate the upper main dial Adjusting the Sub Band Squelch Press the sub dial once and rotate the upper sub dial SUB Squelch 3 VF 4 3 3 000 FM The squelch level increases when rotating the dial clockwise and decreases when rotating the dial counterclockwise When you want to open the squelch as a permanent setting set the squelch level at 0 When the squelch is open the scan functions don t operate When you want to operate the scan functions adjust the squelch level until no noise can be heard 31
