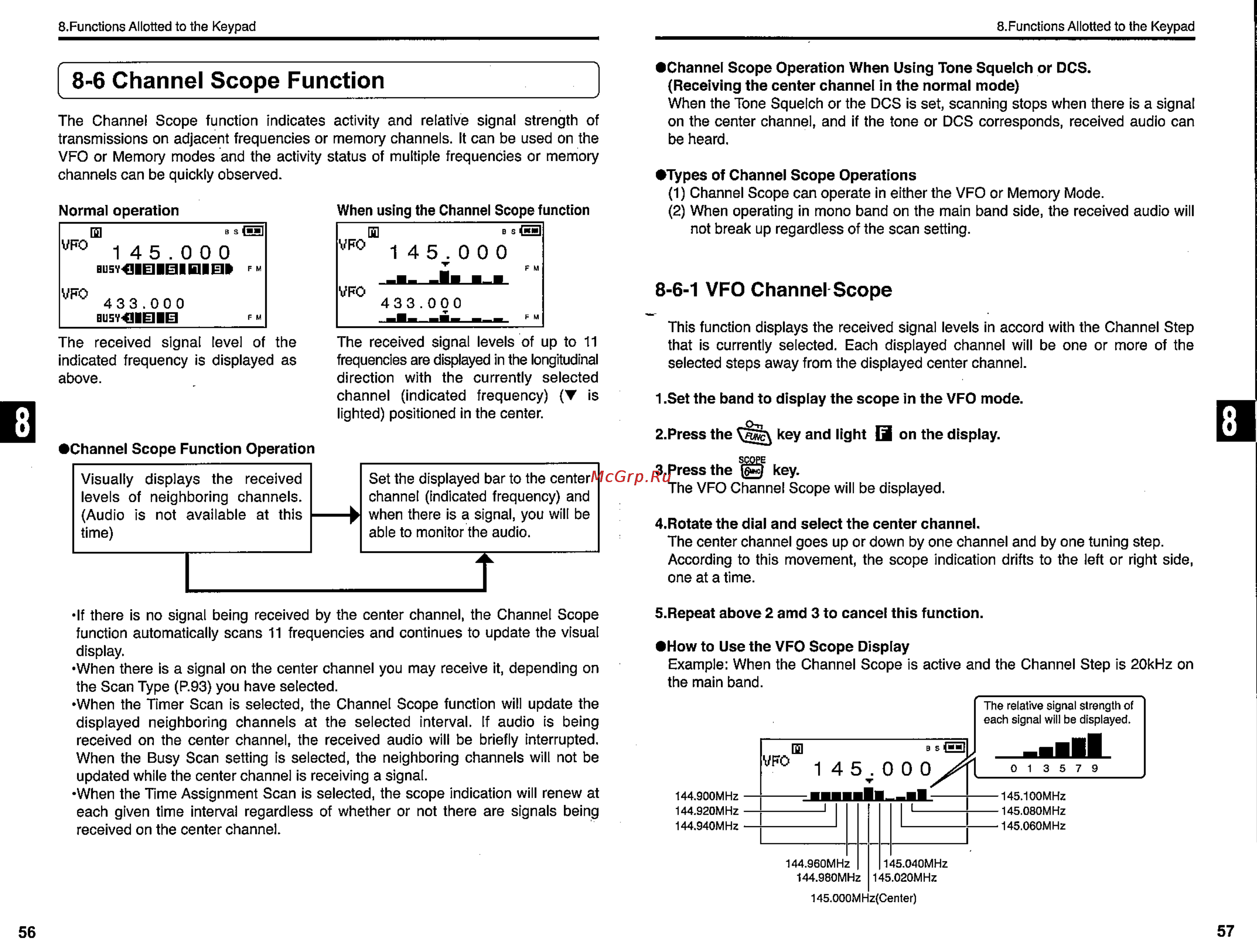

8 Functions Allotted to the Keypad 8 Functions Allotted to the Keypad 8 6 Channel Scope Function The Channel Scope function indicates activity and relative signal strength of transmissions on adjacent frequencies or memory channels It can be used on the VFO or Memory modes and the activity status of multiple frequencies or memory channels can be quickly observed Normal operation WF0 B s B3 1 4 5 0 0 0 When using the Channel Scope function E B s ea VF0 1 4 5 0 0 0 FM VFO 433 00 0 0U5V OISIB VFO FM The received signal level of the indicated frequency is displayed as above 433 000 F M The received signal levels of up to 11 frequencies are displayed in the longitudinal direction with the currently selected channel indicated frequency is lighted positioned in the center Channel Scope Operation When Using Tone Squelch or DCS Receiving the center channel in the normal mode When the Tone Squelch or the DCS is set scanning stops when there is a signal on the center channel and if the tone or DCS corresponds received audio can be heard Types of Channel Scope Operations 1 Channel Scope can operate in either the VFO or Memory Mode 2 When operating in mono band on the main band side the received audio will not break up regardless of the scan setting 8 6 1 VFO Channel Scope This function displays the received signal levels in accord with the Channel Step that is currently selected Each displayed channel will be one or more of the selected steps away from the displayed center channel 1 Set the band to display the scope in the VFO mode 2 Press the key and light B on the display Channel Scope Function Operation 3 Press the E key The VFO Channel Scope will be displayed 4 Rotate the dial and select the center channel The center channel goes up or down by one channel and by one tuning step According to this movement the scope indication drifts to the left or right side one at a time If there is no signal being received by the center channel the Channel Scope function automatically scans 11 frequencies and continues to update the visual display When there is a signal on the center channel you may receive it depending on the Scan Type P 93 you have selected When the Timer Scan is selected the Channel Scope function will update the displayed neighboring channels at the selected interval If audio is being received on the center channel the received audio will be briefly interrupted When the Busy Scan setting is selected the neighboring channels will not be updated while the center channel is receiving a signal When the Time Assignment Scan is selected the scope indication will renew at each given time interval regardless of whether or not there are signals being received on the center channel 5 Repeat above 2 amd 3 to cancel this function How to Use the VFO Scope Display Example When the Channel Scope is active and the Channel Step is 20kHz on the main band 144 900MHz 144 920MHz 144 940MHz 145 000MHz Center 56 57
