Alinco DJ-G7 [14/58] 1 transceiver functions and operations

Содержание

• Alinco 1
• Alinco inc 1
• Instruction manual 1
• Notice i compliance information statement 2
• Accessories list 3
• Contents 1 3
• Features 3
• Installing accessories 19 3
• Names and operations of transceiver controls 6 3
• Warning ю 3
• Basic operations 0 4
• Convenient functions 4 4
• Functions allotted to the keypad 51 4
• Memory mode 39 4
• Operation modes 34 4
• Channel indication mode 04 5
• Cloning pc connection functions 05 5
• Maintenance and reference 09 5
• Reset functions 108 5
• Set mode 1 5
• Specifications 113 5
• 1 warning 6
• A danger 6
• Caution 8
• 2 before transmitting 9
• 3 introduction 9
• 1 1 attaching the antenna 10
• 1 2 removing the antenna 10
• 1 antenna 10
• 2 hand strap 10
• 3 installing accessories 10
• 3 1 attaching the belt clip 11
• 3 2 removing the belt clip 11
• 3 belt clip 11
• 4 1 attaching the battery pack 11
• 4 2 removing the battery pack 11
• 4 battery pack 11
• 5 charging battery packs with the dc jack 3 6 charging battery packs with a desktop charger 12
• 7 prevent short circuiting the battery pack 12
• 8 dry cell pack optional 3 9 battery charge level icon 13
• O busy dlellsiaiel 13
• 1 2 sides 14
• 1 transceiver functions and operations 14
• 1 3 keypad 15
• 2 display lcd 15
• Hu5tmute 15
• Isisie1ie1 15
• T tsq dcs 15
• 1 turning on the transceiver 16
• 2 selecting frequencies 16
• 3 adjusting the audio output volume 16
• 4 1 operation 16
• 4 adjusting the squelch 16
• Basic operation 16
• Main squelch 16
• Sub squelch 3 16
• 5 monitor function 17
• 6 mute function 17
• 7 1 operating in mono band 17
• 7 2 switching the sub band and main band frequencies 17
• 7 choosing the operation band 17
• 1 operating the transceiver in the vfo mode 18
• 2 setting channel step intervals 18
• 3 increasing or decreasing the frequency in 1mhz steps 18
• 4 directly inputting frequencies 18
• 6 operation mode 18
• 5 operating the transceiver in the preset mode 19
• 6 reception 19
• 7 transmitting 19
• Fm 8 8 00 w 19
• 1 the types of memories and how to use them 20
• 8 tone call function 20
• 9 repeater function 20
• Memory mode 20
• 2 registering memory channels 21
• 3 recalling memory channels 22
• 4 deleting memory channels 22
• Clear ent key cancel other 22
• 5 moving memory channels 7 6 registering memories for the transmitter detecting function 23
• 7 registering the call channel 23
• 8 1 registering the quick memory 24
• 8 2 recalling the quick memory 24
• 8 quick memory 7 10 memory name function 24
• 9 memory skip function 24
• 1 shortcut function 26
• 2 transmitter output setting 26
• A 1 a snni i ä 26
• Functions allotted to the keypad 26
• Go as sb 26
• Si to i a is s sb 26
• Tx power low powerl 26
• V ë 3j s 26
• 3 attenuator function 8 5 tone squelch function dcs function settings 27
• 4 modulation mode setting 27
• 5 1 tone squelch function 27
• Ctcss encode 27
• 5 2 dcs function 28
• Dcs 023 28
• 6 1 vfo channel scope 29
• 6 channel scope function 29
• U5v oisib f m 29
• 00 f m 30
• 6 2 memory channel scope 30
• 7 changing the channel steps 30
• 8 microphone gain setting 30
• Step 20khz 30
• 10 priority function 31
• 11 shift setting 31
• 12 copying a memory channel to the vfo mode 31
• 9 recalling the call channels 31
• 13 xbr cross band repeater mode t version only 32
• 14 rit txit operation 32
• 1 1 howto lock keys 33
• 1 keylock function 33
• 2 scan function 33
• 3 vfo scan 33
• I 9 convenient functions 33
• 4 preset scan 9 6 program scan 34
• 5 memory scan 34
• 7 tone scan 34
• Prg scan 0 34
• Single bank scan 34
• Tone scan 34
• 8 dcs scan 35
• 9 sweep scan 35
• Dcs scan 35
• 10 transmitter detecting function 36
• 00 f m 37
• 1 1 language 37
• 1 2 illumination 37
• 1 3 dimmer 37
• 1 4 screen contrast 37
• 1 screen display 37
• Dimmer 37
• Illumination 5sec 37
• Language 1 english 37
• Screen contrast 37
• Screen display 37
• 1 5 font size 38
• 1 6 font bold 38
• 1 7 welcome message display 38
• 2 1 auto power off 38
• 2 2 bs battery save ratio 38
• 2 power batt ___________________________ 38
• Auto power off 38
• Bs ratio 38
• Font size small 38
• 2 3 battery type 39
• 3 1 beep sound lv level 39
• 3 sound 39
• Battery type battery pack 39
• Beep sound lv 39
• 00 f m 40
• 3 2 pager 40
• 3 3 end beep 40
• 4 1 vox 40
• 4 transmitter 40
• End beep off 40
• Pager off 40
• Vox level 40
• Vox off 40
• 4 2 tot time out timer 41
• 4 3 tot penalty 41
• 4 4 bclo busy channel lock out 41
• 4 5 tone burst 41
• 4 6 full duplex setting 41
• Bclo off 41
• Full duplex permitted 41
• Tone burst call 41
• Tot off 41
• Tot penalty off 41
• 5 1 auto repeater set 42
• 5 repeater 10 6 dtmf dual tone multi frequency 42
• 6 1 auto dialer 42
• Auto dialer 42
• 00 f m 43
• 6 2 dtmf wait time 43
• 6 3 dtmf burst period for the first number 43
• Dtmf 1st 100ms 43
• Wait timing 43
• 00 f m 44
• 5 0 0 f u 44
• 6 4 dtmf burst time 44
• 6 5 dtmf pause time 44
• 7 1 am antenna settings 44
• 7 reception settings 44
• Am antenna bar antenna 44
• Dtmf burst time 100ms 44
• Dtmf pause time 100ms 44
• 7 2 clock noise shift settings 45
• 7 3 tone sq priority settings 45
• 7 4 dcs operation settings 45
• 7 5 tsf operation settings 45
• Clk noise shift off 45
• Dcs operation normal 45
• E 8 sffg 45
• E 8 sss 45
• Tone sq pri active band 45
• Tsf operation always 45
• 7 6 receiver range function 46
• 7 7 preset mode settings 46
• 8 1 bank link setting function 46
• 8 memory settings 46
• Bank link grp 0 banko link off 46
• 00 f m 47
• 8 2 over write function 47
• 9 1 scan mode settings 47
• 9 scanning settings 47
• Busy scan________ 47
• Overwrite prohibited 47
• Scan mode 47
• 10 bug detector settings t version only 48
• 9 2 scan skip settings 48
• 9 3 priority interval setting 48
• 9 4 priority duration setting 48
• 9 5 backlight setting while scanning 48
• Pri duration busy 48
• Pri interval 48
• Scan skip skip 48
• 10 1 activate settings 49
• 10 2 detect mode settings 50
• 10 3 sensitivity settings 50
• 11 1 key lock mode settings 50
• 11 key assignment 50
• Detect mode silent 50
• Key lock mode all 50
• Sensitivity 50
• 11 2 moni key mode setting 51
• 11 3 moni operation settings 51
• 11 4 setting the bands subject to moni key operations 51
• 11 5 mainband dial setting 51
• 11 6 dial function setting 51
• Dial freq upper ring af lower 51
• Mainband dial l main sub r 51
• Moni key mode monitor 51
• Moni operation push 51
• 00 f m 52
• 11 7 short cut wild key setting 52
• 11 8 band transition setting 52
• 11 9 set mode exit setting 52
• Band transition no 52
• Lamp key assign illumination 52
• Q s s s3 52
• Set mode exit manual 52
• Wild key assign language 52
• 1 howto connect 53
• 12 cloning pc connection functions 53
• 2 operating the transceiver sending data 53
• Channel indication mode 53
• 3 operating the radio receiving data 54
• 4 1 packet communication connections 54
• 4 packet communications 54
• 1 partial reset 55
• 1 troubleshooting 55
• 2 all reset 55
• Reset functions 14 maintenance and reference 55
• 2 options 56
• 2 1 microphone speaker plug conversion cable eds 14 57
• Cations 57
• General 57
• Transmitter 57
• Receiver 58

Похожие устройства

• Samsung P843 Инструкция по эксплуатации
• Philips HR 2737/70 Инструкция по эксплуатации
• Dragon SS-485H Инструкция по эксплуатации
• Panasonic TX-34P700T Инструкция по эксплуатации
• Philips HR 2744/40 Инструкция по эксплуатации
• Dragon CB-407 Инструкция по эксплуатации
• Konica Minolta Dynax 60 Инструкция по эксплуатации
• Entel HT-446 Инструкция по эксплуатации
• Bernina Bernette E92c Инструкция по эксплуатации
• Philips HR 1571/30 Инструкция по эксплуатации
• Grundig Satellit-750 Инструкция по эксплуатации
• Soundmax SM-DVD5101 Инструкция по эксплуатации
• Philips HR 1565/55 Инструкция по эксплуатации
• Hytera MD-785 Инструкция по эксплуатации
• Samsung P805J Инструкция по эксплуатации
• Philips HR 2870/50 Инструкция по эксплуатации
• Hytera MD-785G Инструкция по эксплуатации
• Panasonic TX-34P250T Инструкция по эксплуатации
• Philips HR 2000/70 Инструкция по эксплуатации
• Hytera PD-785 Инструкция по эксплуатации

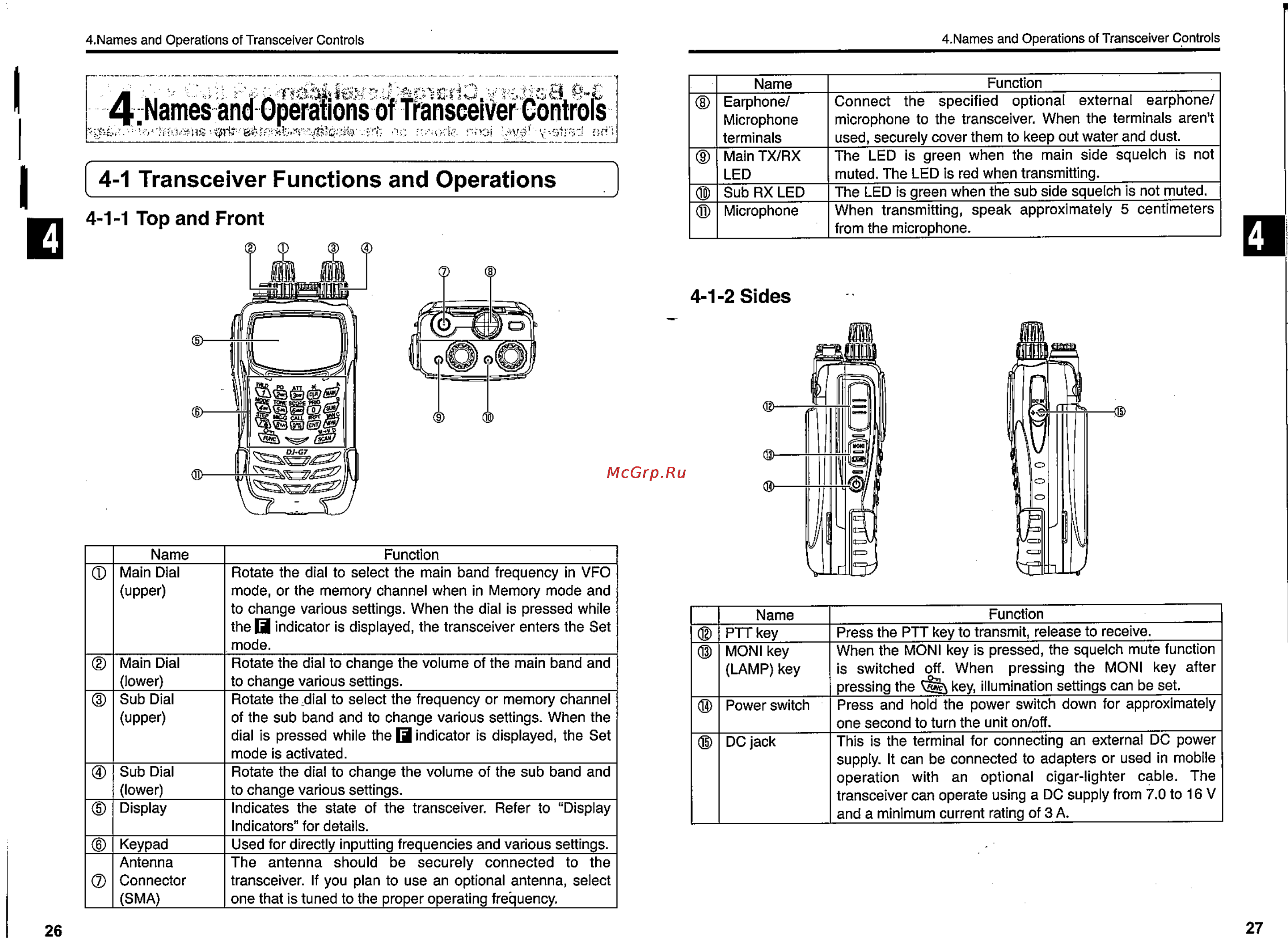

4 Names and Operations of Transceiver Controls 4 Names and Operations of Transceiver Controls 4 1 Transceiver Functions and Operations no Name Earphone Microphone terminals Main TX RX LED Sub RX LED Microphone Function Connect the specified optional external earphone microphone to the transceiver When the terminals aren t used securely cover them to keep out water and dust The LED is green when the main side squelch is not muted The LED is red when transmitting The LED is green when the sub side squelch is not muted When transmitting speak approximately 5 centimeters from the microphone 4 1 2 Sides Name Main Dial upper Main Dial lower Sub Dial upper Sub Dial lower Display Keypad Antenna Connector SMA 26 Function Rotate the dial to select the main band frequency in VFO mode or the memory channel when in Memory mode and to change various settings When the dial is pressed while the Q indicator is displayed the transceiver enters the Set mode Rotate the dial to change the volume of the main band and to change various settings Rotate the dial to select the frequency or memory channel of the sub band and to change various settings When the dial is pressed while the H indicator is displayed the Set mode is activated Rotate the dial to change the volume of the sub band and to change various settings Indicates the state of the transceiver Refer to Display Indicators for details Used for directly inputting frequencies and various settings The antenna should be securely connected to the transceiver If you plan to use an optional antenna select one that is tuned to the proper operating frequency Name PTT key MON I key LAMP key Power switch DC jack Function Press the PTT key to transmit release to receive When the MONI key is pressed the squelch mute function is switched off When pressing the MONI key after pressing the key illumination settings can be set Press and hold the power switch down for approximately one second to turn the unit on off This is the terminal for connecting an external DC power supply It can be connected to adapters or used in mobile operation with an optional cigar lighter cable The transceiver can operate using a DC supply from 7 0 to 16 V and a minimum current rating of 3 A 27
