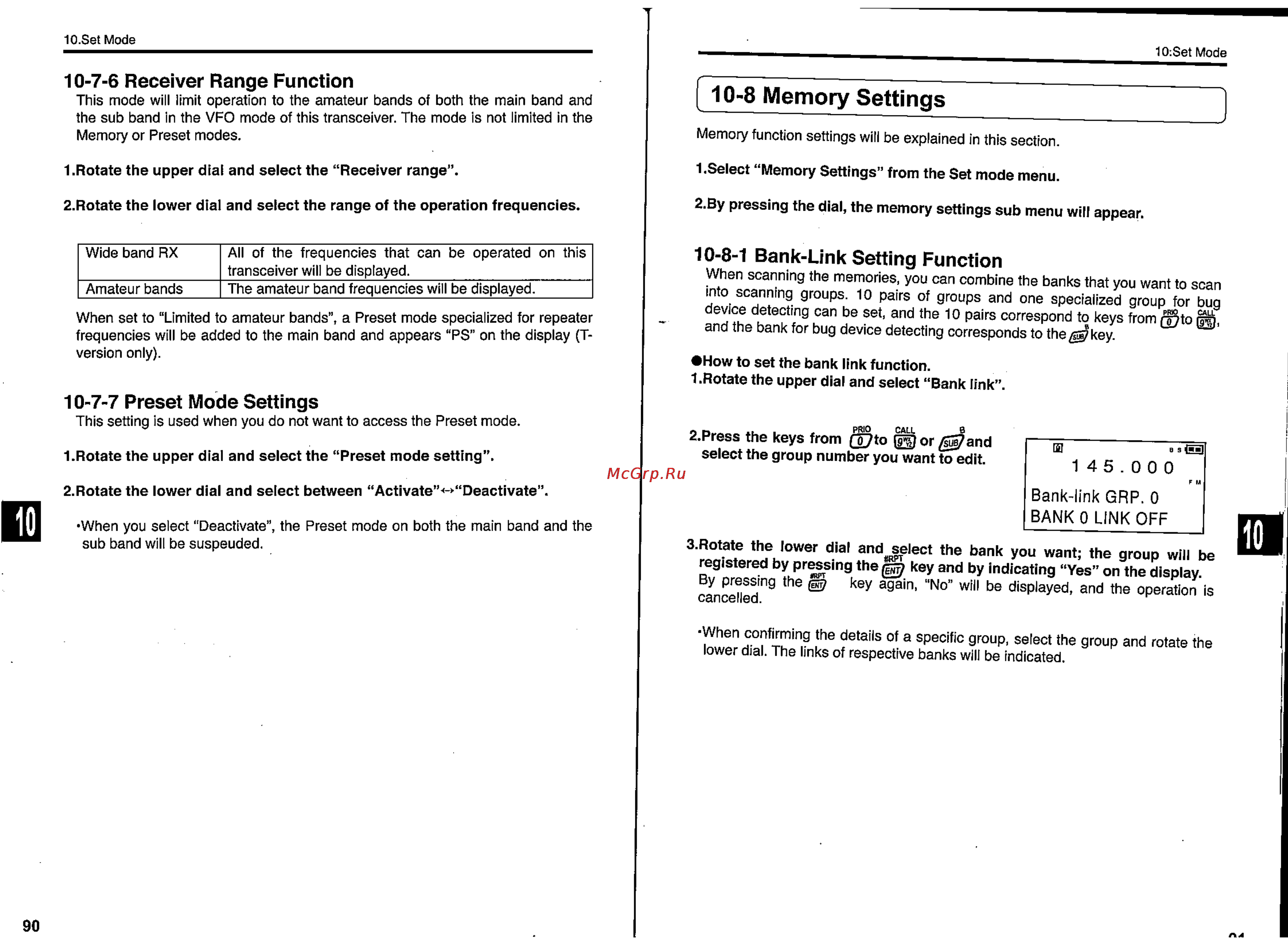

1O Set Mode 10 Set Mode 10 7 6 Receiver Range Function This mode will limit operation to the amateur bands of both the main band and the sub band in the VFO mode of this transceiver The mode is not limited in the Memory or Preset modes 10 8 Memory Settings Memory function settings will be explained in this section 1 Rotate the upper dial and select the Receiver range 1 Select Memory Settings from the Set mode menu 2 Rotate the lower dial and select the range of the operation frequencies 2 By pressing the dial the memory settings sub menu will appear Wide band RX Amateur bands All of the frequencies that can be operated on this transceiver will be displayed The amateur band frequencies will be displayed When set to Limited to amateur bands a Preset mode specialized for repeater frequencies will be added to the main band and appears PS on the display Tversion only 10 8 1 Bank Link Setting Function When scanning the memories you can combine the banks that you want to scan into scanning groups 10 pairs of groups and one specialized group for bug device detecting can be set and the 10 pairs correspond to keys from to and the bank for bug device detecting corresponds to the key How to set the bank link function 1 Rotate the upper dial and select Bank link 10 7 7 Preset Mode Settings This setting is used when you do not want to access the Preset mode 1 Rotate the upper dial and select the Preset mode setting 2 Rotate the lower dial and select between Activate Deactivate When you select Deactivate the Preset mode on both the main band and the sub band will be suspeuded 2 Press the keys from to or 7and select the group number you want to edit Q B sffJI 145 000 Bank link GRP 0 BANKO LINK OFF 3 Rotate the lower dial and elect the bank you want the group will be registered by pressing theg key and by indicating Yes on the display By pressing the key again No will be displayed and the operation is cancelled When confirming the details of a specific group select the group and rotate the lower dial The links of respective banks will be indicated 90
