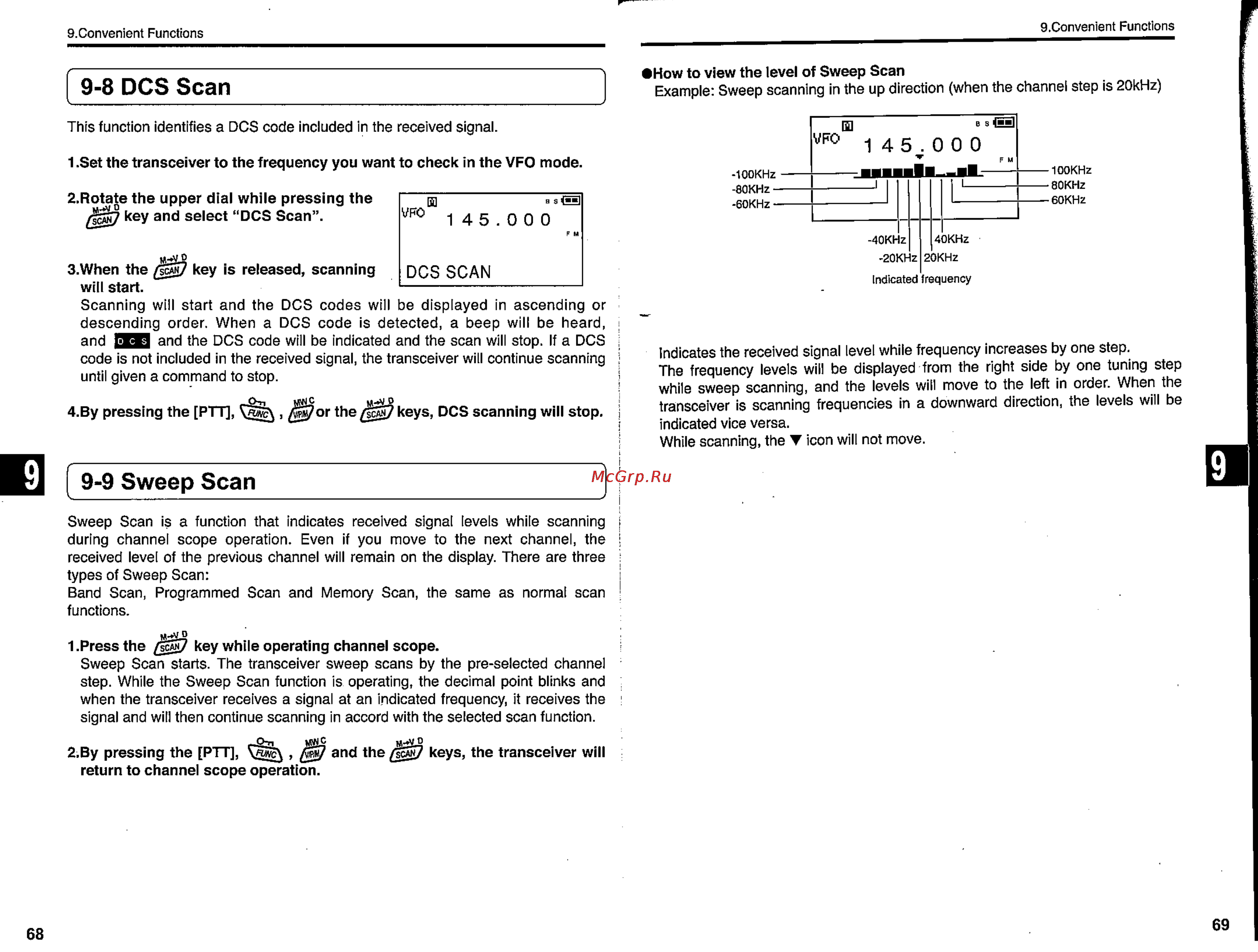

g Convenient Functions 9 Convenient Functions How to view the level of Sweep Scan Example Sweep scanning in the up direction when the channel step is 20kHz 9 8 DCS Scan This function identifies a DCS code included in the received signal 1 Set the transceiver to the frequency you want to check in the VFO mode 2 Rotate the upper dial while pressing the 7 key and select DCS Scan E vp0 B s sg 1 4 5 0 0 0 FM 3 When the key is released scanning DCS SCAN will start Scanning will start and the DCS codes will be displayed in ascending or descending order When a DCS code is detected a beep will be heard and and the DCS code will be indicated and the scan will stop If a DCS code is not included in the received signal the transceiver will continue scanning until given a command to stop i Or tffN C 4 By pressing the PTT wc or the SCAN keys DCS scanning will stop j Indicates the received signal level while frequency increases by one step The frequency levels will be displayed from the right side by one tuning step while sweep scanning and the levels will move to the left in order When the transceiver is scanning frequencies in a downward direction the levels will be indicated vice versa While scanning the icon will not move 9 9 Sweep Scan E i Sweep Scan is a function that indicates received signal levels while scanning during channel scope operation Even if you move to the next channel the received level of the previous channel will remain on the display There are three types of Sweep Scan Band Scan Programmed Scan and Memory Scan the same as normal scan functions i I I 1 Press the key while operating channel scope Sweep Scan starts The transceiver sweep scans by the pre selected channel step While the Sweep Scan function is operating the decimal point blinks and when the transceiver receives a signal at an indicated frequency it receives the signal and will then continue scanning in accord with the selected scan function ___ Q n MW C 2 By pressing the PTT ywc return to channel scope operation 68 and the keys the transceiver will 69
