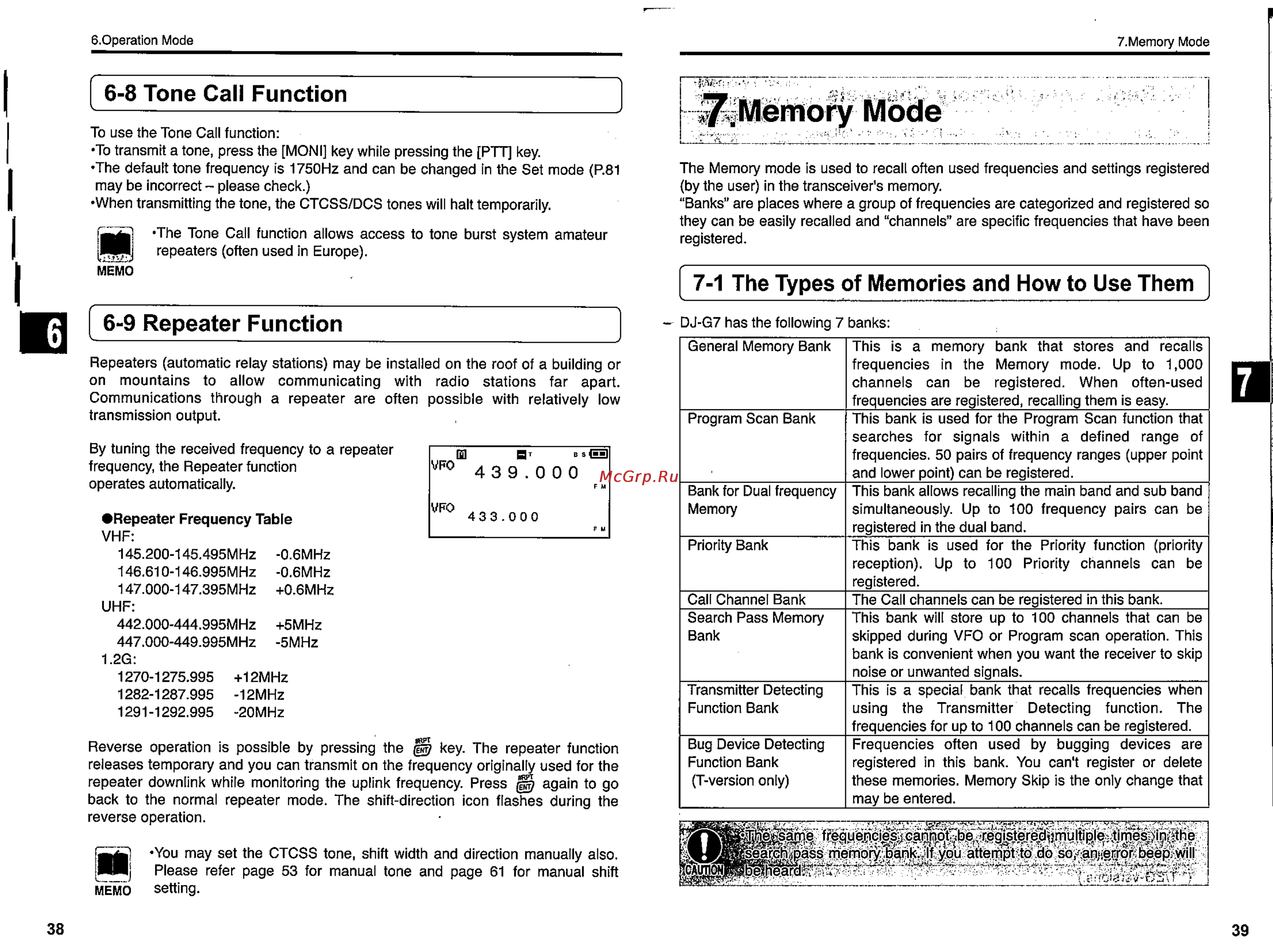

6 Operation Mode 7 Memory Mode 7 6 8 Tone Call Function 7 Memory Mode To use the Tone Call function To transmit a tone press the MONI key while pressing the PTT key The default tone frequency is 1750Hz and can be changed in the Set mode P 81 may be incorrect please check When transmitting the tone the CTCSS DCS tones will halt temporarily The Tone Call function allows access to tone burst system amateur repeaters often used In Europe MEMO The Memory mode is used to recall often used frequencies and settings registered by the user in the transceiver s memory Banks are places where a group of frequencies are categorized and registered so they can be easily recalled and channels are specific frequencies that have been registered 7 1 The Types of Memories and How to Use Them 6 9 Repeater Function DJ G7 has the following 7 banks General Memory Bank Repeaters automatic relay stations may be installed on the roof of a building or on mountains to allow communicating with radio stations far apart Communications through a repeater are often possible with relatively low transmission output By tuning the received frequency to a repeater frequency the Repeater function operates automatically El VF0 QT 4 3 9 0 0 0 VFO Repeater Frequency Table VHF 145 200 145 495MHz 0 6MHz 146 610 146 995MHz 0 6MHz 147 000 147 395MHz 0 6MHz UHF 442 000 444 995MHz 5MHz 447 000 449 995MHZ 5MHz 1 2G 1270 1275 995 12MHz 1282 1287 995 12MHz 1291 1292 995 20MHz 7 Program Scan Bank B S fl FM 433 000 Bank for Dual frequency Memory FM Reverse operation is possible by pressing the key The repeater function releases temporary and you can transmit on the frequency originally used for the repeater downlink while monitoring the uplink frequency Press again to go back to the normal repeater mode The shift direction icon flashes during the reverse operation You may set the CTCSS tone shift width and direction manually also Please refer page 53 for manual tone and page 61 for manual shift MEMO setting Priority Bank Call Channel Bank Search Pass Memory Bank Transmitter Detecting Function Bank Bug Device Detecting Function Bank T version only This is a memory bank that stores and recalls frequencies in the Memory mode Up to 1 000 channels can be registered When often used frequencies are registered recalling them is easy This bank is used for the Program Scan function that searches for signals within a defined range of frequencies 50 pairs of frequency ranges upper point and lower point can be registered This bank allows recalling the main band and sub band simultaneously Up to 100 frequency pairs can be registered in the dual band This bank is used for the Priority function priority reception Up to 100 Priority channels can be registered The Call channels can be registered in this bank This bank will store up to 100 channels that can be skipped during VFO or Program scan operation This bank is convenient when you want the receiver to skip noise or unwanted signals This is a special bank that recalls frequencies when using the Transmitter Detecting function The frequencies for up to 100 channels can be registered Frequencies often used by bugging devices are registered in this bank You can t register or delete these memories Memory Skip is the only change that may be entered Ps r jpass memory bank If you attempt to do so an error beep will Mj 38 39
