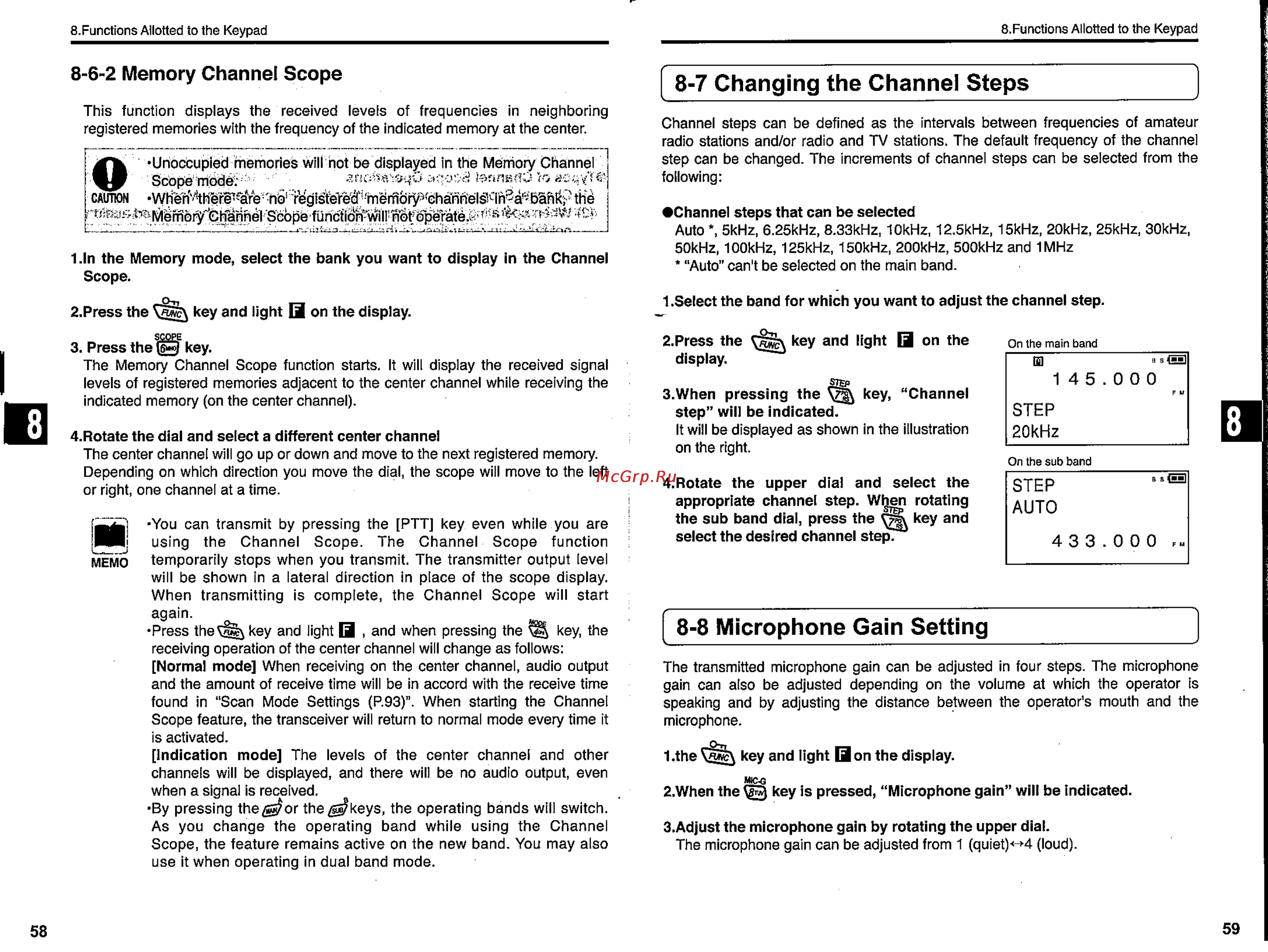

S Functions Allotted to the Keypad 8 Functions Allotted to the Keypad 8 6 2 Memory Channel Scope This function displays the received levels of frequencies in neighboring registered memories with the frequency of the indicated memory at the center Unoccupied memories will not be displayed in the Memory Channel Scope mode J tewwiv re CAUTION When Wr re h oir O 1 ln the Memory mode select the bank you want to display in the Channel Scope 2 Press the key and light H on the display 3 Press the uA key The Memory Channel Scope function starts It will display the received signal levels of registered memories adjacent to the center channel while receiving the indicated memory on the center channel 4 Rotate the dial and select a different center channel The center channel will go up or down and move to the next registered memory Depending on which direction you move the dial the scope will move to the left or right one channel at a time MEMO 58 You can transmit by pressing the PTT key even while you are using the Channel Scope The Channel Scope function temporarily stops when you transmit The transmitter output level will be shown in a lateral direction in place of the scope display When transmitting is complete the Channel Scope will start again Press the key and light Q and when pressing the key the receiving operation of the center channel will change as follows Normal mode When receiving on the center channel audio output and the amount of receive time will be in accord with the receive time found in Scan Mode Settings P 93 When starting the Channel Scope feature the transceiver will return to normal mode every time it is activated Indication mode The levels of the center channel and other channels will be displayed and there will be no audio output even when a signal is received By pressing the or the keys the operating bands will switch As you change the operating band while using the Channel Scope the feature remains active on the new band You may also use it when operating in dual band mode 8 7 Changing the Channel Steps Channel steps can be defined as the intervals between frequencies of amateur radio stations and or radio and TV stations The default frequency of the channel step can be changed The increments of channel steps can be selected from the following Channel steps that can be selected Auto 5kHz 6 25kHz 8 33kHz 10kHz 12 5kHz 15kHz 20kHz 25kHz 30kHz 50kHz 100kHz 125kHz 150kHz 200kHz 500kHz and 1MHz Auto can t be selected on the main band 1 Select the band for which you want to adjust the channel step 2 Press the display keV and Qht H on the On the main band GO 145 000 STEP 3 When pressing the 7 key Channel step will be indicated It will be displayed as shown in the illustration on the right a FM STEP 20kHz On the sub band 4 Rotate the upper dial and select the appropriate channel step When rotating the sub band dial press the key and select the desired channel ste x STEP AUTO BsE3 4 3 3 0 0 0 FM 8 8 Microphone Gain Setting The transmitted microphone gain can be adjusted in four steps The microphone gain can also be adjusted depending on the volume at which the operator is speaking and by adjusting the distance between the operator s mouth and the microphone г От 1 the gqc key and light lion the display MOG 2 When the 3 кеУ s pressed Microphone gain will be indicated 3 Adjust the microphone gain by rotating the upper dial The microphone gain can be adjusted from 1 quiet 4 loud
