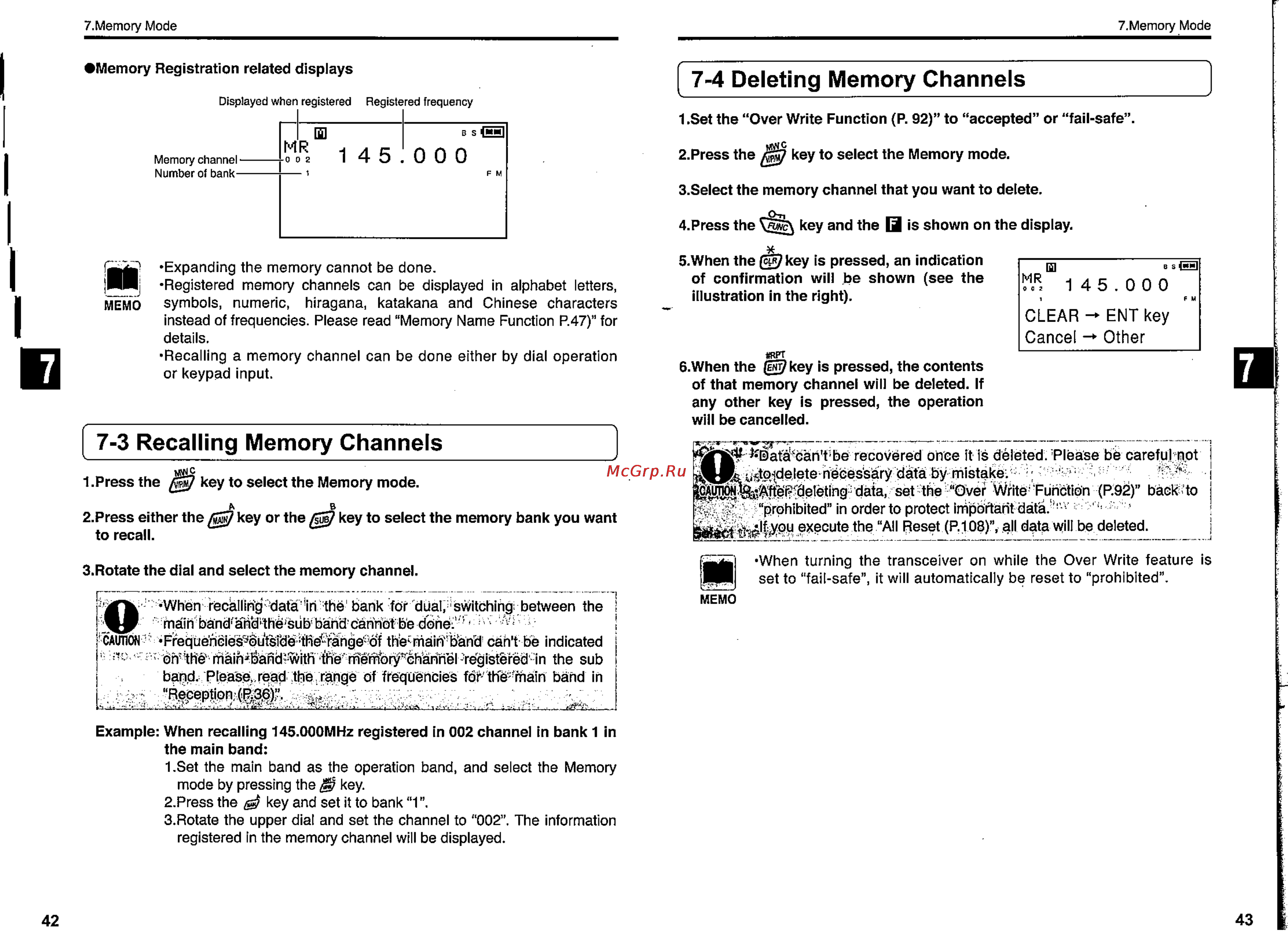

7 Memory Mode 7 Memory Mode Memory Registration related displays 7 4 Deleting Memory Channels Displayed when registered Registered frequency 1 Set the Over Write Function P 92 to accepted or fail safe 2 Press the 7 key to select the Memory mode 3 Select the memory channel that you want to delete Or 4 Press the key and the Q is shown on the display MEMO E Expanding the memory cannot be done Registered memory channels can be displayed in alphabet letters symbols numeric hiragana katakana and Chinese characters instead of frequencies Please read Memory Name Function P 47 for details Recalling a memory channel can be done either by dial operation or keypad input 7 3 Recalling Memory Channels 1 Press the 7 key to select the Memory mode A 2 Press either the to recall B key or the SUB7 key to select the memory bank you want 5 When the 7 key is pressed an indication of confirmation will be shown see the illustration in the right R 1 45 000 CLEAR ENT key Cancel Other RPT 6 When the key is pressed the contents of that memory channel will be deleted If any other key is pressed the operation will be cancelled jh at cari t e recovered once it is deleted Please be careful not i JIJRiktojdelete näöes säry data by mistake i data set the Over Write Function P 92 back to prohibited in orderto protect important data execute the All Reset P 108 all data will be deleted i When turning the transceiver on while the Over Write feature is set to fail safe it will automatically be reset to prohibited 3 Rotate the dial and select the memory channel When recalling data in thé bank for dual switching between the fnaih band àhd thè süb band cannot be done CAUTION Frequencies the main band can t be indicated ôh the m m the sub band Please read the rangé of frequencies for the main band in Reception BS KI MEMO Example When recalling 145 000MHz registered in 002 channel in bank 1 in the main band I Set the main band as the operation band and select the Memory mode by pressing the key 2 Press the key and set it to bank 1 3 Rotate the upper dial and set the channel to 002 The information registered in the memory channel will be displayed 42 43
