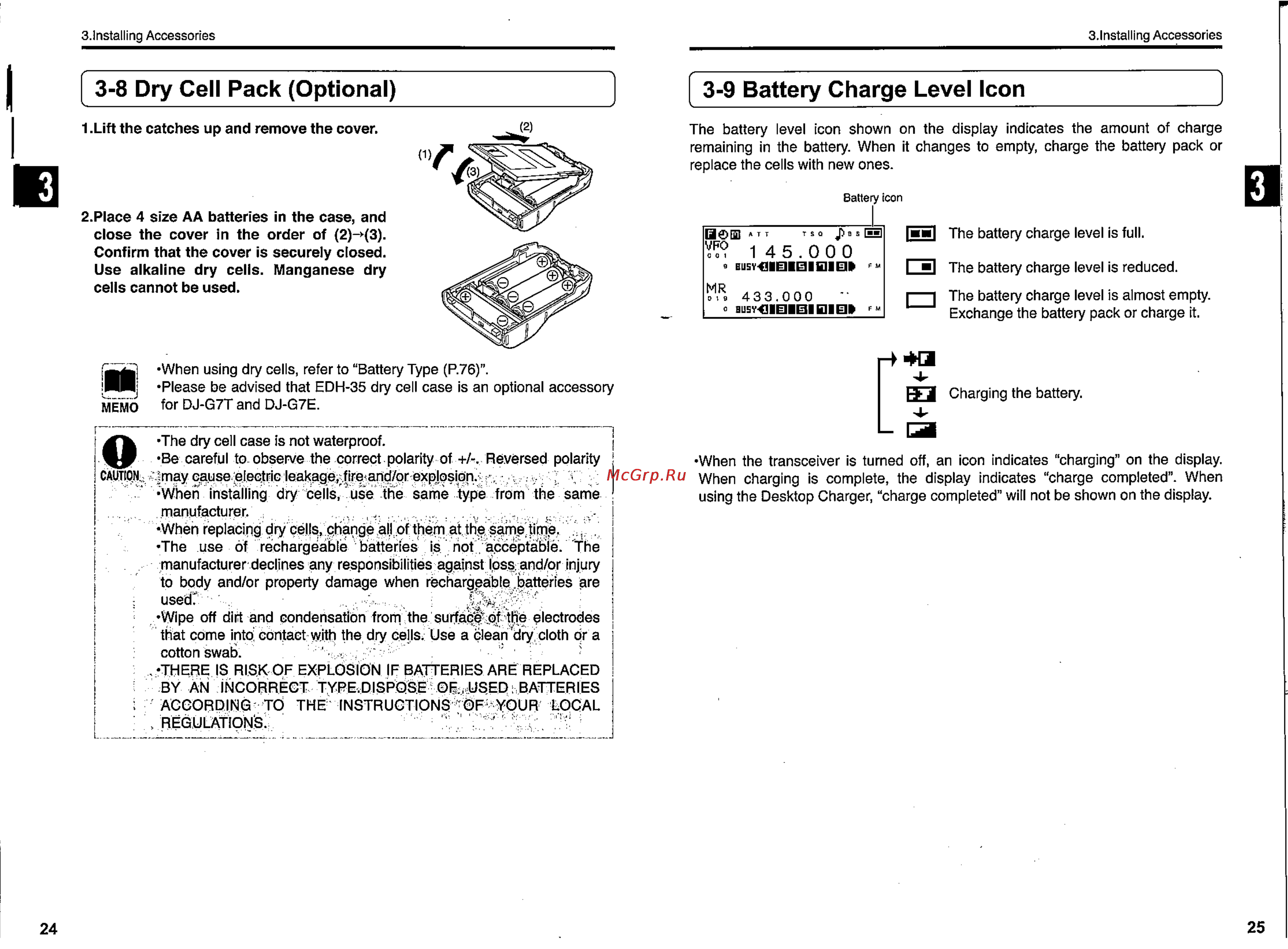

3 Installing Accessories 3 lnstalllng Accessories 3 8 Dry Cell Pack Optional 3 9 Battery Charge Level Icon 1 Lift the catches up and remove the cover The battery level icon shown on the display indicates the amount of charge remaining in the battery When it changes to empty charge the battery pack or replace the cells with new ones Battery icon 2 Place 4 size AA batteries in the case and close the cover in the order of 2 3 Confirm that the cover is securely closed Use alkaline dry cells Manganese dry cells cannot be used _____________________________L The battery charge level is full H E0 ATT TSÛ JiosEË W 1 4 5 000 BUSYOISISIEHEJ The battery charge level is reduced MR I 433 0 00 The battery charge level is almost empty Exchange the battery pack or charge it o BUSY dlEllSiaiEl When using dry cells refer to Battery Type P 76 Please be advised that EDH 35 dry cell case is an optional accessory MÉMO for DJ G7T and DJ G7E The dry cell case is not waterproof Be careful to observe the correct polarity of Reversed polarity CAUTION may cause Electric leakage fireand or expIpsion When installing dry ceils use the same type from the manufacturer When replacing dry cells change all of them at th The use of rechargeable batteries is not açcéptabië I manufacturer declines any responsibilities against loss and or injury j to body and or property damage when rechargeable batteries are used i Wipe off dirt and condensation from the surface of the electrodes I that come into contact with the dry cells Use a clean dry cloth or a i cotton swab i THERE IS RISK OF EXPLOSION IF BATTERIES ARE REPLACED i BY AN INCORRECT TYPE DISPQSE OF USED BATTERIES j ACCORDING TO THE INSTRUCTIONS OF YOUR LOCAL i REGULATIONS S3 Charging the battery O 24 H Ha When the transceiver is turned off an icon indicates charging on the display When charging is complete the display indicates charge completed When using the Desktop Charger charge completed will not be shown on the display same I The 25
