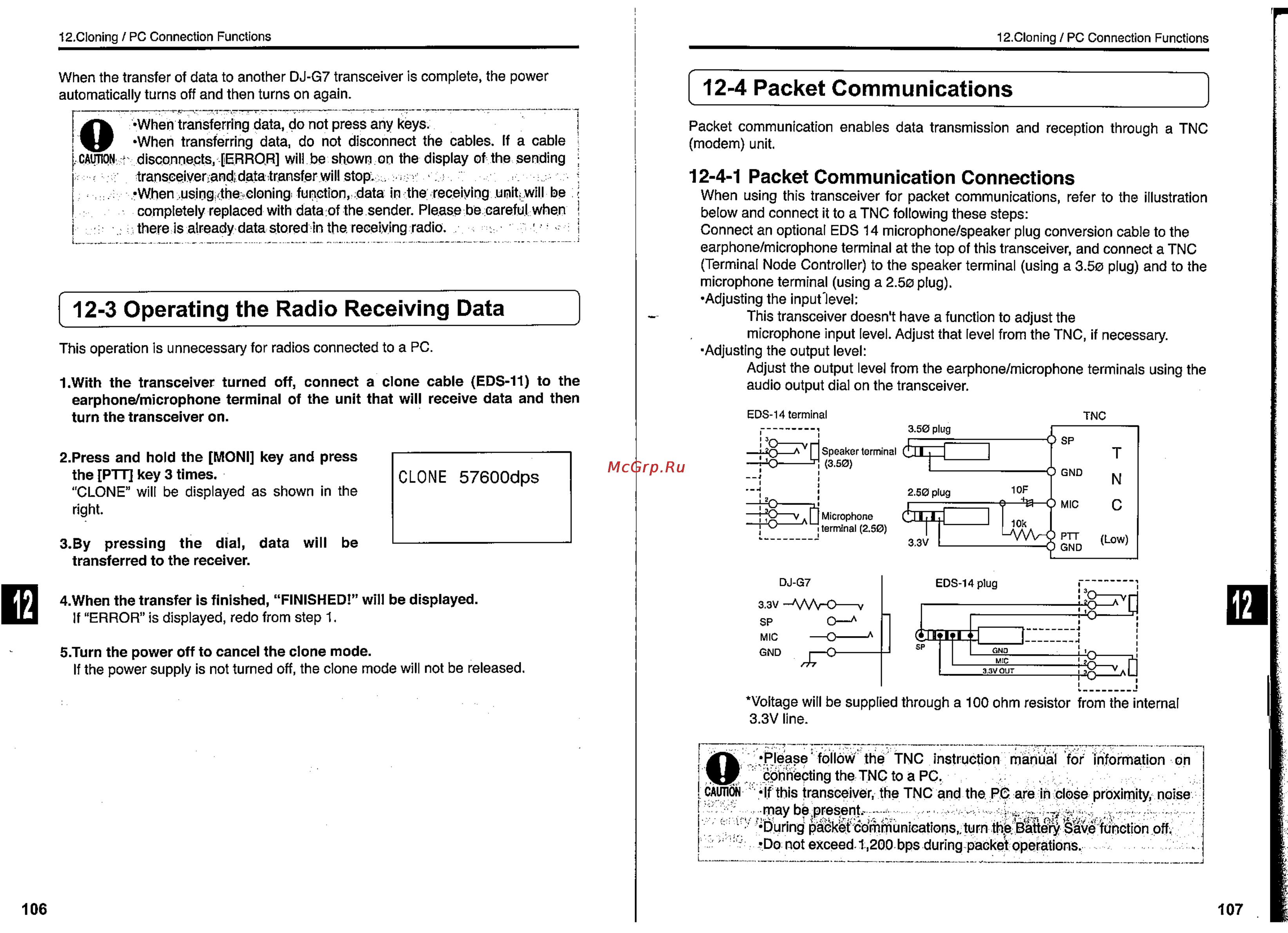

12 Cloning PC Connection Functions 12 Cloning PC Connection Functions When the transfer of data to another DJ G7 transceiver is complete the power automatically turns off and then turns on again When transferring data do not press any keys When transferring data do not disconnect the cables If a cable CAUTION disconnects ERROR will be shown on the display of the sending transeeiyerand data transfer will stop When using the cloning function data in the receiving unitwill be completely replaced with data of the sender Please be careful when there is already data stored in the receiving radio O 12 4 Packet Communications 12 4 1 Packet Communication Connections i 12 3 Operating the Radio Receiving Data This operation is unnecessary for radios connected to a PC I With the transceiver turned off connect a clone cable EDS 11 to the earphone microphone terminal of the unit that will receive data and then turn the transceiver on 2 Press and hold the MONI key and press the PTT key 3 times CLONE will be displayed as shown in the right Packet communication enables data transmission and reception through a TNC modem unit When using this transceiver for packet communications refer to the illustration below and connect it to a TNC following these steps Connect an optional EDS 14 microphone speaker plug conversion cable to the earphone microphone terminal at the top of this transceiver and connect a TNC Terminal Node Controller to the speaker terminal using a 3 50 plug and to the microphone terminal using a 2 50 plug Adjusting the input level This transceiver doesn t have a function to adjust the microphone input level Adjust that level from the TNC if necessary Adjusting the output level Adjust the output level from the earphone microphone terminals using the audio output dial on the transceiver EDS 14 terminal CLONE 57600dps 3 By pressing the dial data will be transferred to the receiver 12 4 When the transfer is finished FINISHED will be displayed If ERROR is displayed redo from step 1 5 Turn the power off to cancel the clone mode If the power supply is not turned off the clone mode will not be released Voltage will be supplied through a 100 ohm resistor from the internal 3 3V line JTX Please follow the TNG instruction manual for information on WJF connecting the TNC to a PC CAUTION if this transceiver the TNC and the PC are in close proximity noise may be present During packet communications turn th è Baited Save function off Do not exceed 1 200 bps during packet operations 106 107
