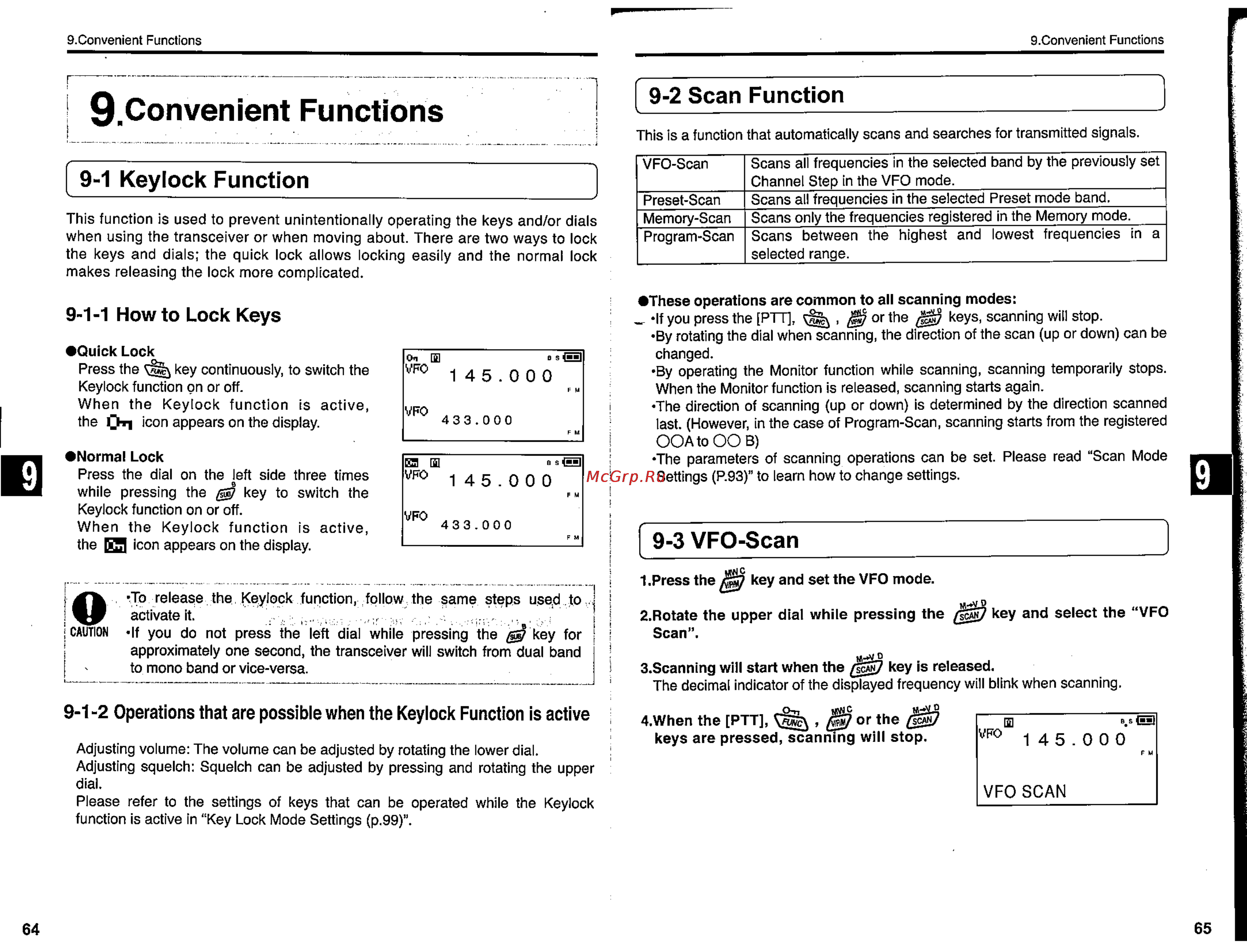

9 Convenient Functions O Convenient Functions I 9 2 Scan Function I 9 Convenient Functions This is a function that automatically scans and searches for transmitted signals VFO Scan 9 1 Keylock Function Preset Scan Memory Scan Program Scan This function is used to prevent unintentionally operating the keys and or dials when using the transceiver or when moving about There are two ways to lock the keys and dials the quick lock allows locking easily and the normal lock makes releasing the lock more complicated These operations are common to all scanning modes _ If you press the PTT or the keys scanning will stop By rotating the dial when scanning the direction of the scan up or down can be changed By operating the Monitor function while scanning scanning temporarily stops When the Monitor function is released scanning starts again The direction of scanning up or down is determined by the direction scanned last However in the case of Program Scan scanning starts from the registered OOAto OO B The parameters of scanning operations can be set Please read Scan Mode Settings P 93 to learn how to change settings 9 1 1 Howto Lock Keys Quick Lock Press the key continuously to switch the Keylock function on or off When the Keylock function is active the icon appears on the display Normal Lock Press the dial on the left side three times while pressing the key to switch the Keylock function on or off When the Keylock function is active the ESI icon appears on the display CM El VF0 e 1 4 5 0 0 0 VFO 433 000 E3 El VF0 8 1 4 5 0 0 0 VFO Scans all frequencies in the selected band by the previously set Channel Step in the VFO mode Scans all frequencies in the selected Preset mode band Scans only the frequencies registered in the Memory mode Scans between the highest and lowest frequencies in a selected range ___________________________ 433 000 9 3 VFO Scan 1 Press the 7 key and set the VFO mode To release the Keylock function follow the same steps used to i activateit 7 j CAUTION If you do not press the left dial while pressing the key for approximately one second the transceiver will switch from dual band to mono band or vice versa O 9 1 2 Operations that are possible when the Keylock Function is active Adjusting volume The volume can be adjusted by rotating the lower dial Adjusting squelch Squelch can be adjusted by pressing and rotating the upper dial Please refer to the settings of keys that can be operated while the Keylock function is active in Key Lock Mode Settings p 99 64 2 Rotate the upper dial while pressing the 7 key and select the VFO Scan I 0 3 Scanning will start when the S N7 key is released The decimal indicator of the displayed frequency will blink when scanning _O n MWC M S or When the PTT 7 keys are pressed scanning will stop 7 El VF0 B s 453 1 4 5 0 0 0 FM VFO SCAN 65
