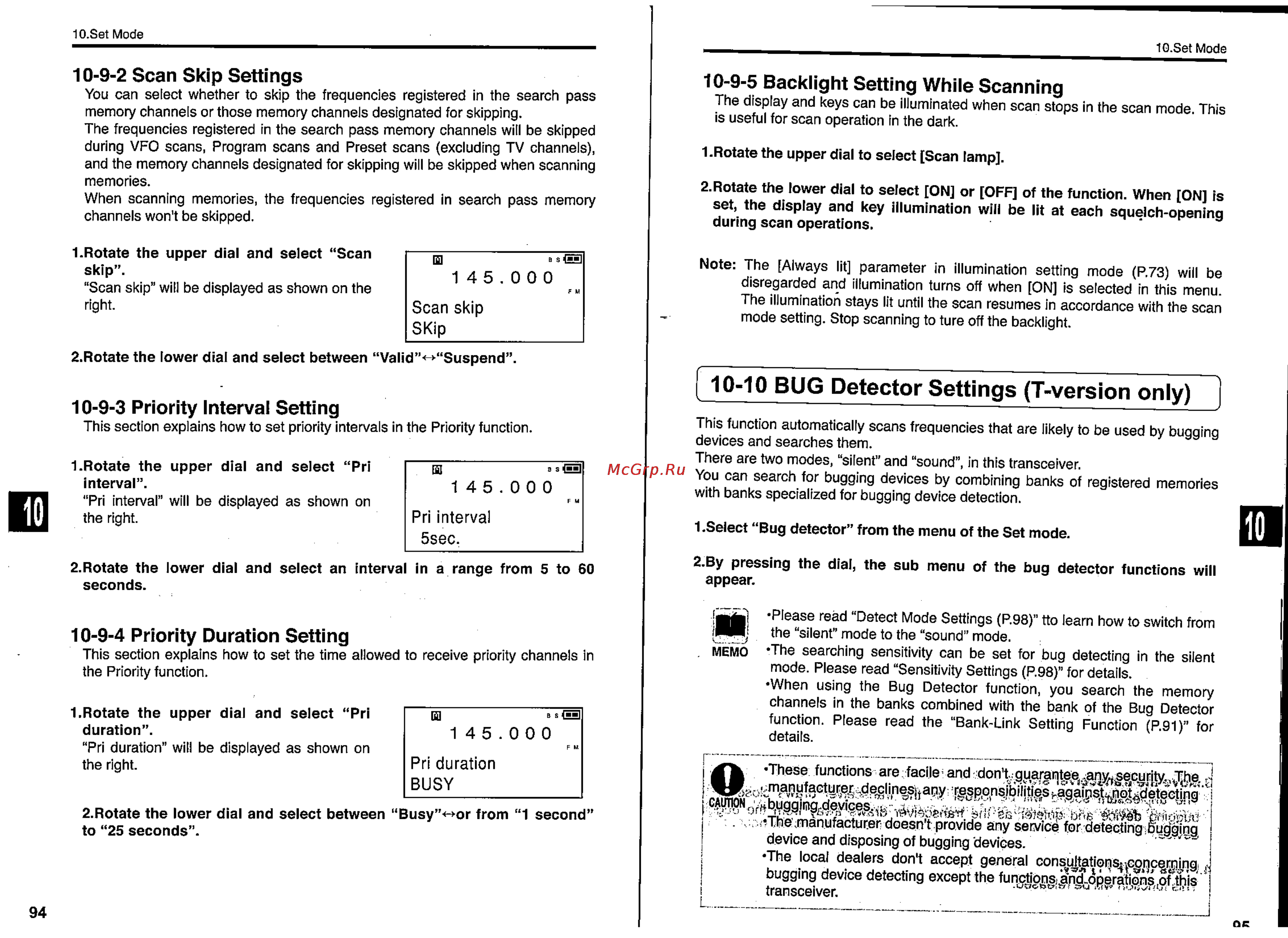

1O Set Mode lO Set Mode 10 9 2 Scan Skip Settings You can select whether to skip the frequencies registered in the search pass memory channels or those memory channels designated for skipping The frequencies registered in the search pass memory channels will be skipped during VFO scans Program scans and Preset scans excluding TV channels and the memory channels designated for skipping will be skipped when scanning memories When scanning memories the frequencies registered in search pass memory channels won t be skipped 1 Rotate the upper dial and select Scan skip Scan skip will be displayed as shown on the right E 10 9 5 Backlight Setting While Scanning The display and keys can be illuminated when scan stops in the scan mode This is useful for scan operation in the dark 1 Rotate the upper dial to select Scan lamp 2 Rotate the lower dial to select ON or OFF of the function When ON is set the display and key illumination will be lit at each squelch ODenina a during scan operations as Note The Always lit parameter in illumination setting mode P 73 will be disregarded and illumination turns off when ON is selected in this menu The illumination stays lit until the scan resumes in accordance with the scan mode setting Stop scanning to ture off the backlight 145 000 FM Scan skip SKip 2 Rotate the lower dial and select between Valid Suspend 10 10 BUG Detector Settings T version only 10 9 3 Priority Interval Setting This section explains how to set priority intervals in the Priority function 1 Rotate the upper dial and select Pri interval Pri interval will be displayed as shown on the right BJ 33 145 000 FM Pri interval 5sec 1 Select Bug detector from the menu of the Set mode 2 By pressing the dial the sub menu of the bug detector functions will appear 2 Rotate the lower dial and select an interval in a range from 5 to 60 seconds 10 9 4 Priority Duration Setting This section explains how to set the time allowed to receive priority channels in the Priority function 1 Rotate the upper dial and select Pri duration Pri duration will be displayed as shown on the right Q sS 145 000 FM Pri duration BUSY 2 Rotate the lower dial and select between Busy or from 1 second to 25 seconds 94 This function automatically scans frequencies that are likely to be used bv buoaino devices and searches them There are two modes silent and sound in this transceiver You can search for bugging devices by combining banks of registered memories with banks specialized for bugging device detection 1 Please read Detect Mode Settings P 98 tto learn how to switch from 55 the silent mode to the sound mode MEMO The searching sensitivity can be set for bug detecting in the silent mode Please read Sensitivity Settings P 98 for details When using the Bug Detector function you search the memory channels in the banks combined with the bank of the Bug Detector function Please read the Bank Link Setting Function P91 for details Q These functions are facile and don t guarantee anv security The J UAUIIUN Hbuaaina devices t The manufacturer doesntprovide any service for detecting bugging device and disposing of bugging devices The local dealers don t accept general consultationsr concerriing bugging device detecting except the functions and operations of this transceiver oc
