DGS-3212SR Stackable Gigabit Layer 2 Switch

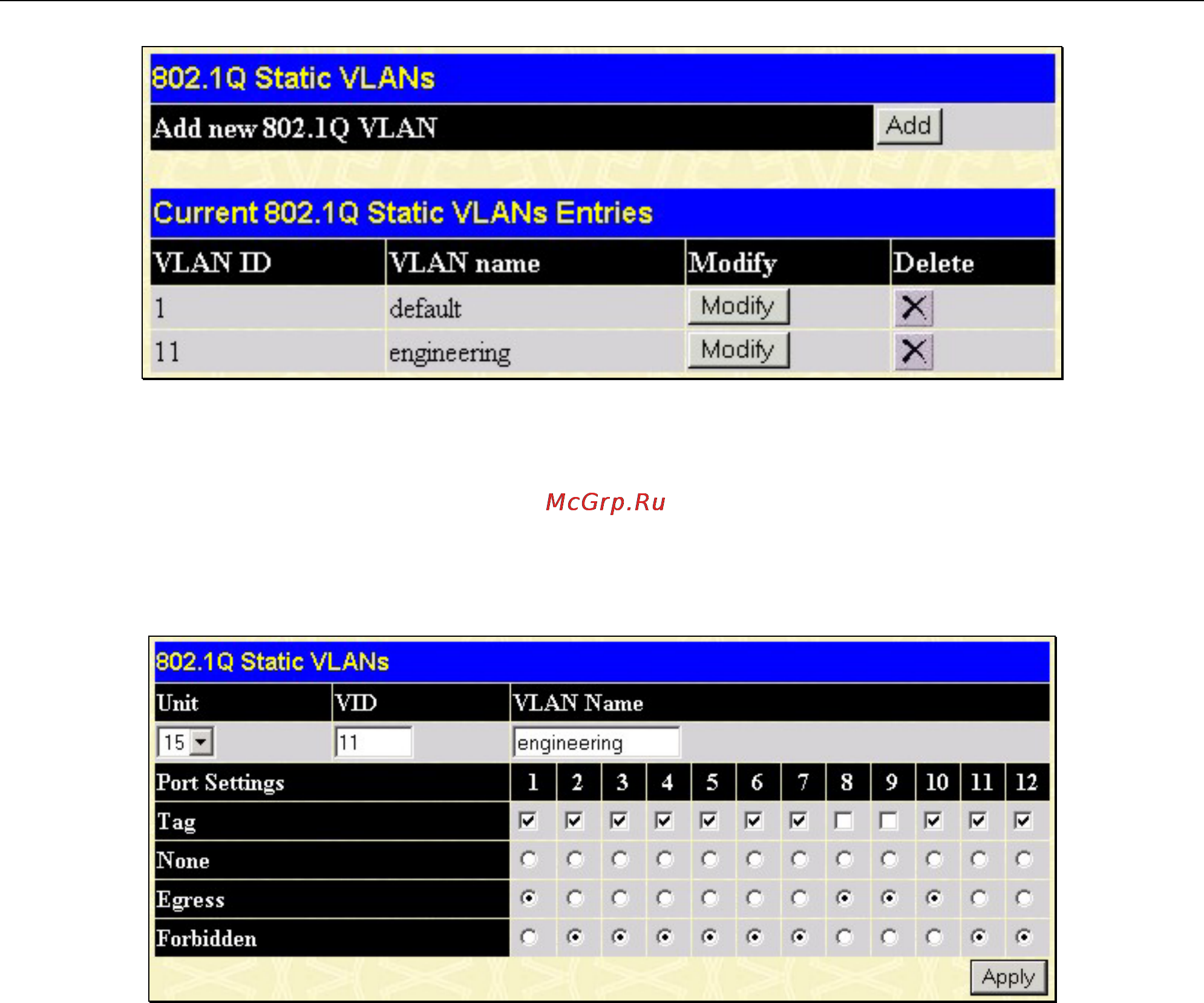

Figure 4- 54. 802.1Q Static VLANs With Added VLAN window

To change the port settings of any listed VLAN, click the Modify button.

Now click the Modify button in the first 802.1Q Static VLANs window for the newly created VLAN (engineering). A

new window appears, use this to configure the port settings to the existing VLAN, exactly as in the Add New VLAN

window. Notice that the VID and name cannot be changed. If you want to change the VID or VLAN Name it will be

necessary to delete the existing entry and create a new one.

Figure 4- 55. 802.1Q Static VLANs – Modify window
