DGS-3212SR Stackable Gigabit Layer 2 Switch

802.1p Default Priority

The Switch allows the assignment of a default 802.1p priority to each port on the Switch.

Click on the 802.1p Default Priority link in the QoS sub-folder:

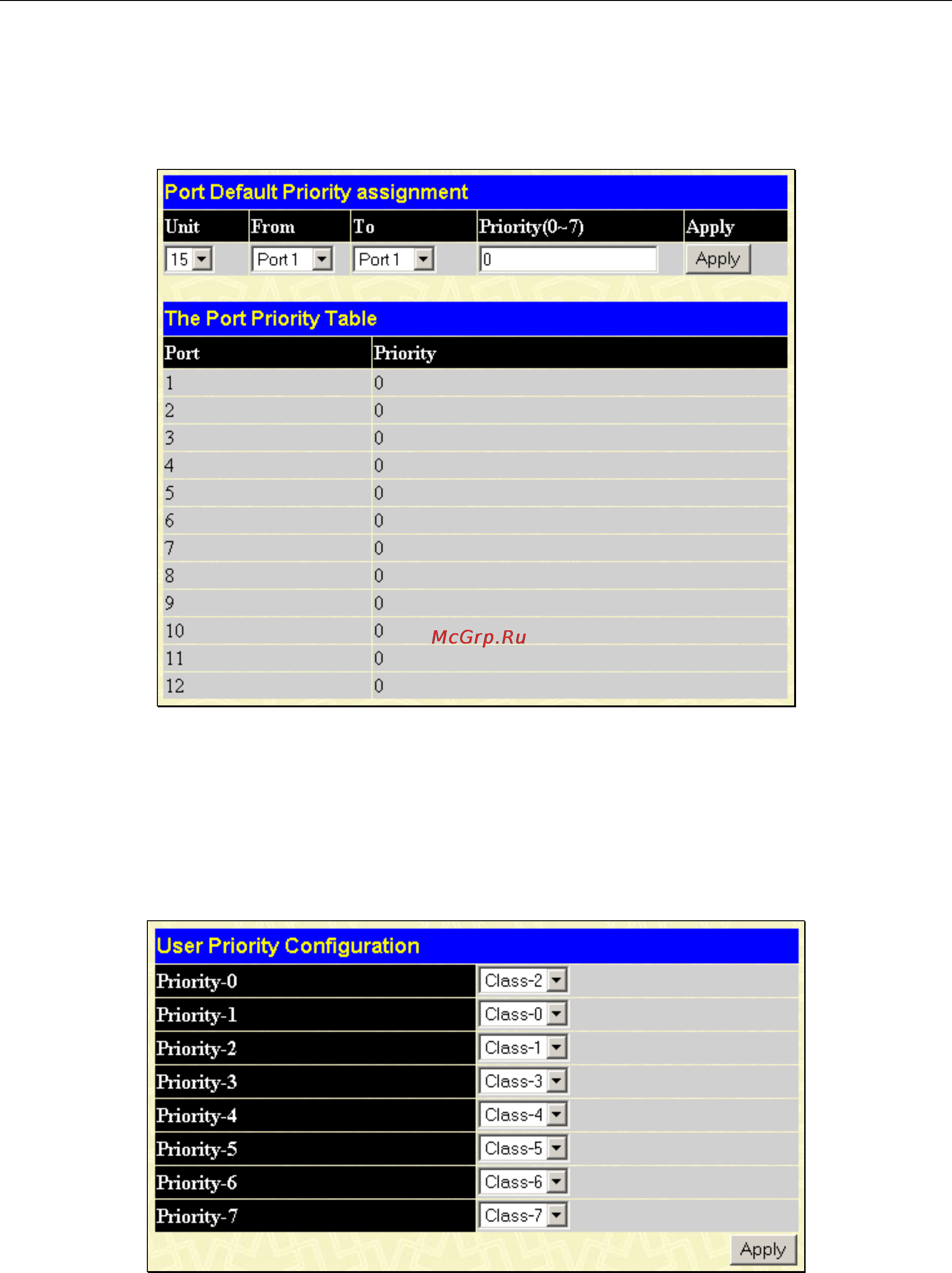

Figure 4- 58. Port Default Priority assignment and The Port Priority Table window

This page allows you to assign a default 802.1p priority to any given port on the Switch. The priority queues are numbered

from 0 − the lowest priority − to 7 − the highest priority.

802.1p User Priority

The DGS-3212SR allows the assignment of a User Priority to each of the 802.1p priorities.

Figure 4- 59. User Priority Configuration window

Once you have assigned a priority to the port groups on the Switch, you can then assign this Class to each of the eight

levels of 802.1p priorities.
