DGS-3212SR Stackable Gigabit Layer 2 Switch
Menu Bar
The Single IP Management window contains a menu bar for device configurations, as seen below.

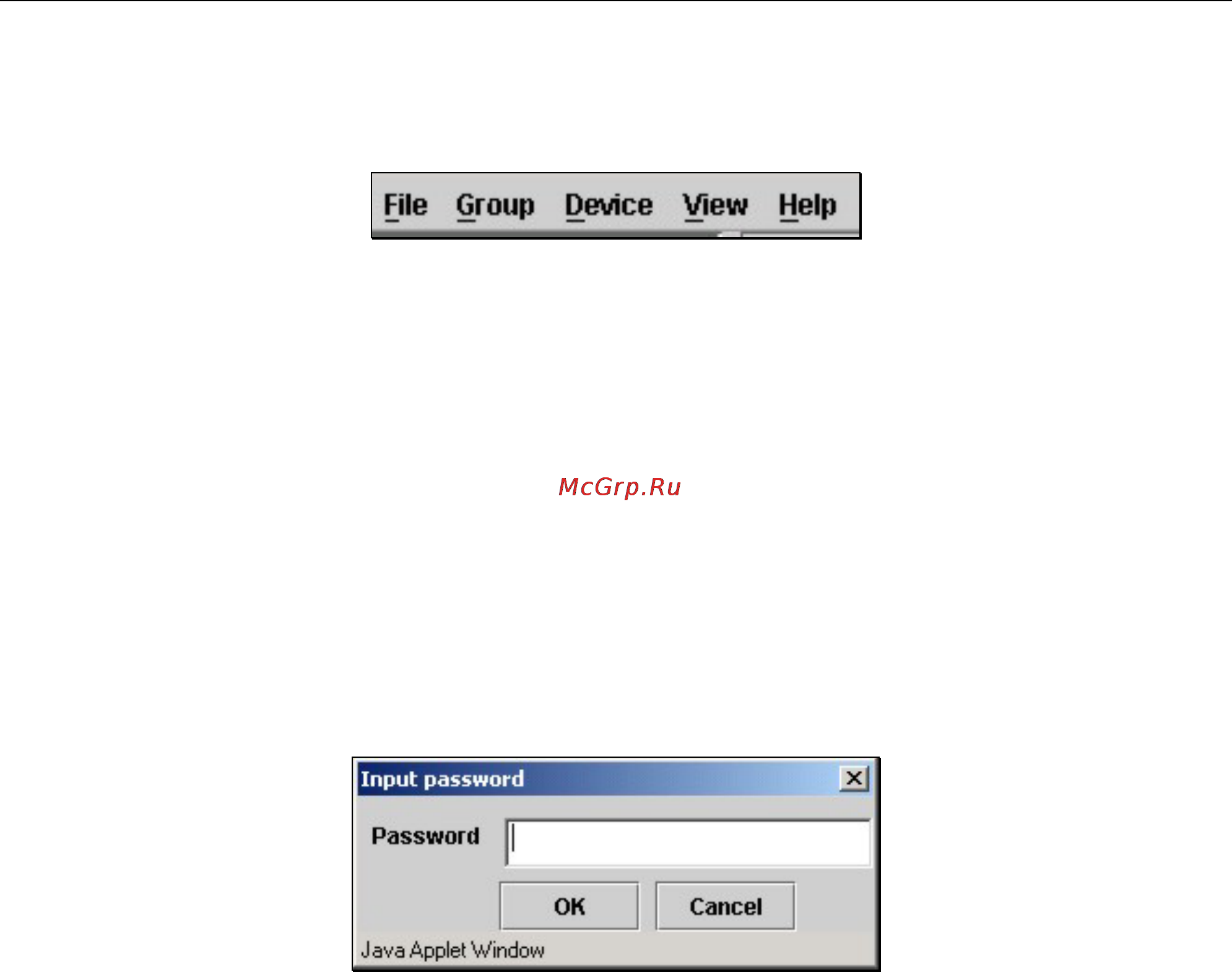

Figure 9- 15. Menu Bar of the Topology View
The five menus on the menu bar are as follows.
File
Print Setup - Will view the image to be printed. •
•
•
•
Print Topology - Will print the topology map.
Preference - Will set display properties, such as polling interval, and the views to open at SIM startup.
Group
Add to group - add a candidate to a group. Clicking this option will reveal the following screen for the user to
enter a password for authentication from the Candidate Switch before being added to the SIM group. Click OK
to enter the password or Cancel to exit the window.
Figure 9- 16. Input Password window
Remove from Group - Rremove an MS from the group. •
•
•
•
•
Device
Configure - Will open the web manager for the specific device.
View
Refresh - Update the views with the latest status.
Topology - Display the Topology view.
Help
About - Will display the SIM information, including the current SIM version.
196
