DGS-3212SR Stackable Gigabit Layer 2 Switch

Plug-in Modules

The DGS-3212SR Switch is able to accommodate optional plug-in modules in order to increase functionality and

performance. Two modules may be installed and used in combination with any of the three available modules. Plug-in

modules must be purchased separately.

DEM-340T 1000BASE-T Module

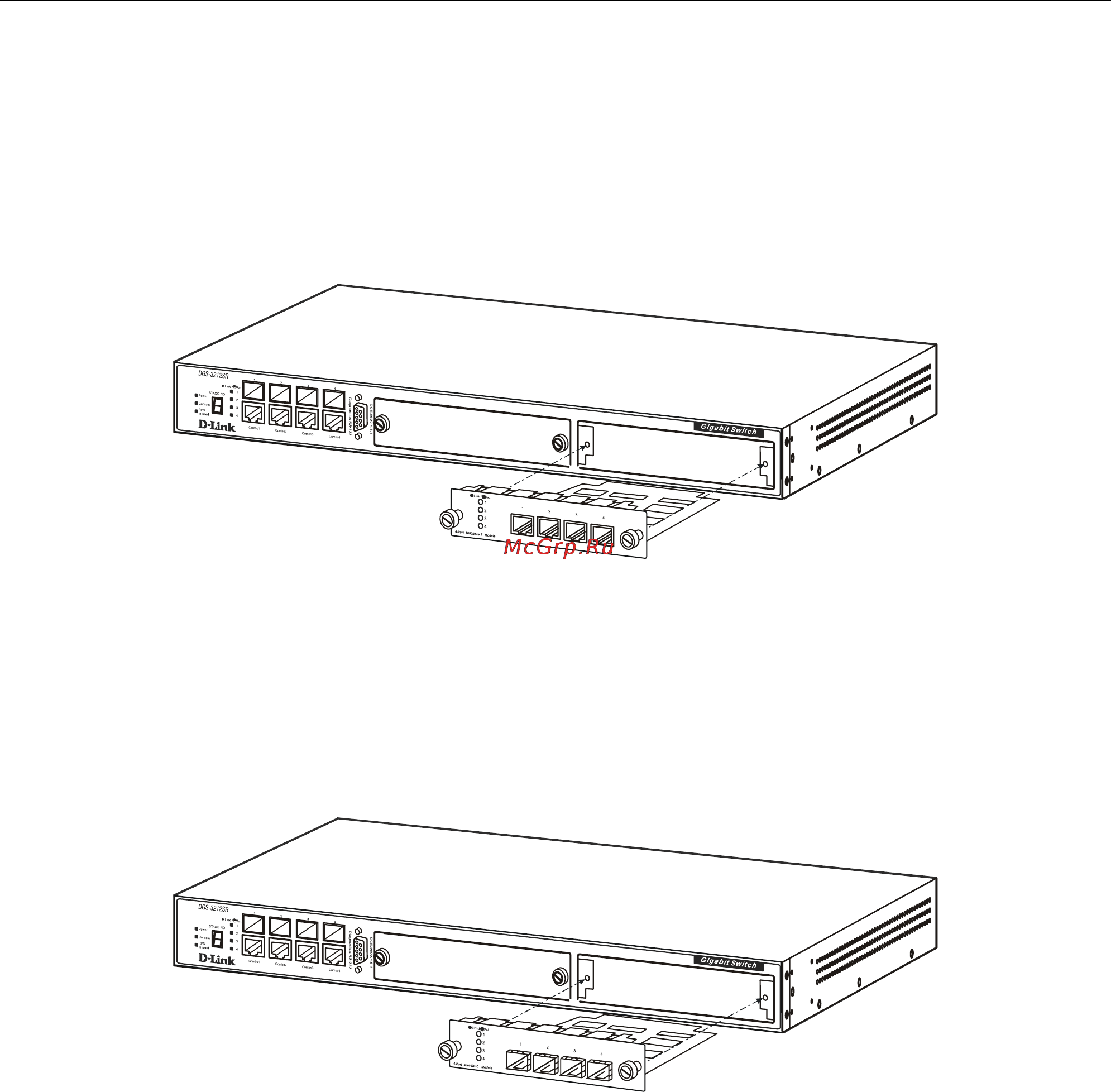

Figure 1- 5. 1000BASE-T Four-port module

• Front-panel module

• Connects to 1000BASE-T devices

• LED indicators for Link/Activity

DEM-340MG SFP (Mini GBIC) Module

Figure 1- 6. Four-port Gigabit SFP module

• Front-panel module

• Connects to Gigabit Ethernet devices

• LED indicators for Link/Activity and Status
