DGS-3212SR Stackable Gigabit Layer 2 Switch

Master Port

Choose the Master port for the trunk group.

Member Unit

Choose the Switch unit on which to set up a trunk group. Trunk groups must be

confined to ports on a single Switch.

Port Map

Choose the members of the trunked group. Up to eight ports per group can be

assigned to a group.

Flooding Port

A trunking group must designate one port to allow transmission of broadcasts and

unknown unicasts.

Active Port

Shows the port that is currently forwarding packets.

Click Apply to implement changes made.

LACP Port Settings

The LACP Port Mode Setup window is used in conjunction with the Link Aggregation windows to create port trunking

groups on the Switch. Using the following window, the user may set which ports will be active and passive in processing

and sending LACP control frames. To view the following window, click Configuration > Link Aggregation > LACP

Port Setting.

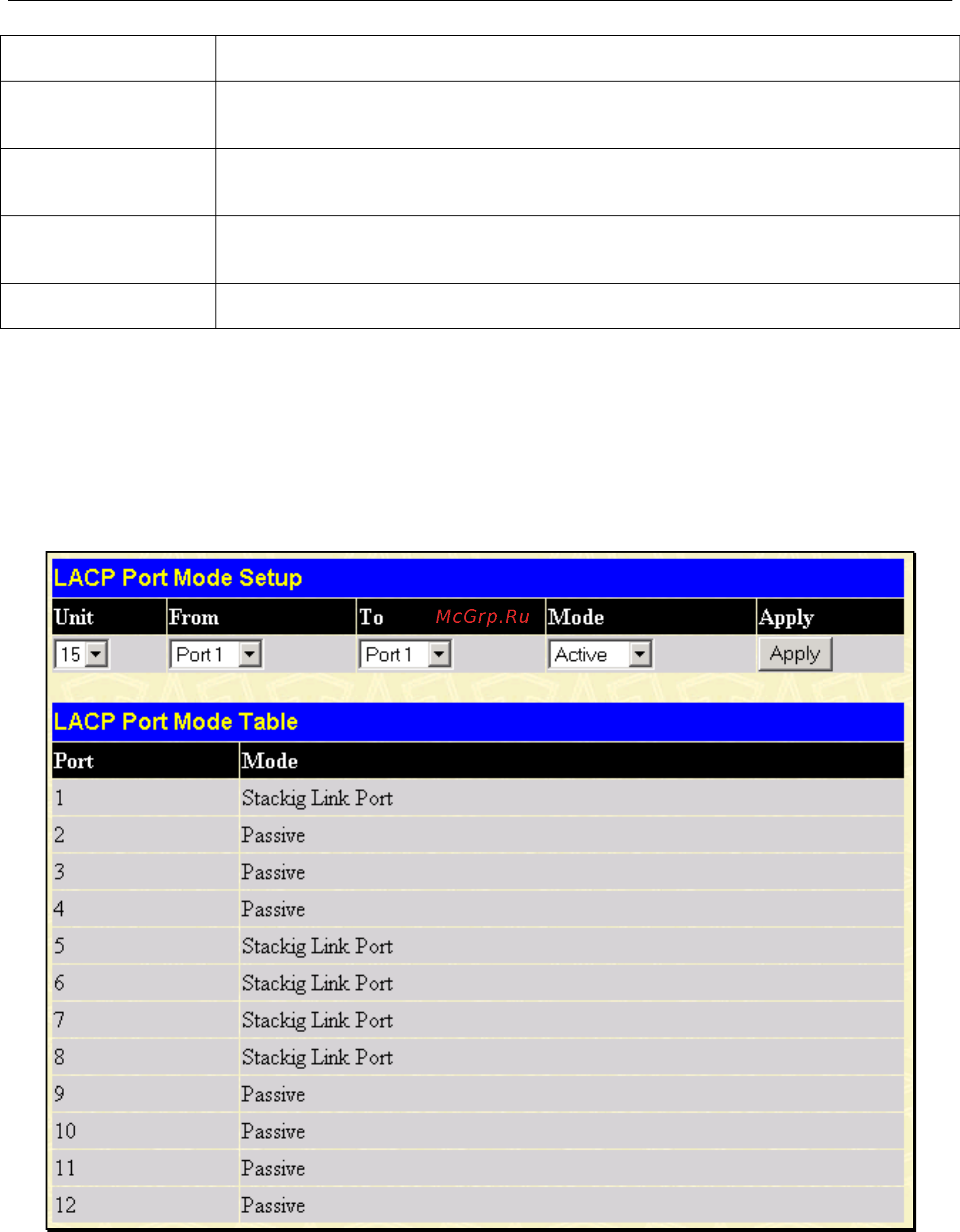

Figure 4- 11. LACP Port Mode Setup window

The user may set the following parameters:
