DGS-3212SR Stackable Gigabit Layer 2 Switch
Errors
Various statistics can be viewed as either a line graph or a table:
• Received Errors
• Transmitted Errors
Received Errors
Click the Received (RX) link in the Error folder of the Monitoring menu to view the following graph of error packets
received on the Switch. To select a port to view these statistics for, first select the Switch in the Switch stack by using the
Unit pull-down menu and then select the port by using the Port pull-down menu. The user may also use the real-time
graphic of the Switch and/or switch stack at the top of the web page by simply clicking on a port.

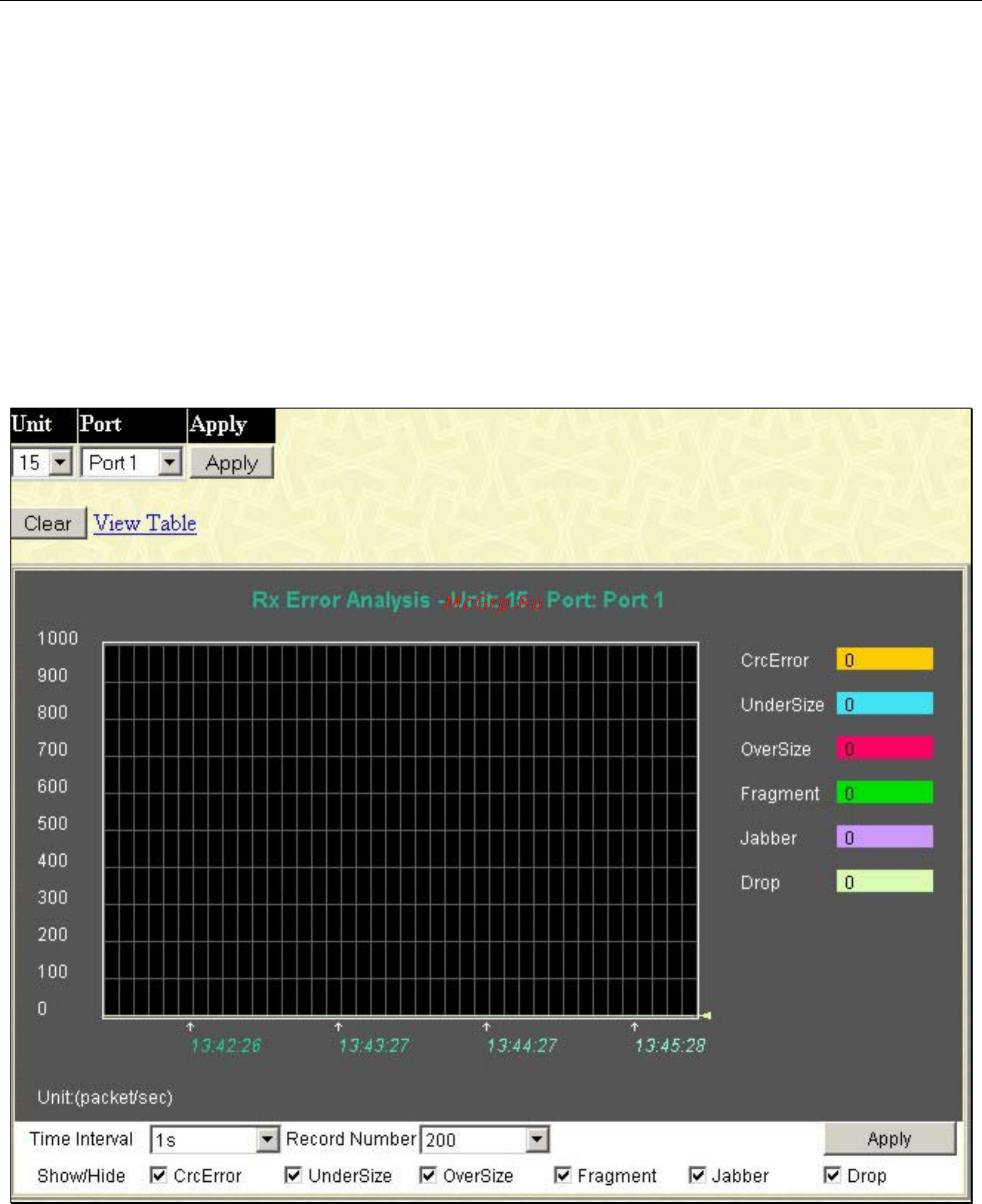

Figure 7- 12. Rx Error Analysis (line graph) window
165
