DGS-3212SR Stackable Gigabit Layer 2 Switch
Candidate Switch Icon

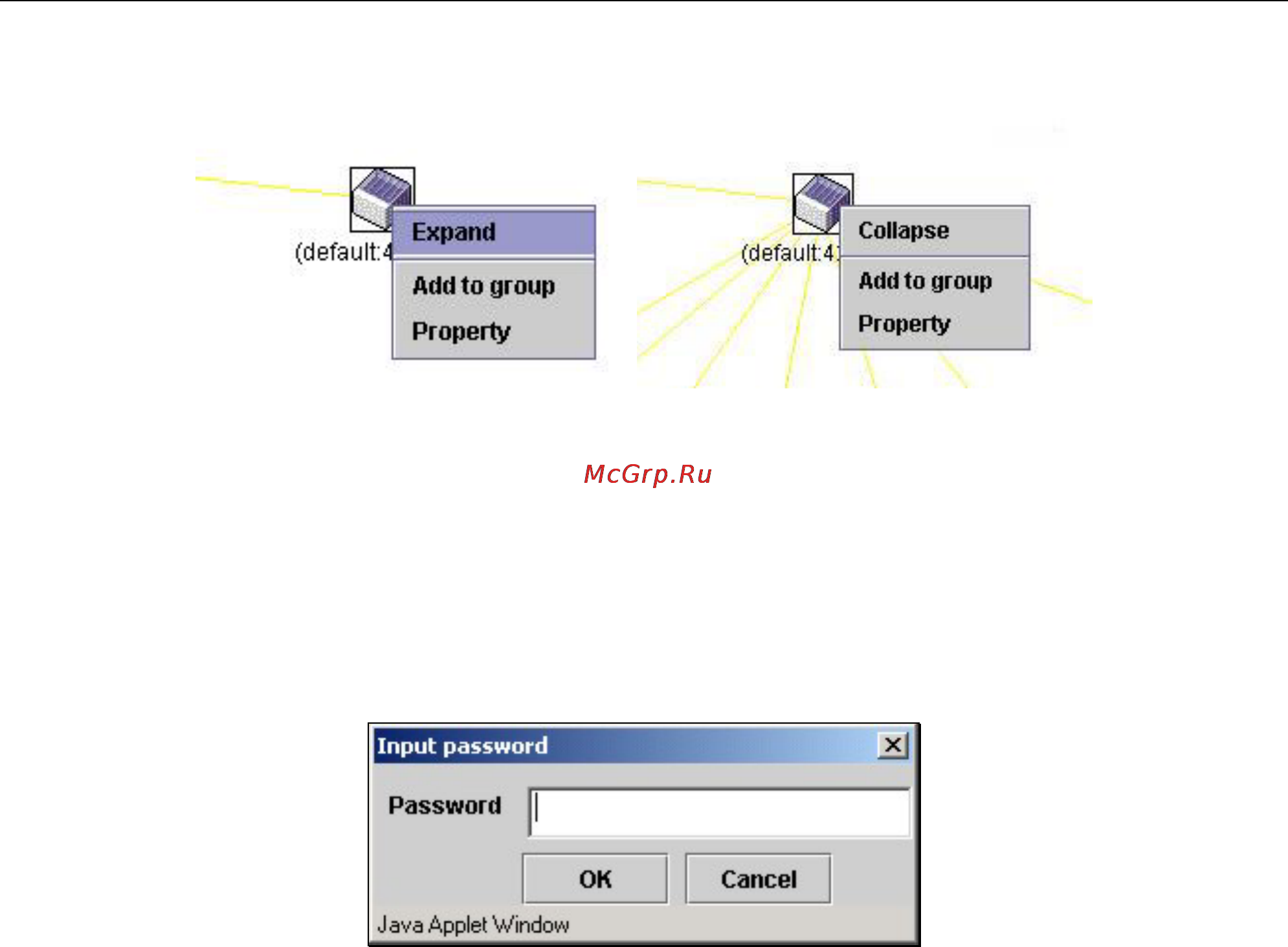

Figure 9- 13. Right-clicking a Candidate icon
The following options may appear for the user to configure:
Collapse - To collapse the group that will be represented by a single icon. •
•
•
Expand - To expand the SIM group, in detail.
Add to group - Add a candidate to a group. Clicking this option will reveal the following screen for the user to
enter a password for authentication from the Candidate Switch before being added to the SIM group. Click OK
to enter the password or Cancel to exit the window.
Figure 9- 14. Input Password dialog box
Property - To pop up a window to display the device information, as shown below. •
195
