DGS-3212SR Stackable Gigabit Layer 2 Switch

Router Port

This displays which of the Switch’s ports are currently configured as router ports. A router port configured by a user (using

the console or Web-based management interfaces) is displayed as a static router port, designated by S. A router port that is

dynamically configured by the Switch is designated by D.

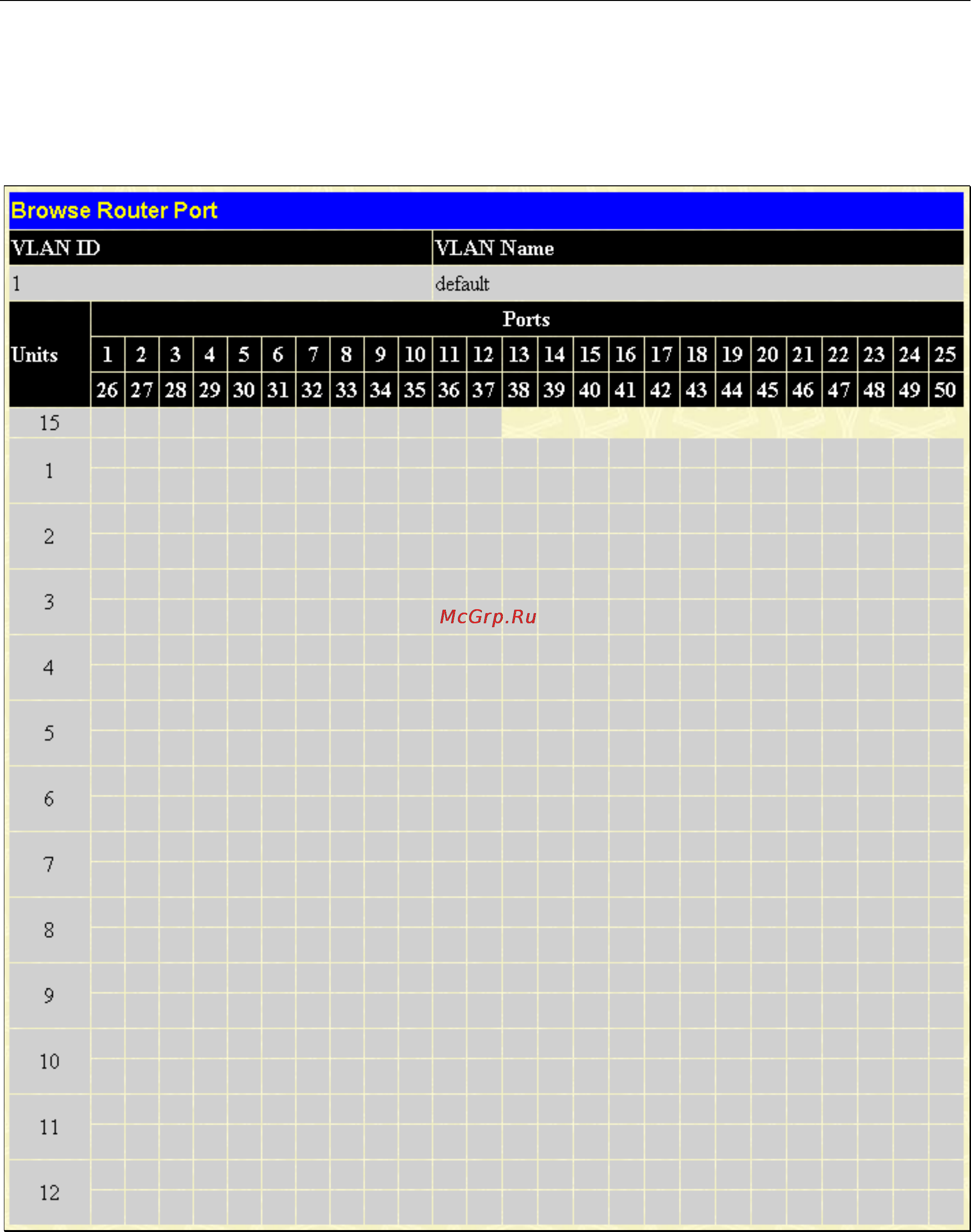

Figure 7- 23. Browse Router Port window

177
