D-Link DGS-3212SR [57/224] Port description

DGS-3212SR Stackable Gigabit Layer 2 Switch

Port Description

The Switch supports a port description feature where the user may name various ports on the Switch. To assign names or

descriptions to various ports, click Port Description on the Configuration folder:

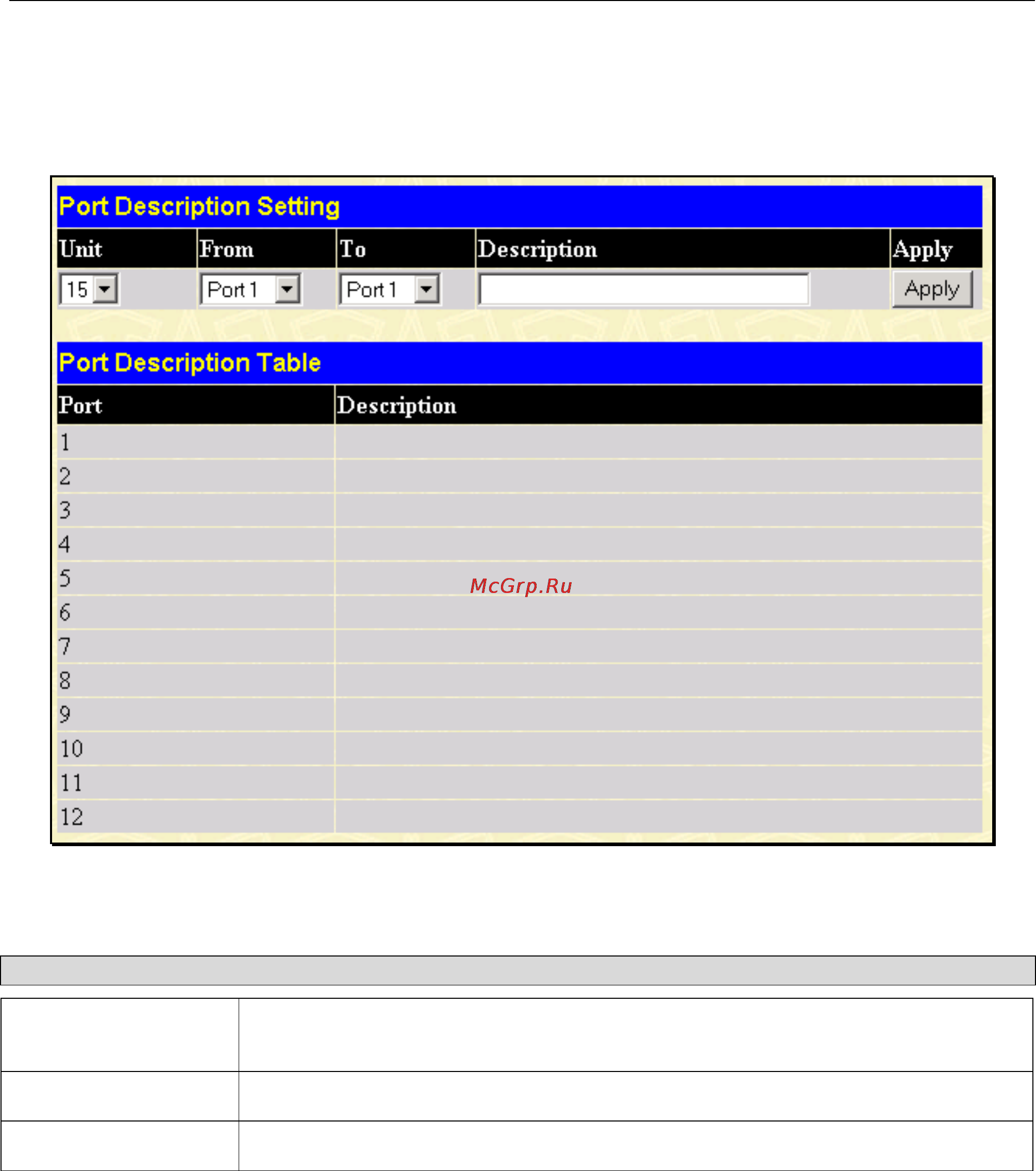

Figure 4- 5. Port Description Setting window

The user may set the following parameters:

Parameter Description

Unit

This is the Unit ID of a Switch in a Switch stack. The number 15 indicates a

DGS-3212SR Switch in standalone mode.

From/To

A consecutive group of ports may be configured starting with the selected port.

Description

Enter a description of the port or ports.

Click Apply to implement changes made.
