DGS-3212SR Stackable Gigabit Layer 2 Switch
Multicast Forwarding
The following figure and table describe how to set up Multicast forwarding on the Switch. Open the Forwarding &
Filtering folder and click on the Multicast Forwarding link to see the entry window below:

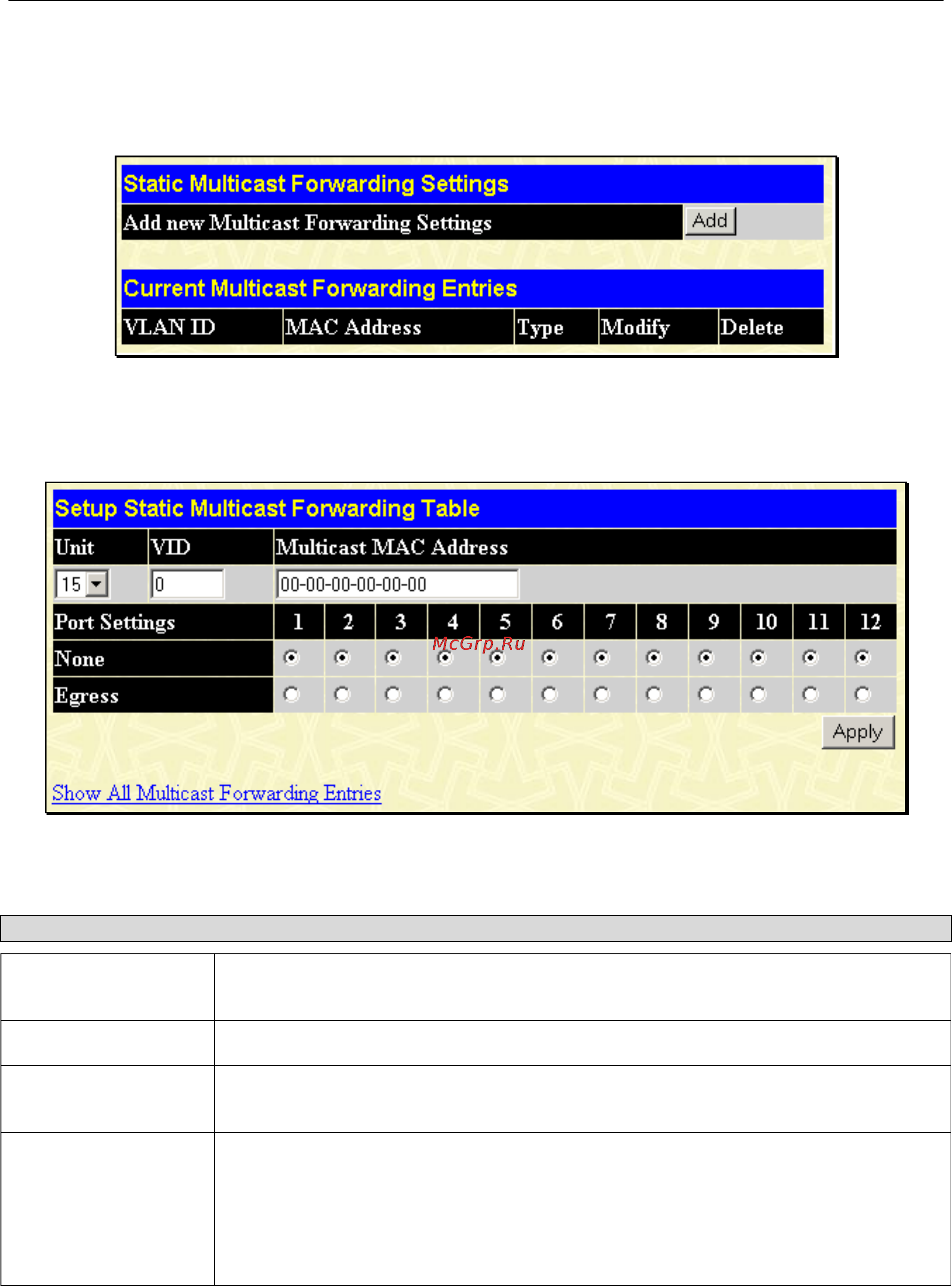

Figure 4- 46. Static Multicast Forwarding Settings window
The Static Multicast Forwarding Settings window displays all of the entries made into the Switch’s static multicast
forwarding table. Click the Add button to open the Setup Static Multicast Forwarding Table window, as shown below.
Figure 4- 47. Setup Static Multicast Forwarding Table window
The following parameters can be set:
Parameter Description
Unit
Select the Switch in the Switch stack to configure. 15 represents the Switch in
standalone mode.
VID
The VLAN ID of the VLAN to which the MAC address below belongs.
Multicast MAC
Address
The MAC address of the static source of multicast packets. This must be a multicast
MAC address.
Port Settings
Allows the selection of ports that will be members of the static multicast group and
ports that are either forbidden from joining dynamically, or that can join the multicast
group dynamically, using GMRP. The options are None and Egress. None means
there are no restrictions on the port dynamically joining the multicast group. If None is
chosen, then an end station attached to the port can join the multicast group using
GMRP. Egress means the port is a static member of the multicast group.
Click Apply to implement changes made.
83
