DGS-3212SR Stackable Gigabit Layer 2 Switch

Authentication Server Group

This window will allow users to set up Authentication Server Groups on the Switch. A server group is a technique used

to group RADIUS, TACACS, TACACS+, and XTACACS server hosts into user-defined categories for authentication

using method lists. The user may define the type of server group by protocol or by previously defined server group. The

Switch has four built-in Authentication Server Groups that cannot be removed but can be modified. Up to eight

authentication server hosts may be added to any particular group.

To view the following window, click Security > Access Authentication Control > Authentication Server Group:

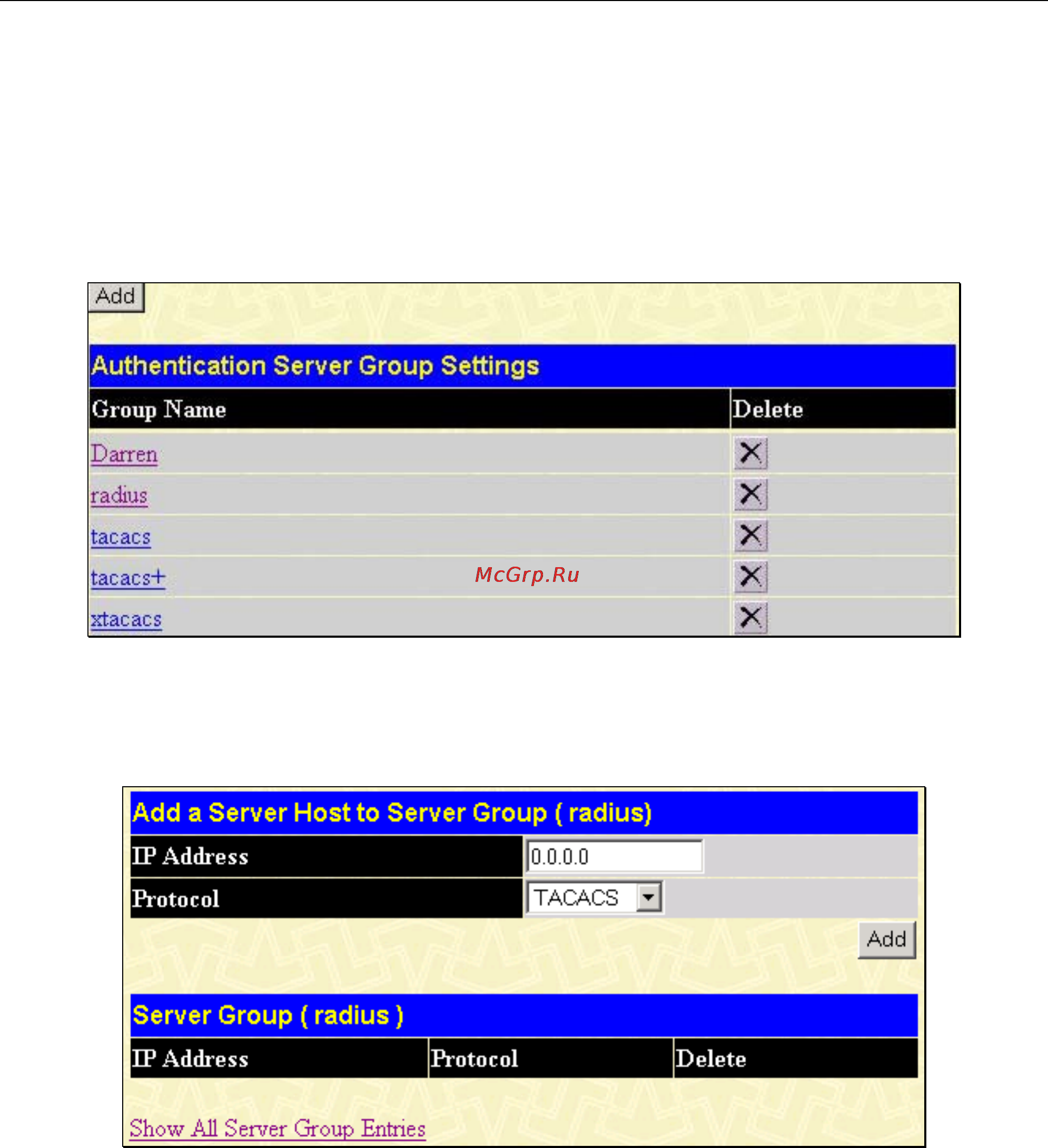

Figure 5- 10. Authentication Server Group Settings window

This window displays the Authentication Server Groups on the Switch. The Switch has four built-in Authentication Server

Groups that cannot be removed but can be modified. To modify a particular group, click its hyperlinked Group Name,

which will then display the following window.

Figure 5- 11. Add a Server Host to Server Group (radius) window

To add an Authentication Server Host to the list, enter its IP address in the IP Address field, choose the protocol associated

with the IP address of the Authentication Server Host (RADIUS, TACACS, TACACS+, or XTACACS) and click Add to add

this Authentication Server Host to the group.

To add a server group other than the ones listed, click the add button, revealing the following window to configure.

132
