DGS-3212SR Stackable Gigabit Layer 2 Switch

Transmitted Errors

Click the Transmitted (TX) link in the Error folder of the Monitoring menu to view the following graph of error packets

received on the Switch. To select a port to view these statistics for, first select the Switch in the switch stack by using the

Unit pull-down menu and then select the port by using the Port pull-down menu. The user may also use the real-time

graphic of the Switch and/or switch stack at the top of the web page by simply clicking on a port.

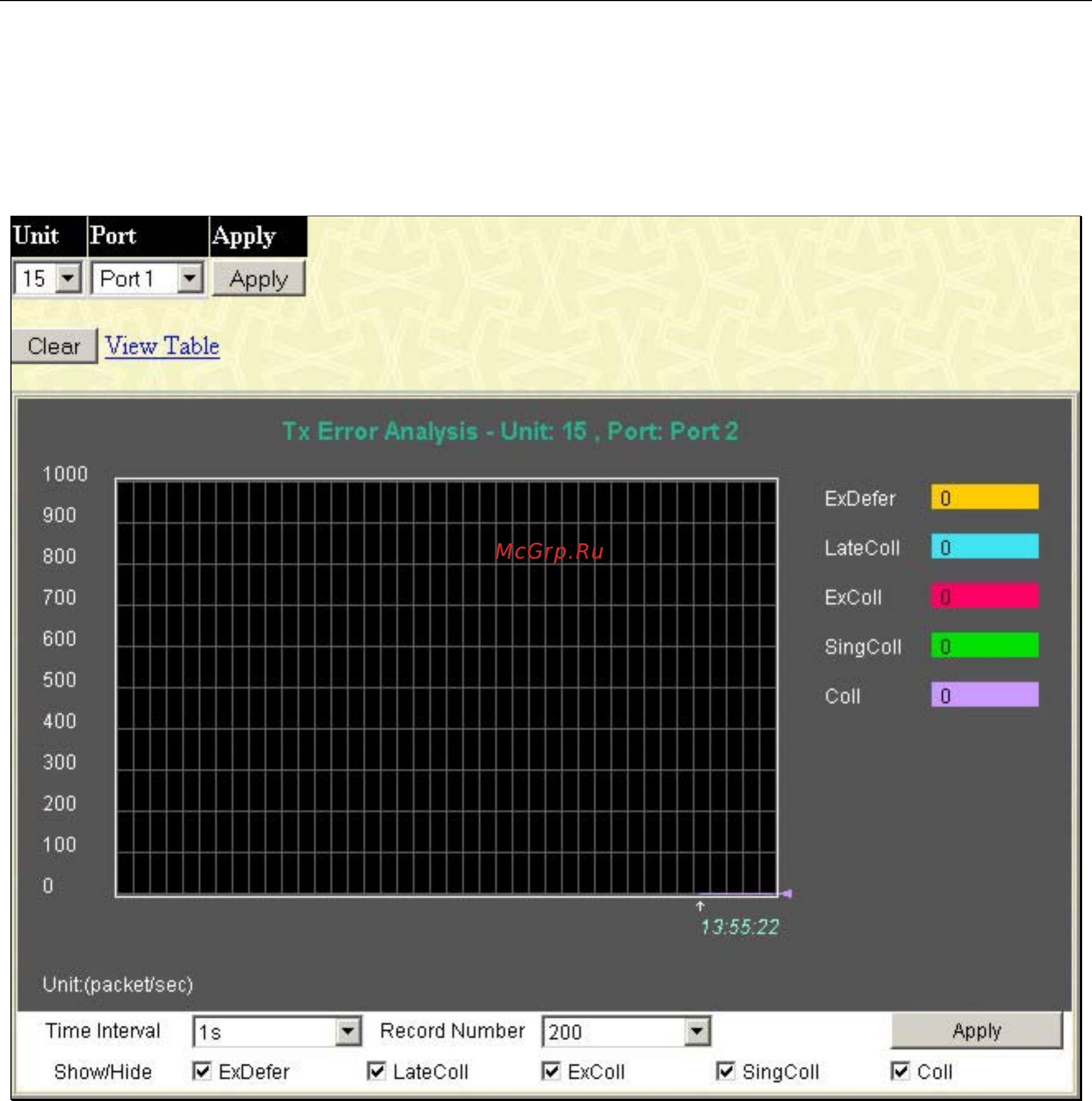

Figure 7- 14. Tx Error Analysis (line graph) window

167
