DGS-3212SR Stackable Gigabit Layer 2 Switch

Transmitted Packets

Click the Transmitted (TX) link in the Packets folder of the Monitoring menu to view the following graph of packets

transmitted from the Switch. To select a port to view these statistics for, first select the Switch in the Switch stack by using

the Unit pull-down menu and then select the port by using the Port pull down menu. The user may also use the real-time

graphic of the Switch and/or switch stack at the top of the web page by simply clicking on a port.

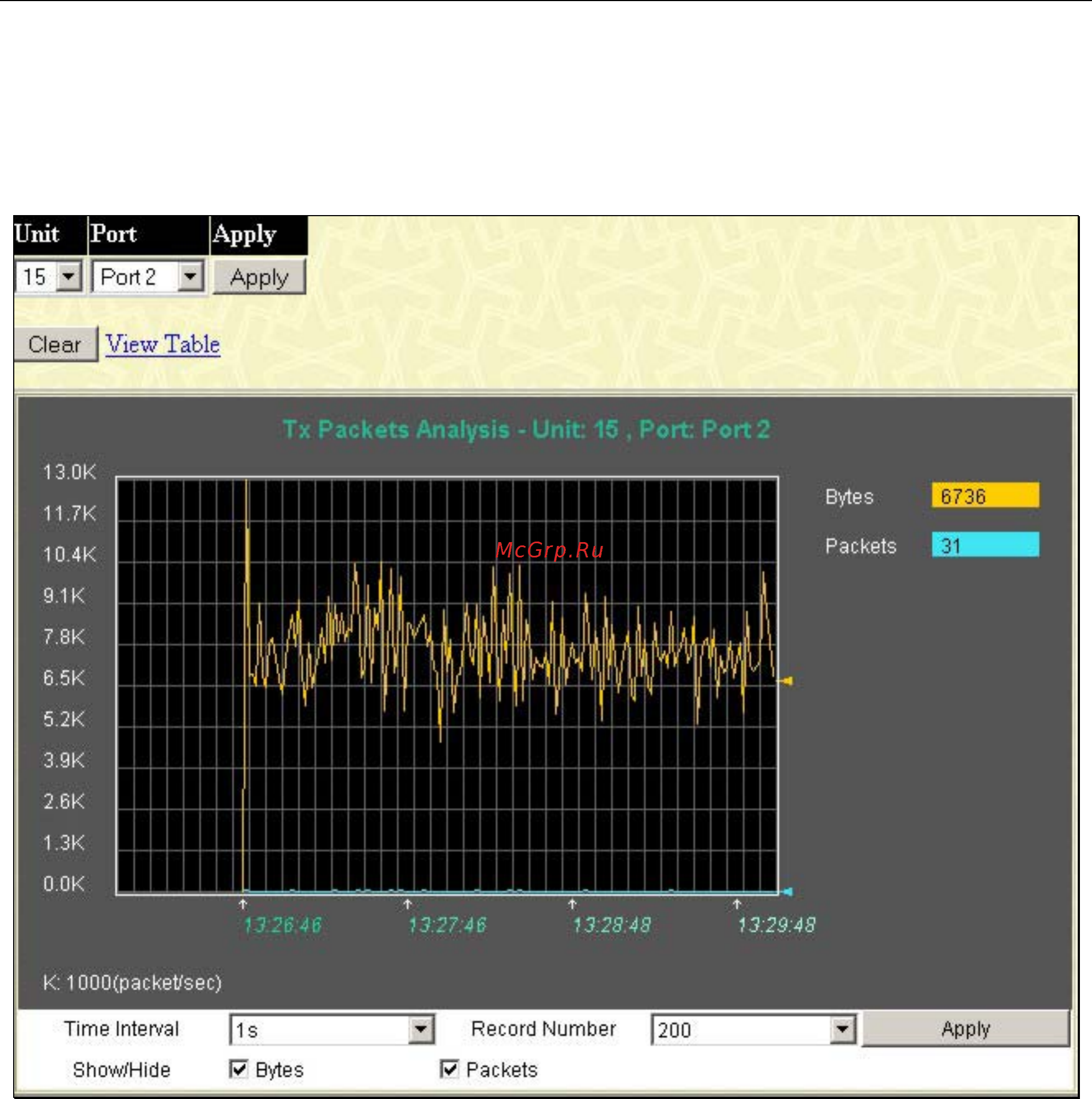

Figure 7- 10. Tx Packets Analysis (line graph for Bytes & Packets) window
