DGS-3212SR Stackable Gigabit Layer 2 Switch
IGMP Snooping Table
This window allows the Switch’s IGMP Snooping Group Table to be viewed. IGMP Snooping allows the Switch to read
the Multicast Group IP address and the corresponding MAC address from IGMP packets that pass through the Switch. The
number of IGMP reports that were snooped is displayed in the Reports field.
To view the IGMP Snooping Group Table window, click IGMP Snooping Group on the Monitoring menu:

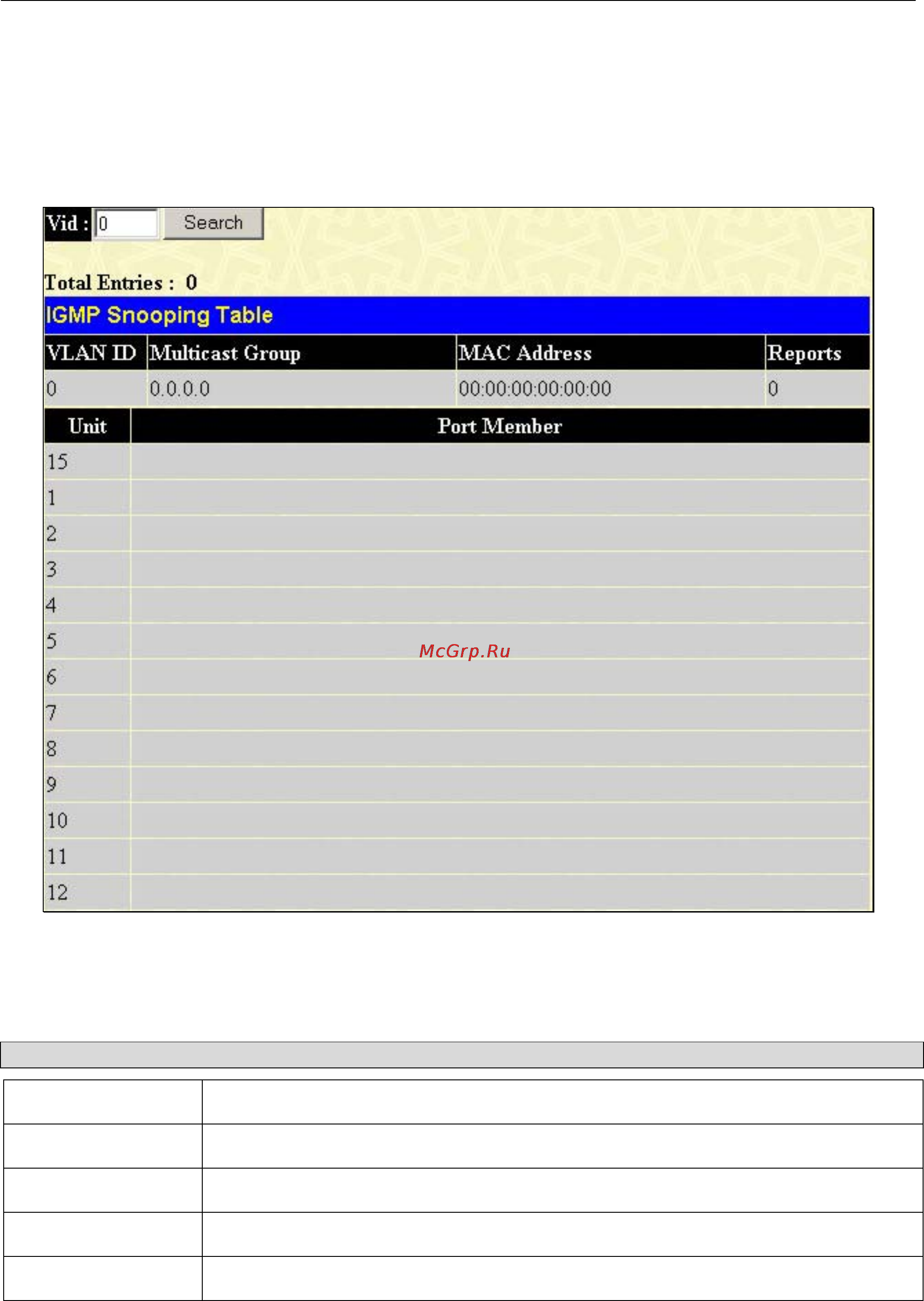

Figure 7- 20. IGMP Snooping Table window
The user may search the IGMP Snooping Group Table by VLAN Name by entering it in the top left hand corner and
clicking Search.
The following field can be set:
Parameter Description
VLAN Name
The VLAN Name of the multicast group.
Multicast Group
The IP address of the multicast group.
MAC Address
The MAC address of the multicast group.
Reports
The total number of reports received for this group.
Port Member
These are the ports where the IGMP packets were snooped are displayed.
174
