D-Link DGS-3212SR [188/224] Vlan status

DGS-3212SR Stackable Gigabit Layer 2 Switch

VLAN Status

This window displays the status of VLANs on any Switch in a Switch stack managed by a DGS-3212SR.

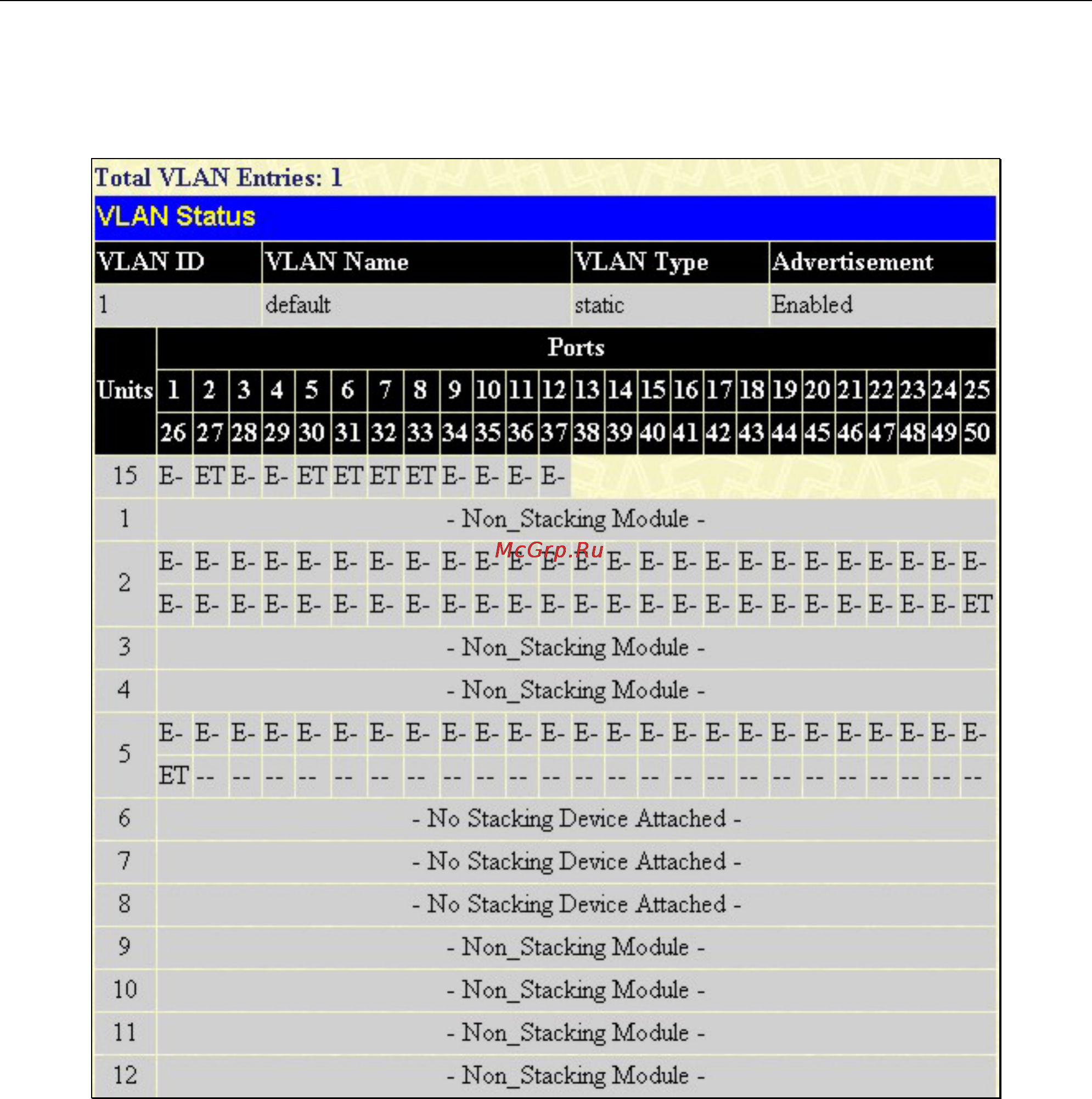

Figure 7- 22. VLAN Status window

176
