D-Link DGS-3212SR [83/224] Stp bridge global settings

DGS-3212SR Stackable Gigabit Layer 2 Switch

STP Bridge Global Settings

To open the following window, open the Spanning Tree folder in the Configuration menu and click the STP Bridge

Global Settings link.

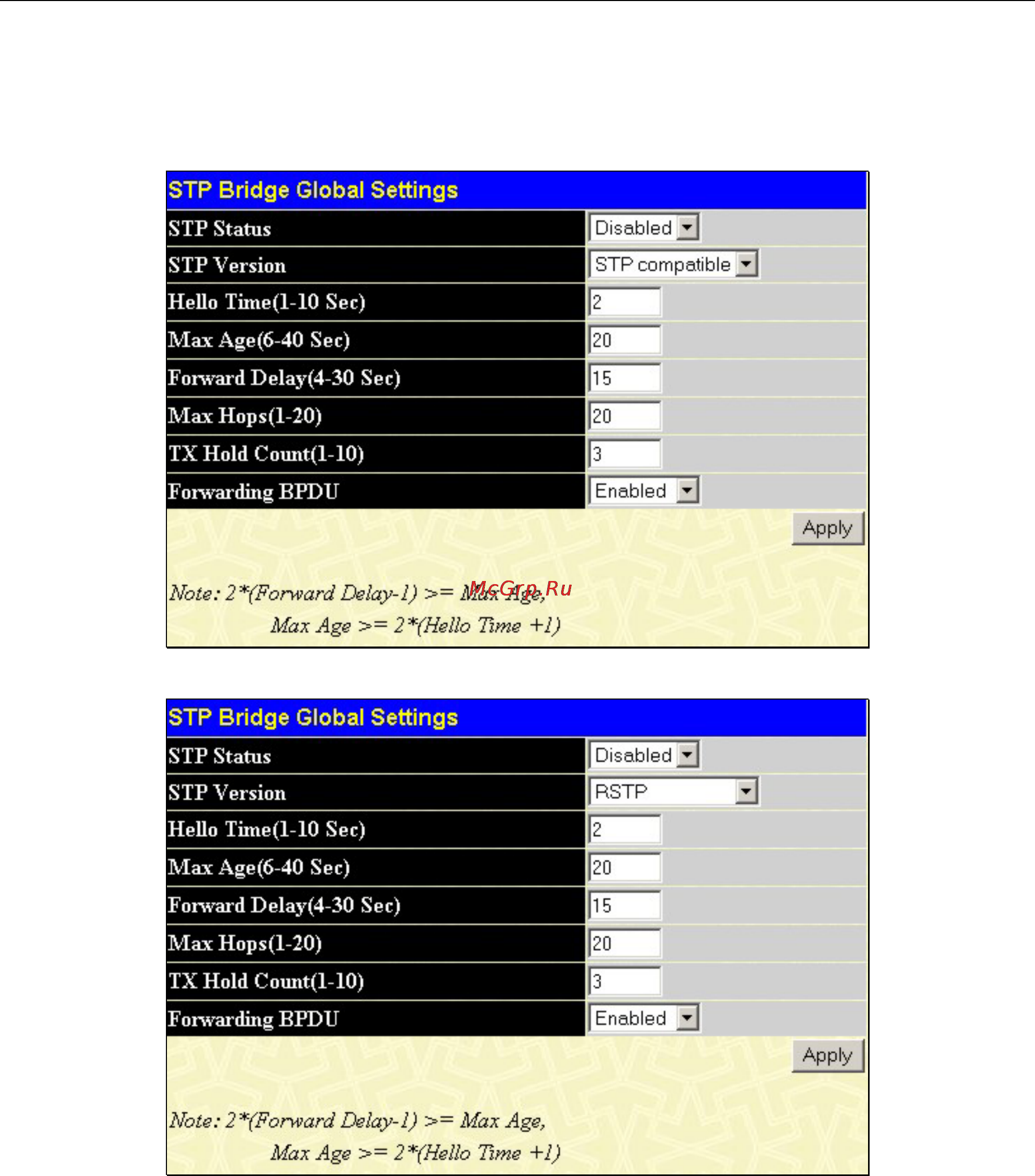

Figure 4- 32. STP Bridge Global Settings – STP compatible

Figure 4- 33. STP Bridge Global Settings - RSTP (default)
