DGS-3212SR Stackable Gigabit Layer 2 Switch
Packets
Various statistics can be viewed as either a line graph or a table:
• Received Packets
• Received Unicast/Multicast/Broadcast Packets
• Transmitted Packet
Received Packets
Click the Received (RX) link in the Packets folder of the Monitoring menu to view the following graph of packets
received on the Switch. To select a port to view these statistics for, first select the Switch in the Switch stack by using the
Unit pull-down menu and then select the port by using the Port pull-down menu. The user may also use the real-time
graphic of the Switch and/or switch stack at the top of the web page by simply clicking on a port.

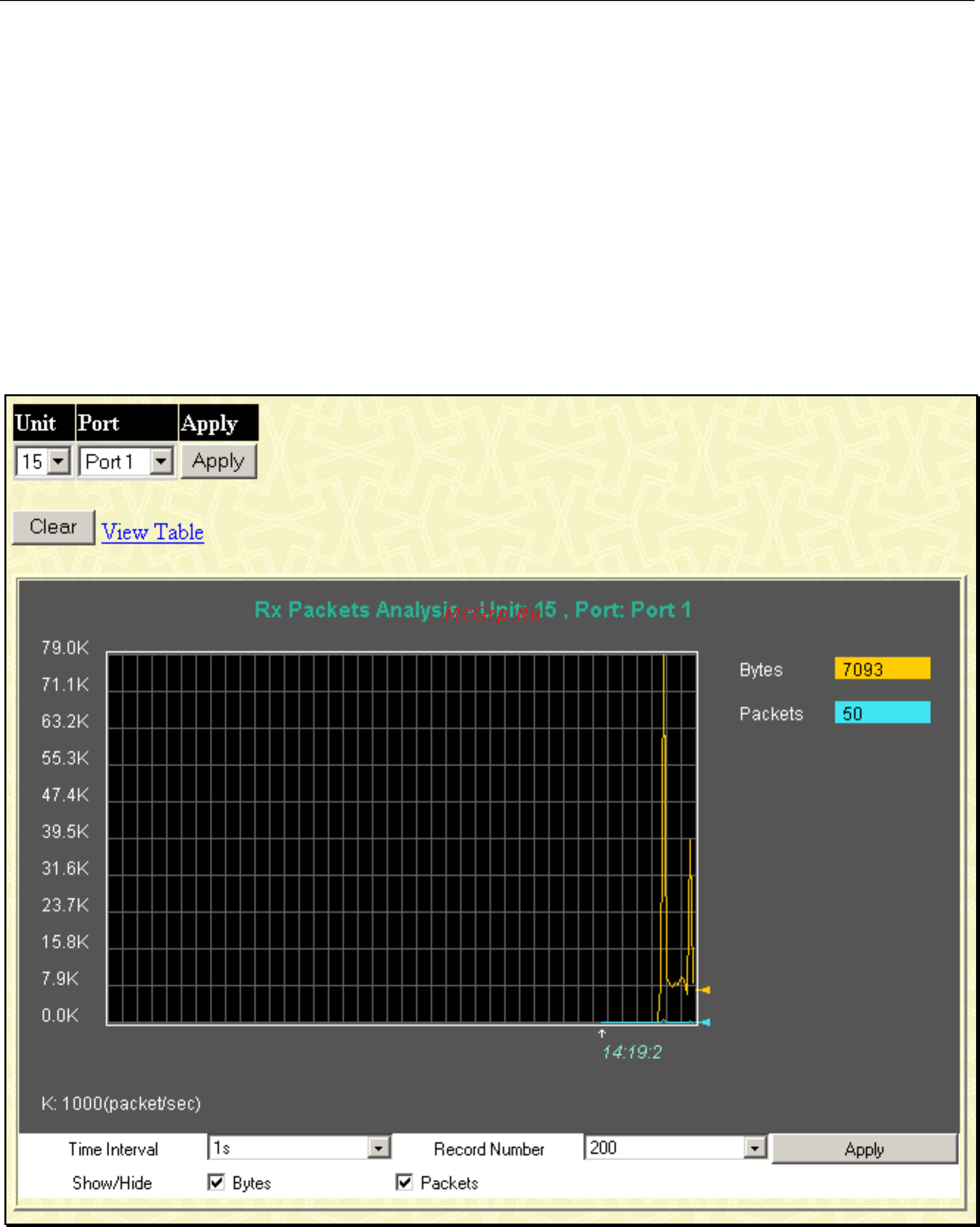

Figure 7- 6. Rx Packets Analysis (line graph for Bytes & Packets) window
159
