DGS-3212SR Stackable Gigabit Layer 2 Switch
Received Unicast/Multicast/Broadcast Packets
Click the UMB Cast (RX) link in the Packets folder of the Monitoring menu to view the following graph of UMB cast
packets received on the Switch. To select a port to view these statistics for, first select the Switch in the Switch stack by
using the Unit pull-down menu and then select the port by using the Port pull-down menu. The user may also use the real-
time graphic of the Switch and/or switch stack at the top of the web page by simply clicking on a port.

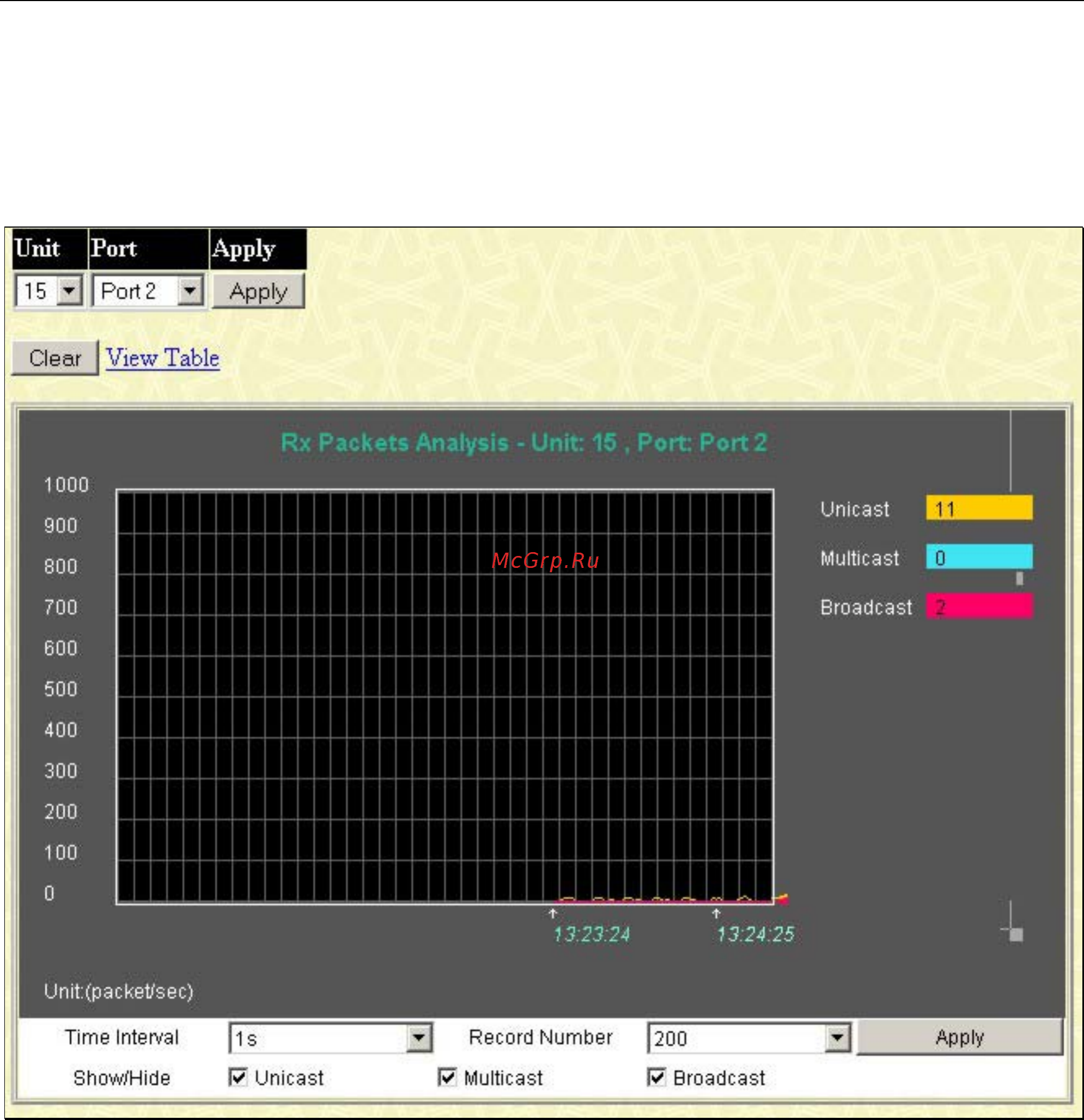

Figure 7- 8. Rx Packets Analysis (line graph for Unicast, Multicast, & Broadcast) window
161
