D-Link DGS-3212SR [190/224] Session table

DGS-3212SR Stackable Gigabit Layer 2 Switch

Session Table

This window displays the management sessions since the Switch was last rebooted.

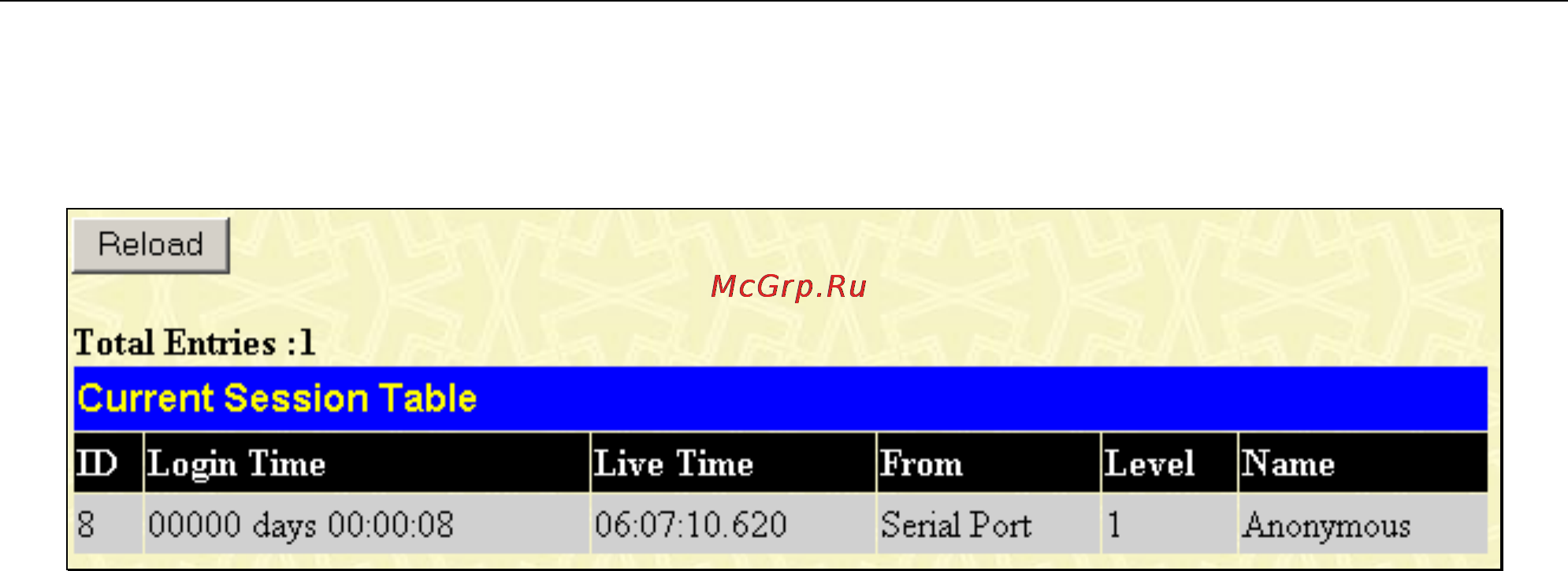

Figure 7- 24. Current Session Table window

178
