DGS-3212SR Stackable Gigabit Layer 2 Switch

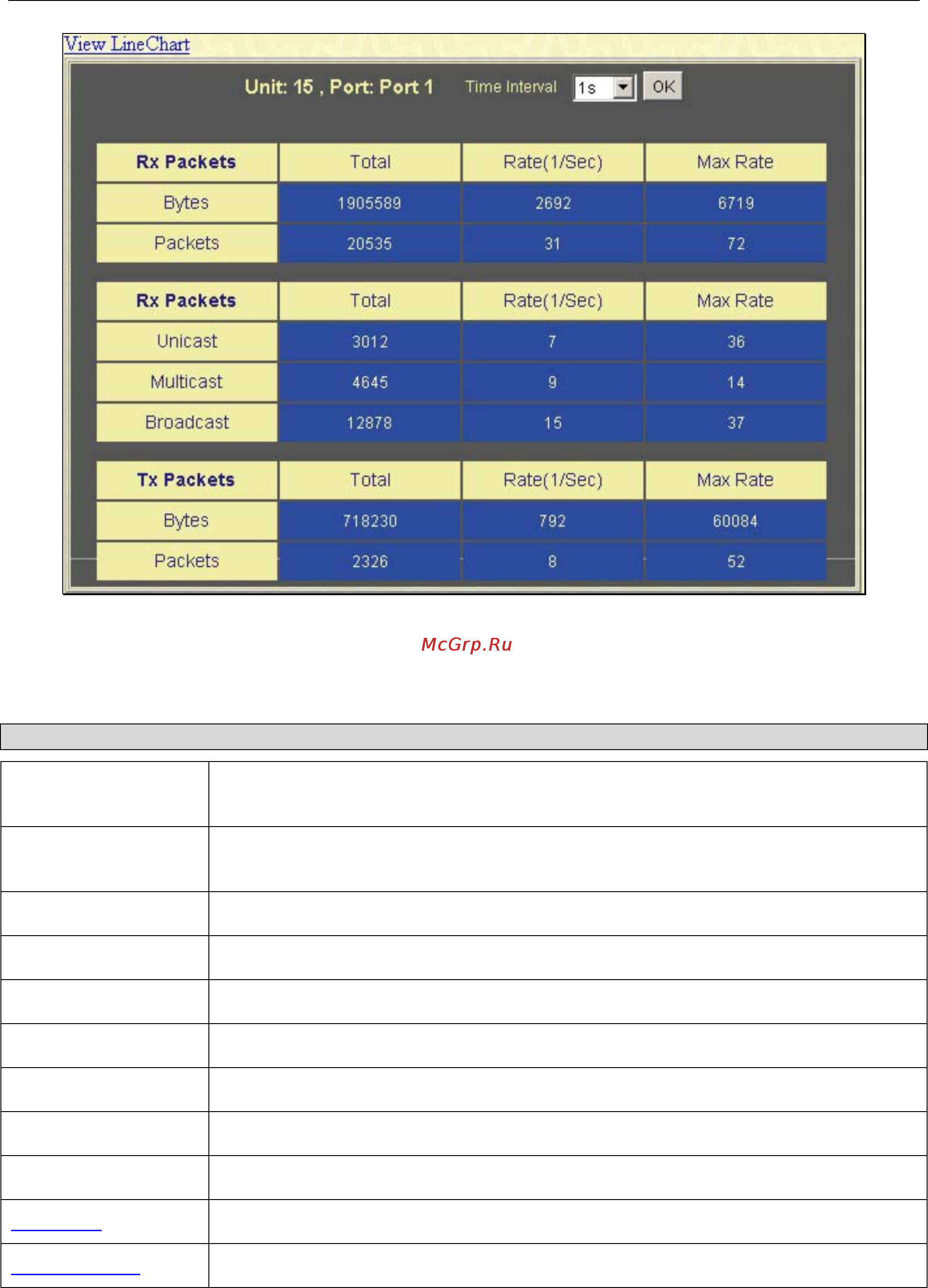

Figure 7- 7. Rx Packets Analysis (table for Bytes & Packets) window

Select the desired Switch using the Unit drop-down menu and the desired port using the Port drop-down menu. The Time

Interval field sets the interval at which the error statistics are updated.

The following field can be set:

Parameter Description

Time Interval <1s>

Select the desired setting between 1s and 60s, where "s" stands for seconds. The

default value is one second.

Record Number

<200>

Select number of times the Switch will be polled between 20 and 200. The default

value is 200.

Bytes

Counts the number of bytes received on the port.

Packets

Counts the number of packets received on the port.

Unicast

Counts the total number of good packets that were received by a unicast address.

Multicast

Counts the total number of good packets that were received by a multicast address.

Broadcast

Counts the total number of good packets that were received by a broadcast address.

Show/Hide

Check whether to display Bytes and Packets.

Clear

Clicking this button clears all statistics counters on this window.

View Table Clicking this button instructs the Switch to display a table rather than a line graph.

View Line Chart Clicking this button instructs the Switch to display a line graph rather than a table.
