DGS-3212SR Stackable Gigabit Layer 2 Switch

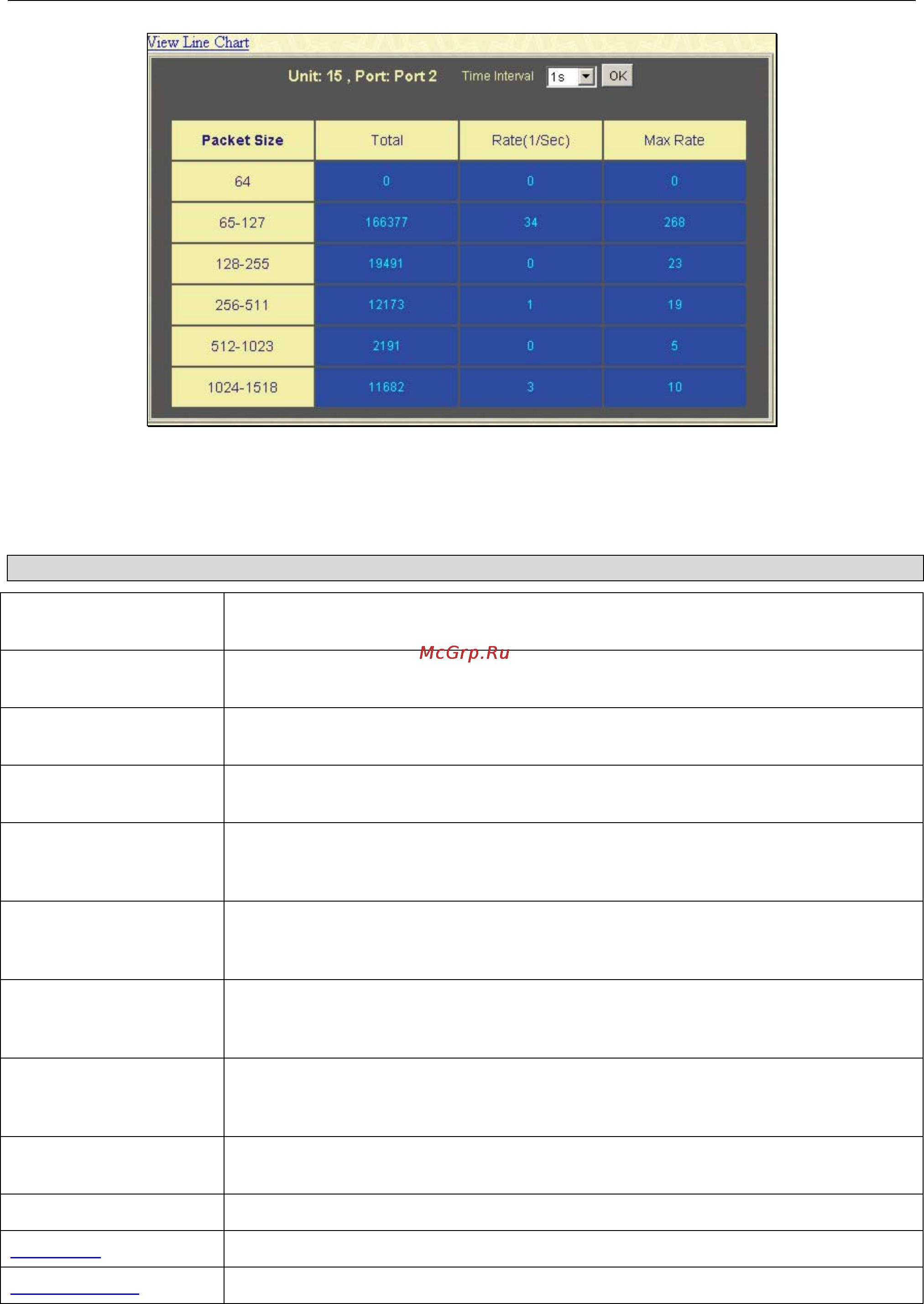

Figure 7- 17. Packet Size Analysis (table) window
Select the desired Switch using the Unit drop-down menu and the desired port using the Port drop-down menu. The Time
Interval field sets the interval at which the error statistics are updated.
The following field can be set:
Parameter Description
Time Interval <1s> Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number <200> Select number of times the Switch will be polled between 20 and 200. The default
value is 200.
64 The total number of packets (including bad packets) received that were 64 octets in
length (excluding framing bits but including FCS octets).
65-127 The total number of packets (including bad packets) received that were between 65
and 127 octets in length inclusive (excluding framing bits but including FCS octets).
128-255 The total number of packets (including bad packets) received that were between
128 and 255 octets in length inclusive (excluding framing bits but including FCS
octets).
256-511 The total number of packets (including bad packets) received that were between
256 and 511 octets in length inclusive (excluding framing bits but including FCS
octets).
512-1023 The total number of packets (including bad packets) received that were between
512 and 1023 octets in length inclusive (excluding framing bits but including FCS
octets).
1024-1518 The total number of packets (including bad packets) received that were between
1024 and 1518 octets in length inclusive (excluding framing bits but including FCS
octets).
Show/Hide Check whether or not to display 64, 65-127, 128-255, 256-511, 512-1023, and
1024-1518 packets received.
Clear
Clicking this button clears all statistics counters on this window.
View Table Clicking this button instructs the Switch to display a table rather than a line graph.
View Line Chart Clicking this button instructs the Switch to display a line graph rather than a table.
170
