14D-Link DIR-815 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link wireless router using the web-based conguration utility.
Web-based Conguration Utility

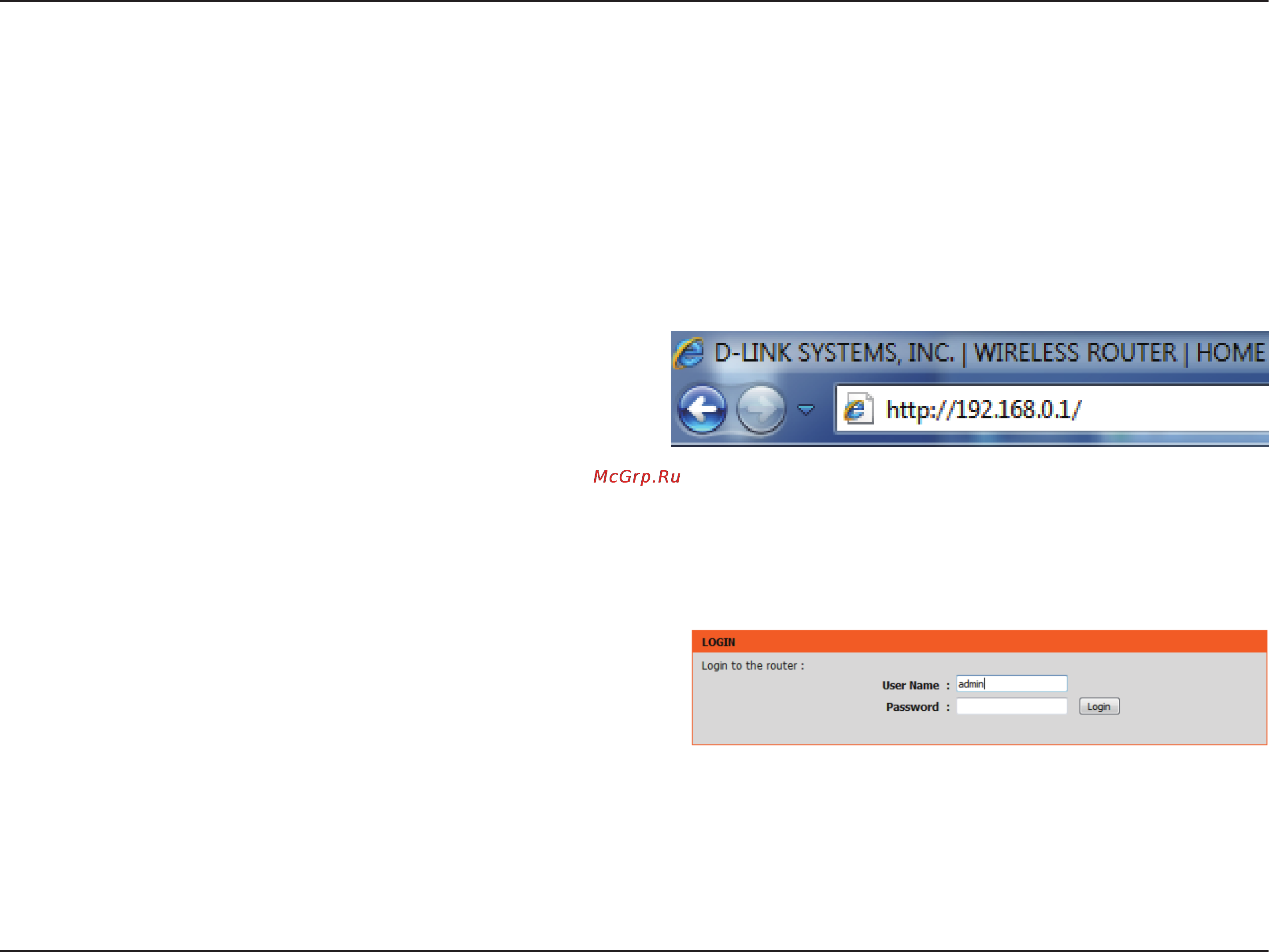

To access the conguration utility, open a web-browser such
as Internet Explorer and enter the IP address of the router
(192.168.0.1).
Enter Admin in the User Name eld. Leave the password blank
by default.
If you get a Page Cannot be Displayed error, please refer to the
Troubleshooting section for assistance.
